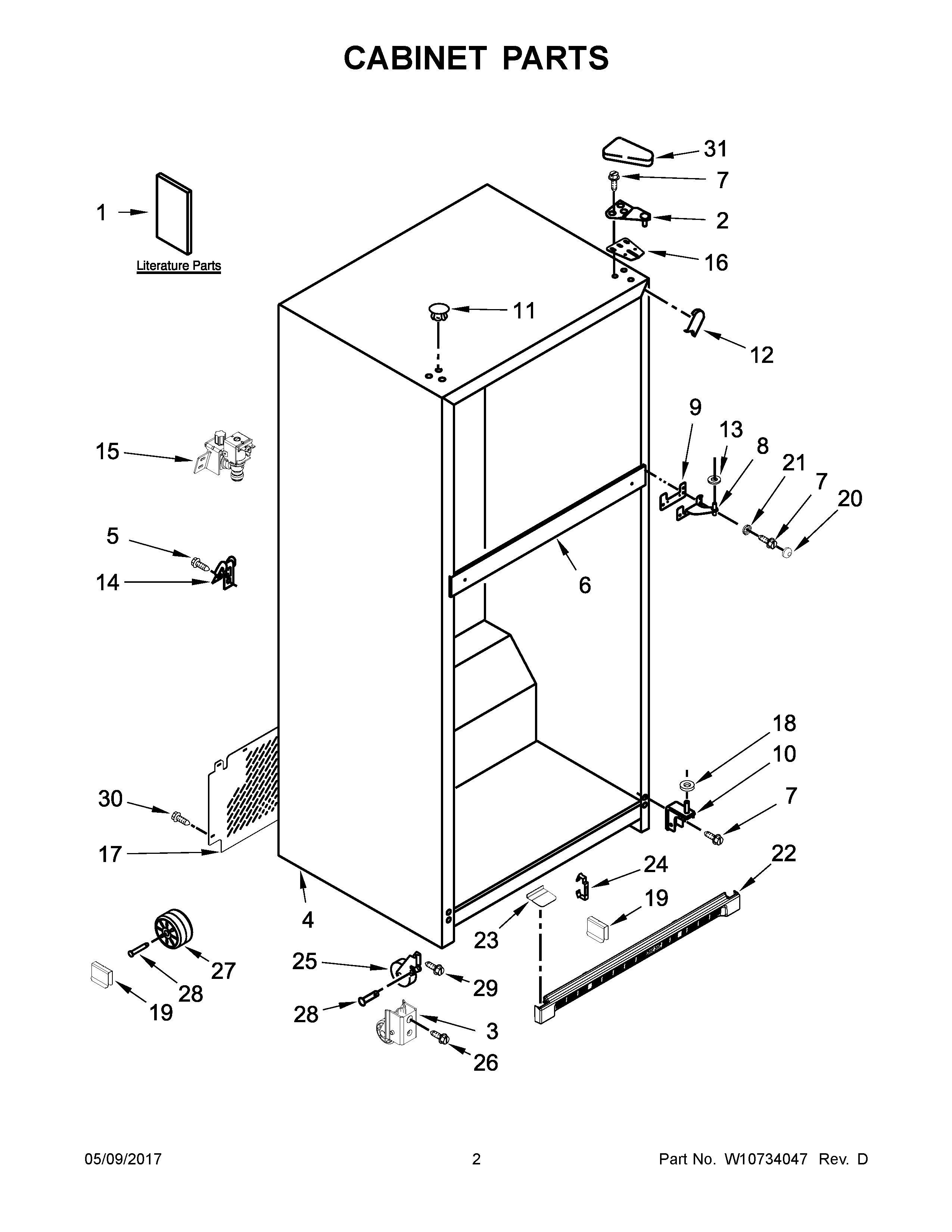

WRT311FZDT00 02 – CABINET PARTS

WRT311FZDT00 02 – CABINET PARTS

Written by

in

WRT311FZDT00 02 – CABINET PARTS

Products

Position	Product
1A	USE & CARE GUIDE
1B	ENERGY LABEL
1	SERVICE & WIRING SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	WP2254473 Whirlpool Refrigerator Door Hinge
11A	WPW10520305 Whirlpool Refrigerator Button Plug
11	WPW10520304 Whirlpool Refrigerator Button Plug
11C	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
11B	WPW10520306 Whirlpool Refrigerator Button Plug
12A	W11252732 Whirlpool Refrigerator Filler
12C	W10851579 Whirlpool Refrigerator Filler
12	WPW10283959 Whirlpool Refrigerator Filler
12B	W10283958 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	549193 Whirlpool Refrigerator Power Clamp
15	WPW10279909 Whirlpool Refrigerator Inlet Valve
16	W11169703 Whirlpool Refrigerator Shim
17	W11307290 Whirlpool Unit Cover
18	WP487576 Whirlpool Washer
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20B	W10679138 Whirlpool Screw Cap
20C	W10849198 Whirlpool Refrigerator Cap Screw
20A	W10853677 Whirlpool Refrigerator Screw Cap
20	W10846529 Whirlpool Refrigerator Screw Cap
21	W10847959 Whirlpool Refrigerator Washer
22B	W10592143 Whirlpool Refrigerator Grille
22	W10839426 Whirlpool Refrigerator Grille
22A	W10860799 Whirlpool Refrigerator Grille
22C	W10860791 Whirlpool Refrigerator Grille
23C	W10468611 Whirlpool Refrigerator Endcap
23B	W10468610 Whirlpool Endcap
23	W10600071 Whirlpool Refrigerator Endcap
23A	W10468609 Whirlpool Refrigerator End Cap
24	2254385 Whirlpool Refrigerator Clip
25	WP2166108 Whirlpool Refrigerator Cabinet Roller
26	BOLT
27	WPW10475495 Whirlpool Roller Assembly
28	W11594405 Whirlpool Axle
29	W10850698 Whirlpool Refrigerator Screw
30	WP488729 Whirlpool Refrigerator Door Screw
31C	W10853622 Whirlpool Refrigerator Cover
31A	WP2213363 Whirlpool Refrigerator Cover
31	WP2213360 Whirlpool Refrigerator Cover
31B	2213364 Whirlpool Refrigerator Cover
