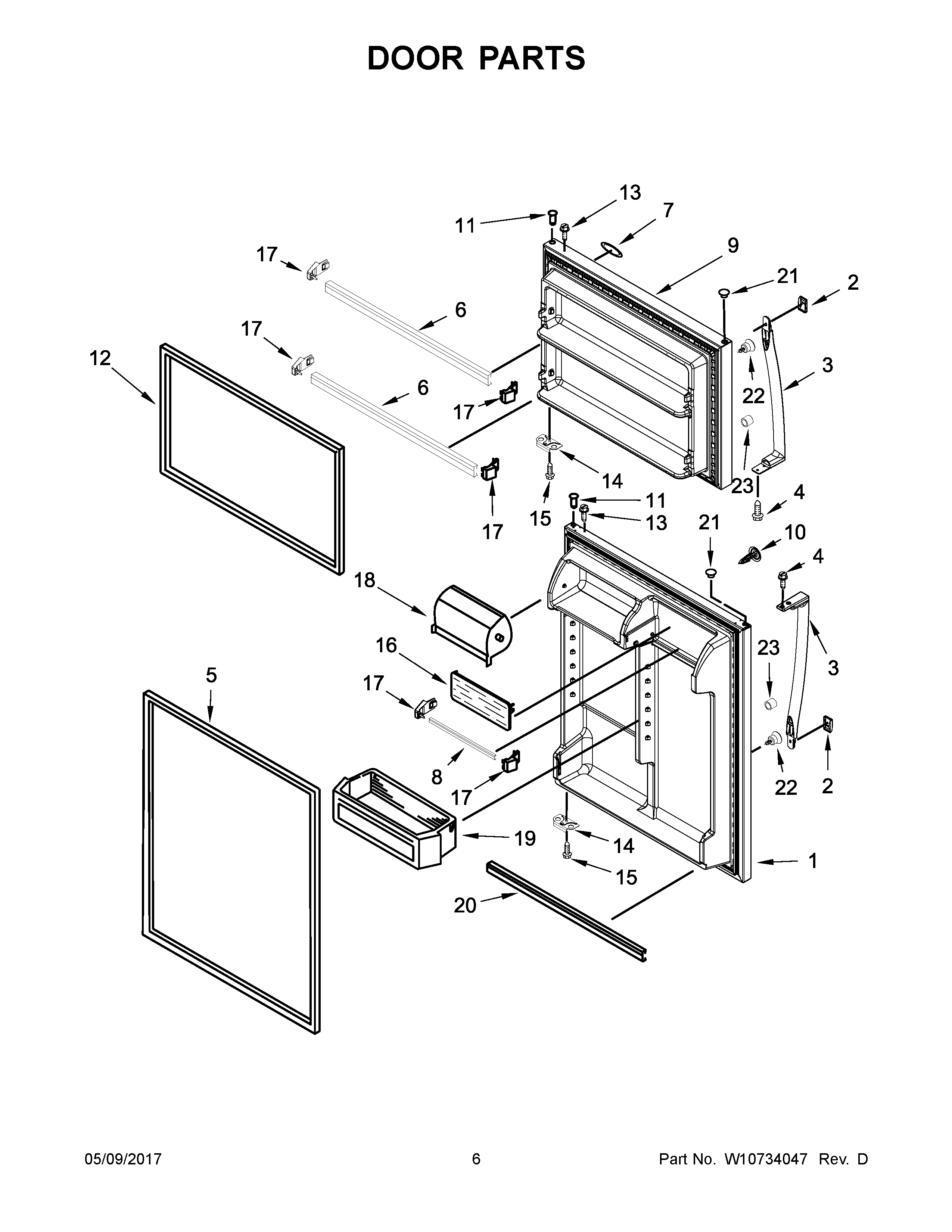

WRT311FZDT00 04 – DOOR PARTS

WRT311FZDT00 04 – DOOR PARTS

Written by

in

WRT311FZDT00 04 – DOOR PARTS

Products

Position	Product
NI	W10691128 Whirlpool Refrigerator Door Kit
NI	W11415957 Whirlpool Refrigerator Door Kit
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10676240 Whirlpool Refrigerator Door Kit
NI	W11416038 Whirlpool Refrigerator Door Kit
1A	W11023687 Whirlpool Refrigerator Door Assembly
1B	W11023688 Whirlpool Refrigerator Door Assembly
1C	LW10642551 Whirlpool Refrigerator Door Trim
1	W11023679 Whirlpool Refrigerator Door Assembly
2	WPW10672338 Whirlpool Handle Trim Cap
2B	W10672341 Whirlpool Refrigerator Cover
2A	W10838316 Whirlpool Refrigerator Cover
2C	ENDCAP-HDL
3B	W10859918 Whirlpool Refrigerator Handle
3	WPW10672333 Whirlpool Refrigerator White Door Handle
3A	WPW10672334 Whirlpool Refrigerator Handle
3C	W10806512 Whirlpool Refrigerator Door Handle Stainless
4	WP489357 Whirlpool Recessed Screw
5	W10860480 Whirlpool Refrigerator Door Gasket
5C	W10249195 Whirlpool Refrigerator Door Gasket
5B	2159061 Whirlpool Refrigerator Door Gasket
5A	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	W11596065 Whirlpool Refrigerator Door Trim
7A	W11178521 Whirlpool Dishwasher Nameplate
8	W11678258 Whirlpool Refrigerator Door Trim
9C	LW10642554 Whirlpool Refrigerator Door FIP
10	W10830984 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
10B	W10830981 Whirlpool Refrigerator Plug Handle
10C	W10830982 Whirlpool Handle Plug
11	WP2314293 Whirlpool Refrigerator Thimble
12A	2177310 Whirlpool Refrigerator Door Gasket
12B	WHITE DOOR GASKET-FIP
12	W10741118 Whirlpool Refrigerator Door Gasket
12C	W10249196 Whirlpool Refrigerator Gasket FIP
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP681249 Whirlpool Screw Assembly
16	WP2188236 Whirlpool Refrigerator Shelf Door
17	ENDCAP
18	W11617783 Whirlpool Refrigerator Door Compartment
19	W10803530 Whirlpool Refrigerator Cantilever Bin
20	W11606660 Whirlpool Refrigerator Door Trim
21C	PLUG, HINGE SLEEVE (GREY)
21A	WP2212651 Whirlpool Refrigerator Button Plug
21B	WP2212649 Whirlpool Refrigerator Button Plug
21	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22	WPW10170540 Whirlpool Screw
23	WPW10511911 Whirlpool Refrigerator Bushing
