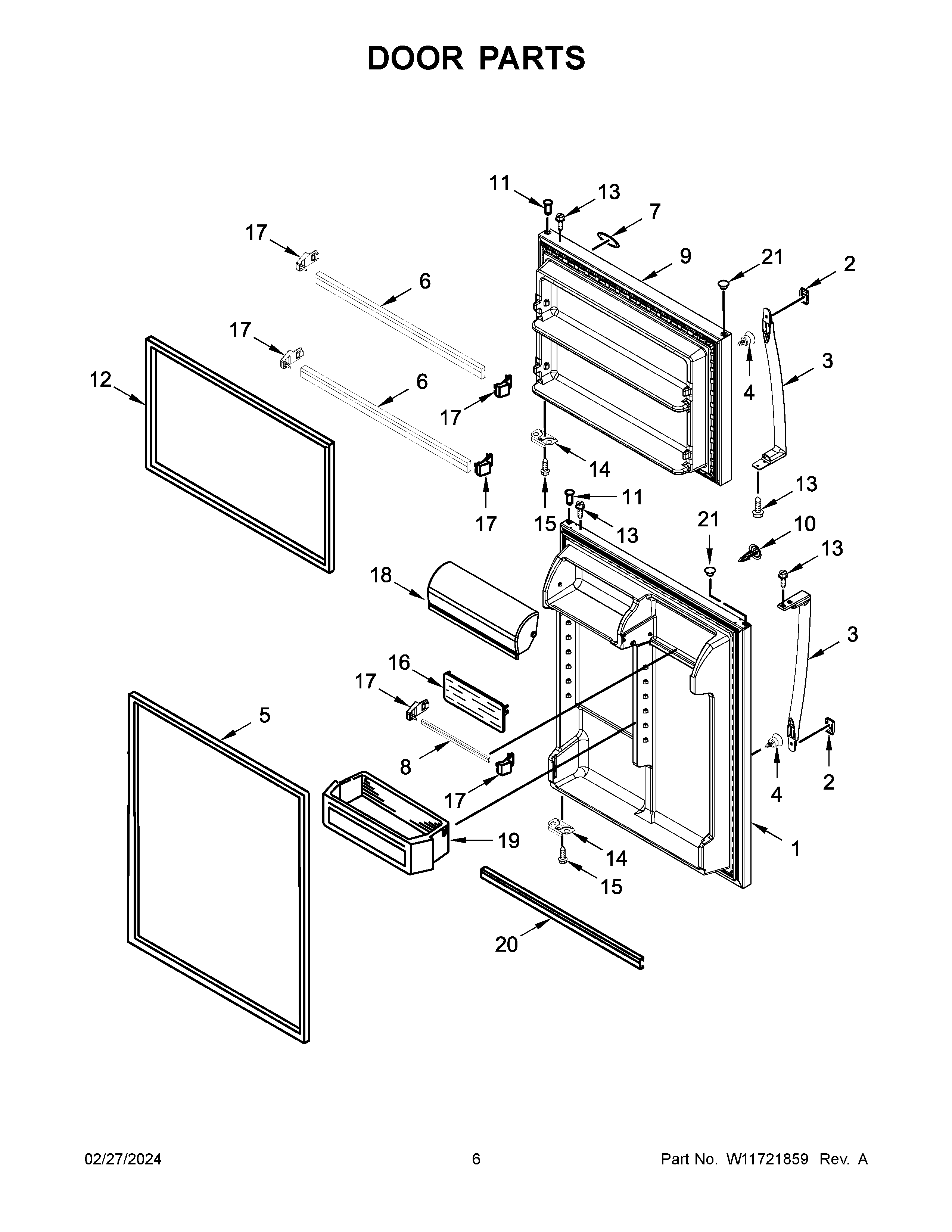

WRT311FZDW06 04 – DOOR PARTS

WRT311FZDW06 04 – DOOR PARTS

Written by

in

WRT311FZDW06 04 – DOOR PARTS

Products

PositionProduct
NIW11416038 Whirlpool Refrigerator Door Kit
NIFOLLOWING PARTS NOT ILLUSTRATED
1W11023679 Whirlpool Refrigerator Door Assembly
2WPW10672338 Whirlpool Handle Trim Cap
3WPW10672333 Whirlpool Refrigerator White Door Handle
4WP489357 Whirlpool Recessed Screw
5W10860480 Whirlpool Refrigerator Door Gasket
6W11596065 Whirlpool Refrigerator Door Trim
7W11178521 Whirlpool Dishwasher Nameplate
8W11678258 Whirlpool Refrigerator Door Trim
10W10830984 Whirlpool Handle Plug
11WP2314293 Whirlpool Refrigerator Thimble
12W10741118 Whirlpool Refrigerator Door Gasket
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP681249 Whirlpool Screw Assembly
16WP2188236 Whirlpool Refrigerator Shelf Door
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18W11617783 Whirlpool Refrigerator Door Compartment
19W10803530 Whirlpool Refrigerator Cantilever Bin
20W11606660 Whirlpool Refrigerator Door Trim
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
