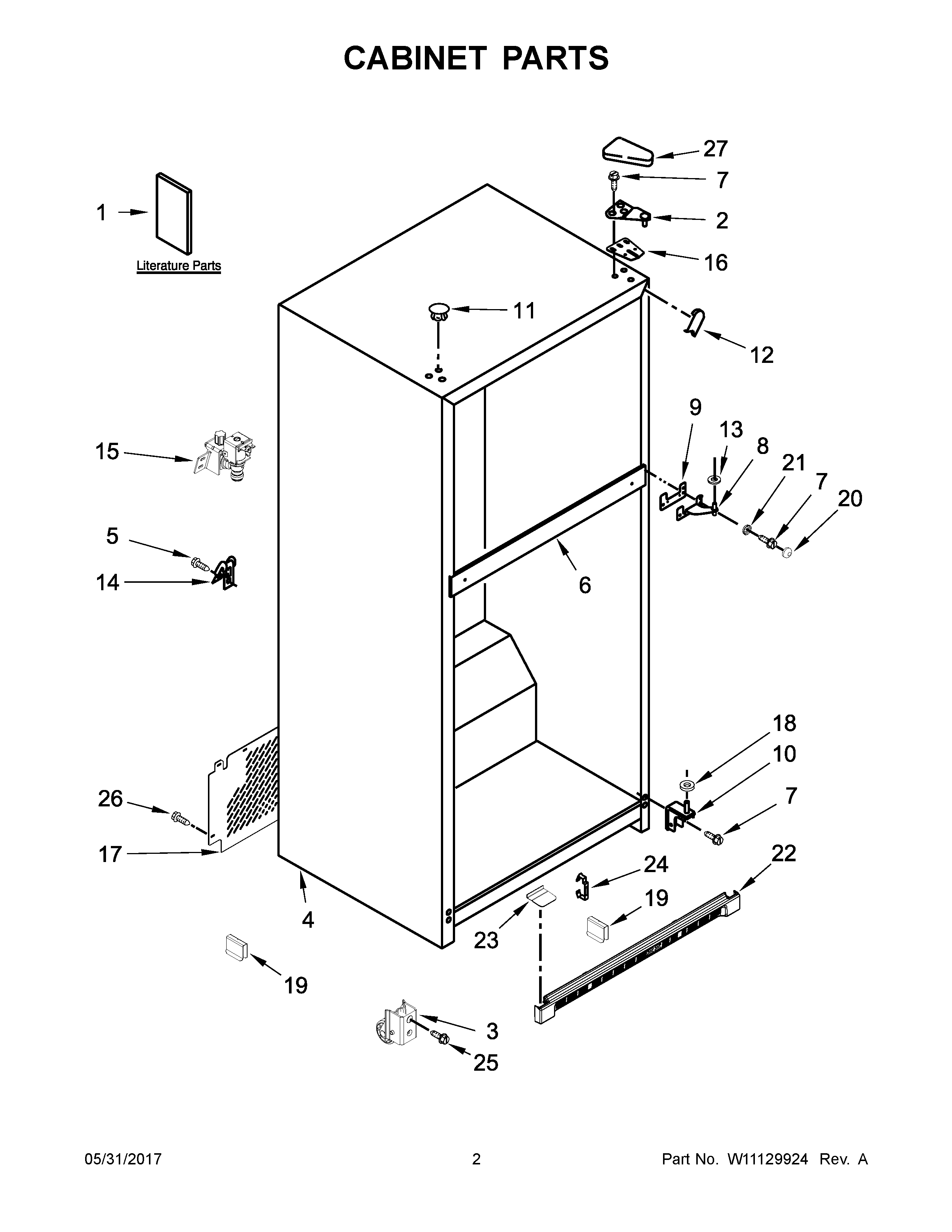

WRT311FZDZ00 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY LABEL
1A	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	W10849386 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	WP2254473 Whirlpool Refrigerator Door Hinge
11	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12	W10851579 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	549193 Whirlpool Refrigerator Power Clamp
15	WPW10279909 Whirlpool Refrigerator Inlet Valve
16	W11169703 Whirlpool Refrigerator Shim
17	W11307290 Whirlpool Unit Cover
18	WP487576 Whirlpool Washer
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10849198 Whirlpool Refrigerator Cap Screw
21	W10847959 Whirlpool Refrigerator Washer
22	W10860791 Whirlpool Refrigerator Grille
23	W10468611 Whirlpool Refrigerator Endcap
24	2254385 Whirlpool Refrigerator Clip
25	BOLT
26	WP488729 Whirlpool Refrigerator Door Screw
27	W10853622 Whirlpool Refrigerator Cover
