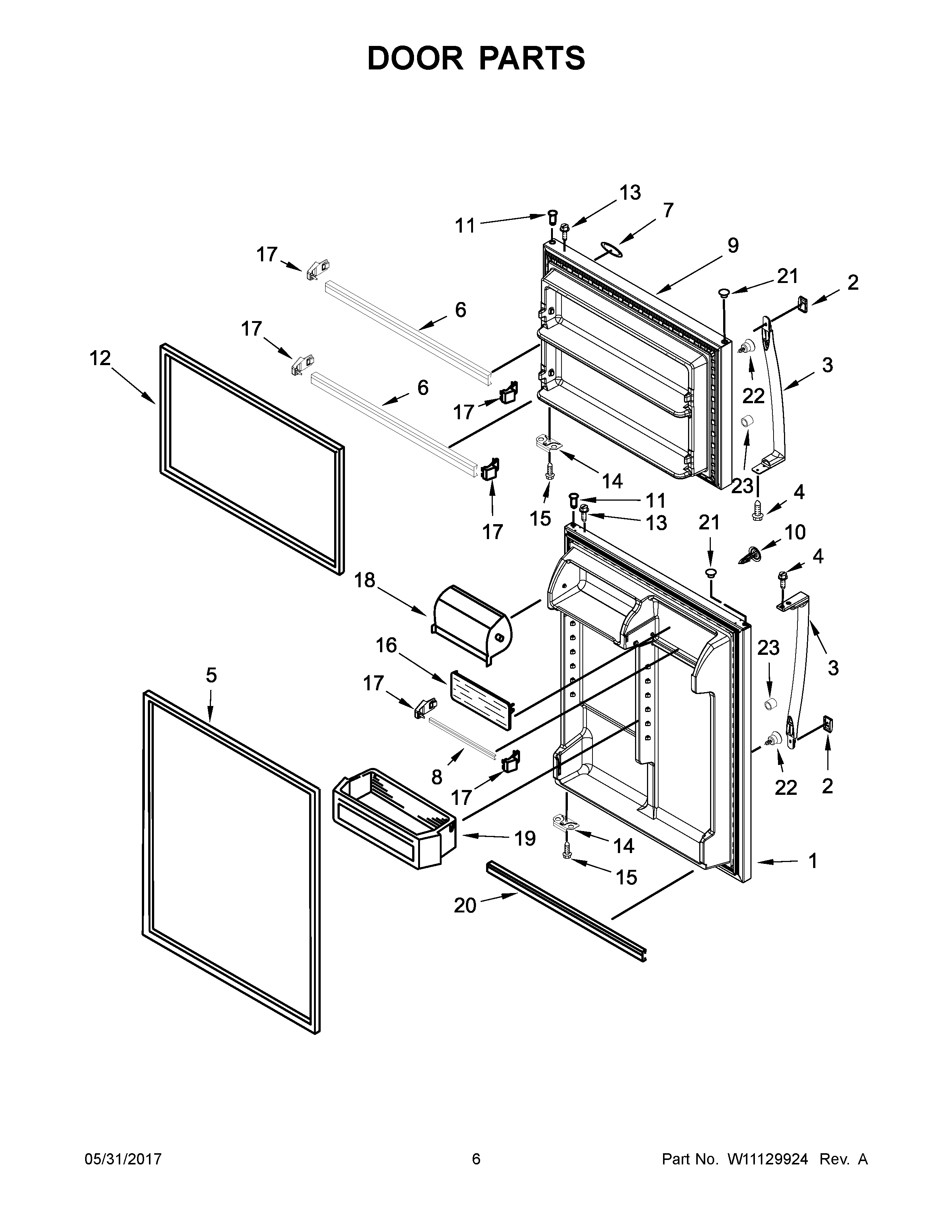

WRT311FZDZ00 04 – DOOR PARTS

Products

Position	Product
NI	W10676240 Whirlpool Refrigerator Door Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	LW10916047 Whirlpool Refrigerator Door-FIP
2	ENDCAP-HDL
3	W10806512 Whirlpool Refrigerator Door Handle Stainless
4	WP489357 Whirlpool Recessed Screw
5	W10249195 Whirlpool Refrigerator Door Gasket
6	W11596065 Whirlpool Refrigerator Door Trim
7	W11178521 Whirlpool Dishwasher Nameplate
8	W11678258 Whirlpool Refrigerator Door Trim
9	LW10916048 Whirlpool Refrigerator DOR FIP
10	W10830982 Whirlpool Handle Plug
11	WP2314293 Whirlpool Refrigerator Thimble
12	W10249196 Whirlpool Refrigerator Gasket FIP
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP681249 Whirlpool Screw Assembly
16	WP2188236 Whirlpool Refrigerator Shelf Door
17	ENDCAP
18	W11617783 Whirlpool Refrigerator Door Compartment
19	W10803530 Whirlpool Refrigerator Cantilever Bin
20	W11606660 Whirlpool Refrigerator Door Trim
21	PLUG, HINGE SLEEVE (GREY)
22	WPW10170540 Whirlpool Screw
23	WPW10511911 Whirlpool Refrigerator Bushing
