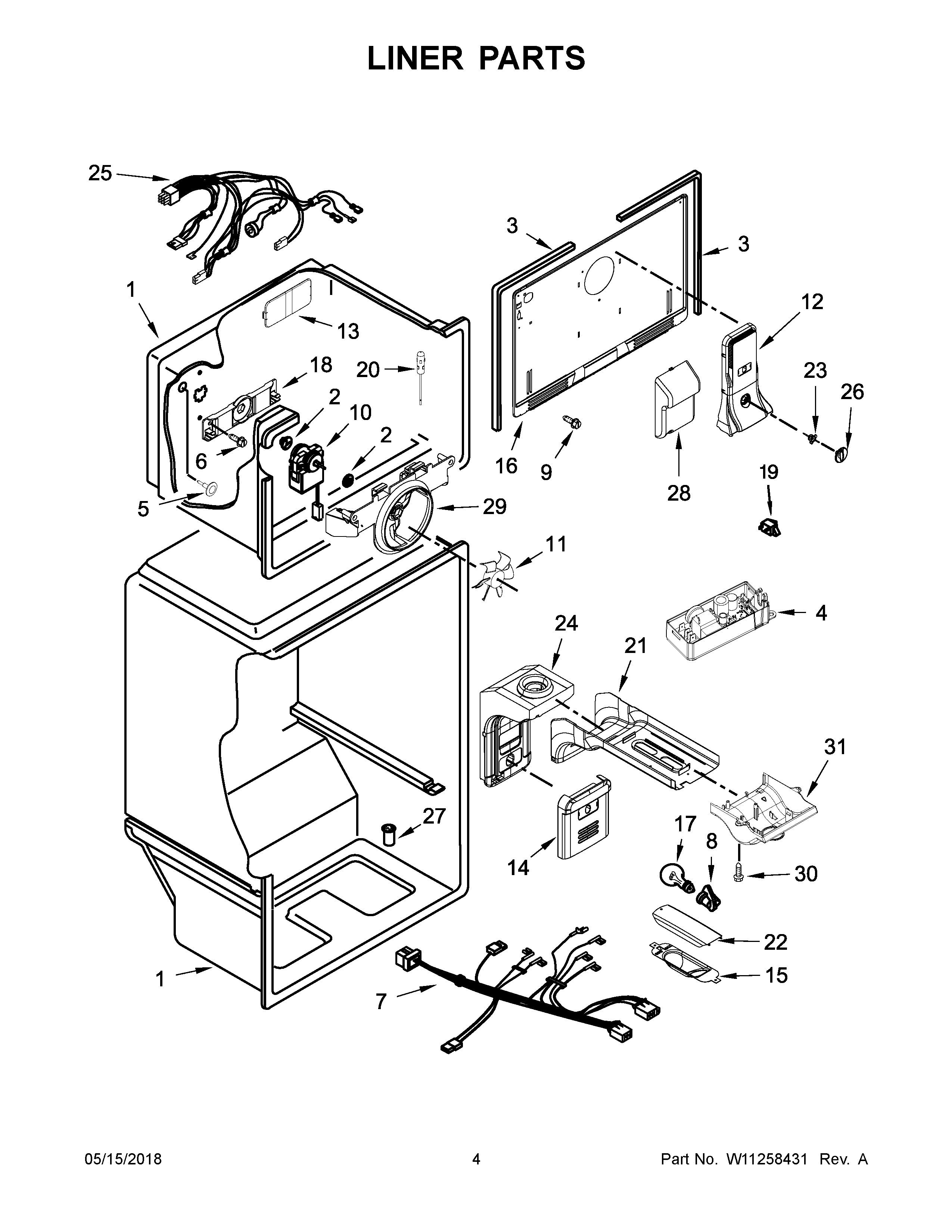

WRT311FZDZ01 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	W11443921 Whirlpool Refrigerator Electronic Control Board
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11441783 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10142283 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W11126274 Whirlpool Refrigerator Air Tower
13	W10336009 Whirlpool Refrigerator Cover
14	W10609502 Whirlpool Refrigerator Cover
15	W10300161 Whirlpool Refrigerator Shield
16	W10616173 Whirlpool Refrigerator Evaporator Cover
17	W11216993 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	WPW10384183 Whirlpool Thermistor
21	WPW10305175 Whirlpool Refrigerator Cover
22	WPW10348614 Whirlpool Refrigerator Cover
23	W11206112 Whirlpool Refrigerator Control
24	W11188815 Whirlpool Refrigerator Diffuser
25	W11399425 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	WP2210509 Whirlpool Refrigerator Tub Valve
28	WPW10339203 Whirlpool Refrigerator Tube Cover
29	W10850162 Whirlpool Refrigerator Orifice
30	WP489174 Whirlpool Refrigerator Screw
31	W10841668 Whirlpool Refrigerator Control Box
