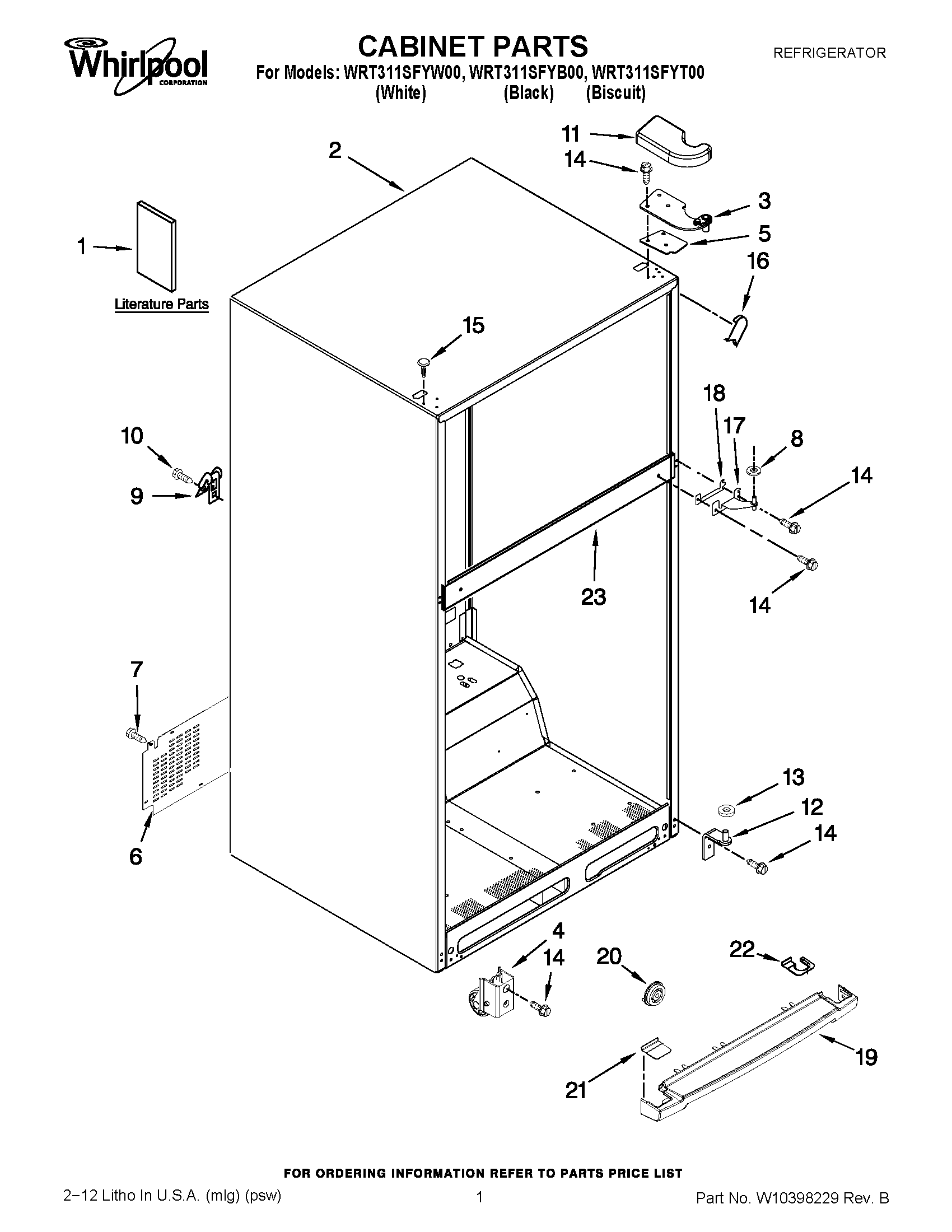

WRT311SFYT00 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	ENERGY LABEL
1	SERVICE AND WIRING SHEET
3	WPW10300065 Whirlpool Refrigerator Door Hinge
4	W10849386 Whirlpool Refrigerator CAB Roller
5	W10883637 Whirlpool Refrigerator Hinge Shim
6	WPW10384414 Whirlpool Refrigerator Unit Cover
7	WP489464 Whirlpool Refrigerator Screw
8	WP489467 Whirlpool Hinge Shim
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489442 Whirlpool Refrigerator Screw
11	W10331560A Whirlpool Refrigerator Cover
11	W10353949A Whirlpool Refrigerator Cover
11	W10353945A Whirlpool Refrigerator Cover
11	W10353948A Whirlpool Refrigerator Cover
11	COVER, HINGE (BISCUIT (RIGHT))
11	COVER, HINGE (WHITE LS)
12	WP2254473 Whirlpool Refrigerator Door Hinge
13	WP487576 Whirlpool Washer
14	WP489497 Whirlpool Screw
15	Hole Plug (6) (Biscuit)
15	WP2183998 Whirlpool Refrigerator Button Plug
15	WP2151652 Whirlpool Refrigerator Button Plug
16	W10283958 Whirlpool Refrigerator Filler
16	W11252732 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
17	WP2254618 Whirlpool Center Door Hinge
18	WP2183852 Whirlpool Refrigerator Shim
19	WPW10353939 Whirlpool Refrigerator Grille
19	GRILLE (BISCUIT)
19	WPW10300129 Whirlpool Refrigerator Grille
20	W10331226 Whirlpool Refrigerator Clip
21	COVER, TOE GRILLE (BISCUIT)
21	W10353930 Whirlpool Refrigerator Grill End Cap
21	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
22	WPL W10381060
22	W10381059 Whirlpool Refrigerator End Cap – GRL
22	COVER, TOE GRILLE (HINGE SIDE) (BISCUIT)
23	CABINET (NOT A SERVICEABLE PART)
