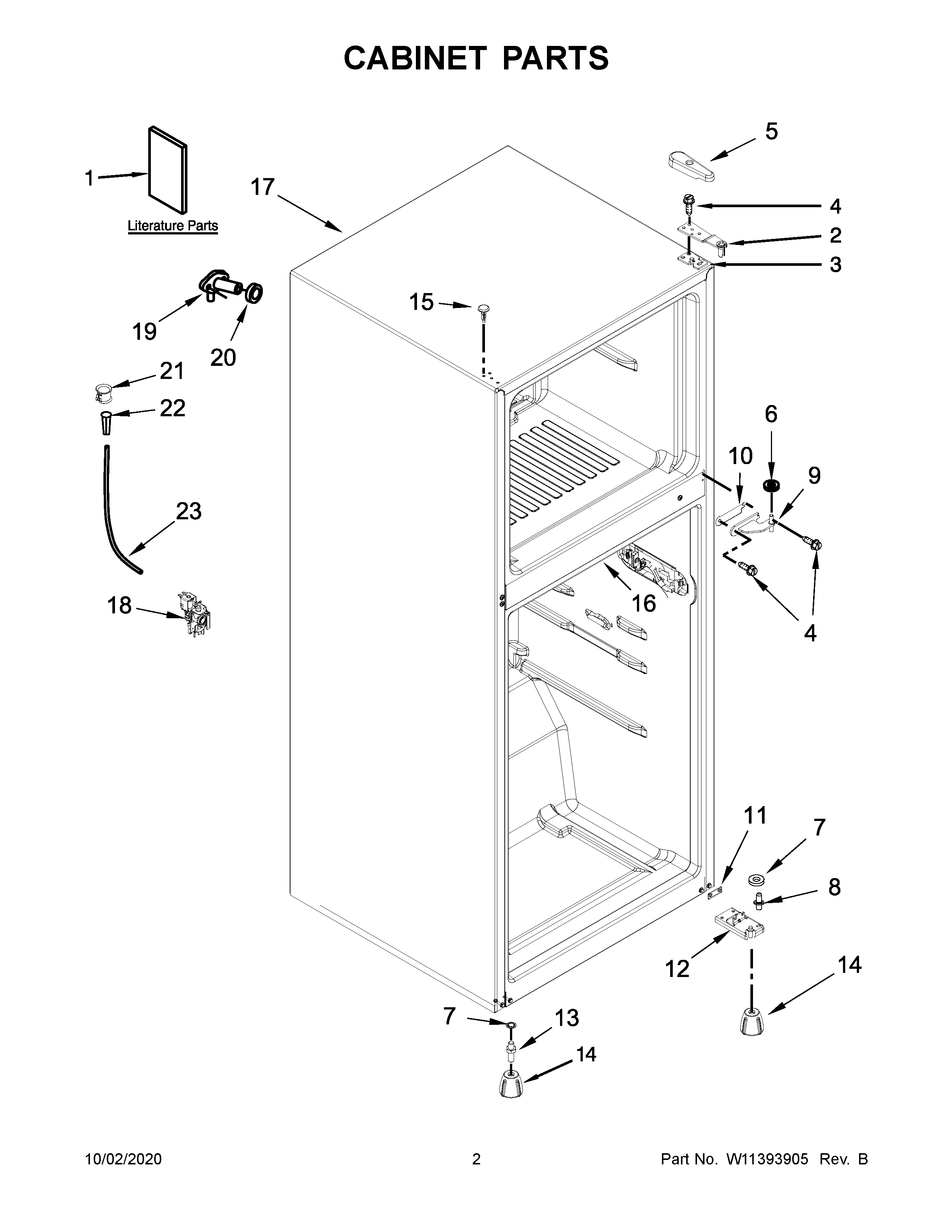

WRT312CZJW00 02 – CABINET PARTS

WRT312CZJW00 02 – CABINET PARTS

Written by

in

WRT312CZJW00 02 – CABINET PARTS

Products

PositionProduct
1SERVICE AND WIRING SHEET
1AUSE AND CARE GUIDE
1BENERGY GUIDE
2W11191773 Whirlpool Refrigerator Door Hinge
3W10399311 Whirlpool Refrigerator Hinge Shim
4WP489497 Whirlpool Screw
5ACOVER, HINGE (BLACK)
5W11266756 Whirlpool Cover
5BCOVER
6WP487576 Whirlpool Washer
7WP489467 Whirlpool Hinge Shim
8W11678964 Whirlpool Hinge Pin
9W11173998 Whirlpool Refrigerator Door Hinge
10W11269182 Whirlpool Refrigerator Hinge Shim
11W11269192 Whirlpool Refrigerator Hinge Shim
12W11580021 Whirlpool Refrigerator Door Hinge
13SCREW, LEVELER
14W11545335 Whirlpool Refrigerator Leveling Leg
15BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
15WPW10520304 Whirlpool Refrigerator Button Plug
15AWPW10520305 Whirlpool Refrigerator Button Plug
17CABINET (NOT A SERVICEABLE PART)
18VALVE-REFR INLET
19W11700599 Whirlpool Fitting
20WP1106508 Whirlpool Refrigerator Gasket
21W10861184 Whirlpool Refrigerator Clamp
22W10823511 Whirlpool Refrigerator Water Tube
234387491 Whirlpool Refrigerator Insert
