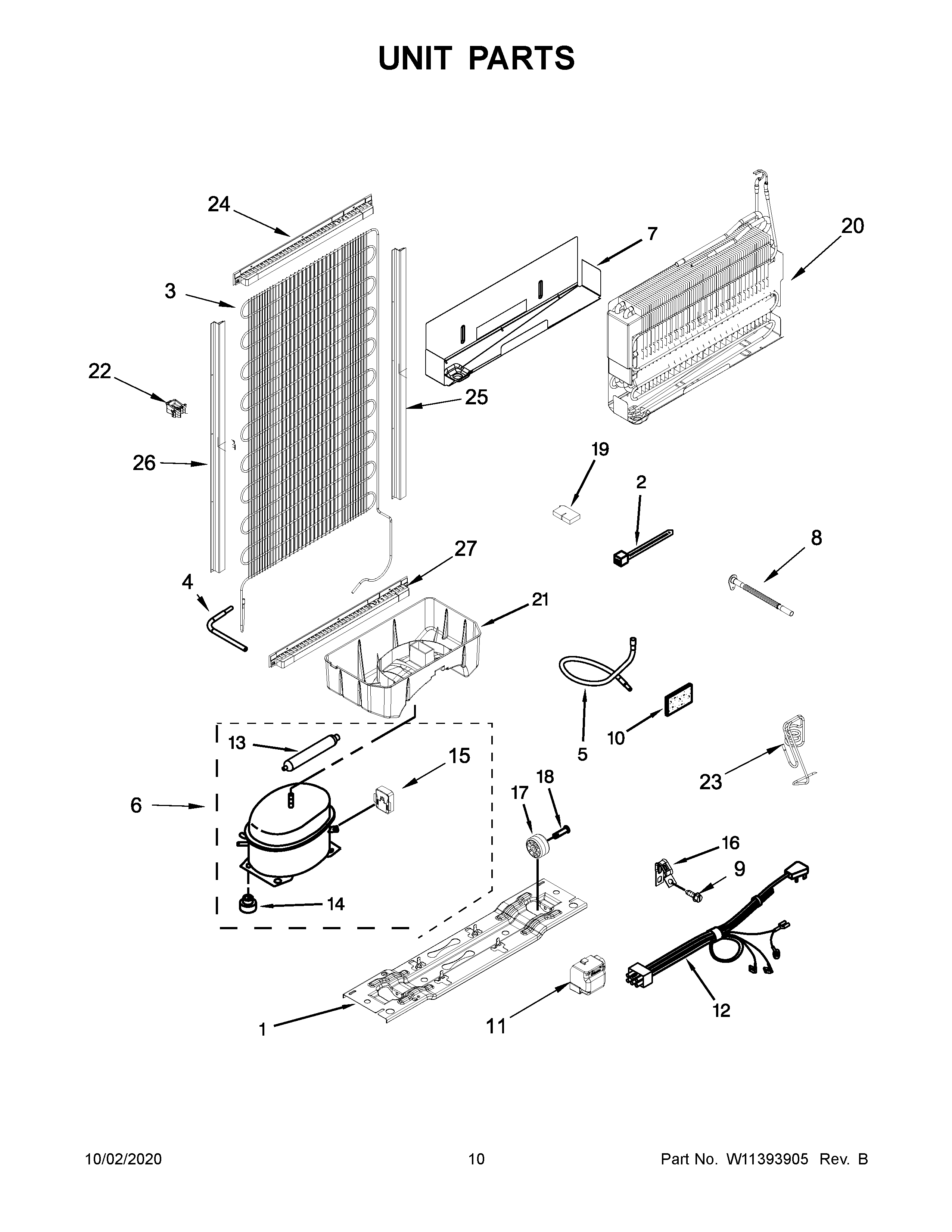

WRT312CZJW00 06 – UNIT PARTS

WRT312CZJW00 06 – UNIT PARTS

Written by

in

WRT312CZJW00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	W11506623 Whirlpool Refrigerator Coupler
NI	W11225184 Whirlpool Refrigerator Tube
NI	W11504419 Whirlpool Microwave Coupler
NI	W11504448 Whirlpool Refrigerator Coupler
NI	W11504420 Whirlpool Microwave Coupler
NI	W11504449 Whirlpool Refrigerator Coupler
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11504418 Whirlpool Refrigerator LOKRING 8MM to 7MM Reducer
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10378704 Whirlpool Refrigerator Support
2	WPW10339879 Whirlpool Wire Tie
3	W11368894 Whirlpool Refrigerator Condenser
4	TUBE, PROCESS
5	W11368892 Whirlpool Tube
6	W11370578 Whirlpool Refrigerator Compressor
7	W11179127 Whirlpool Refrigerator Shield
8	W11512414 Whirlpool Refrigerator Extension
9	WP489442 Whirlpool Refrigerator Screw
10	W11553819 Whirlpool Refrigerator Insulation
11	W11342284 Whirlpool Terminal Cover
12	W11248029 Whirlpool Refrigerator Power Cord
13	W11490399 Whirlpool Microwave Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11368891 Whirlpool Refrigerator Inverter Box
16	W11234470 Whirlpool Refrigerator Clamp
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20	W11368877 Whirlpool Microwave Evaporator Assembly
21	TRAY
22	WP326020544 Whirlpool Refrigerator Support
23	COIL, DISCHARGE
24	CONDENSER, TOP PROTECTION
25	CONDENSER, SIDE PROTECTION (RIGHT)
26	CONDENSER SIDE PROTECTION (LEFT)
27	CONDENSER, BOTTOM PROTECTION
