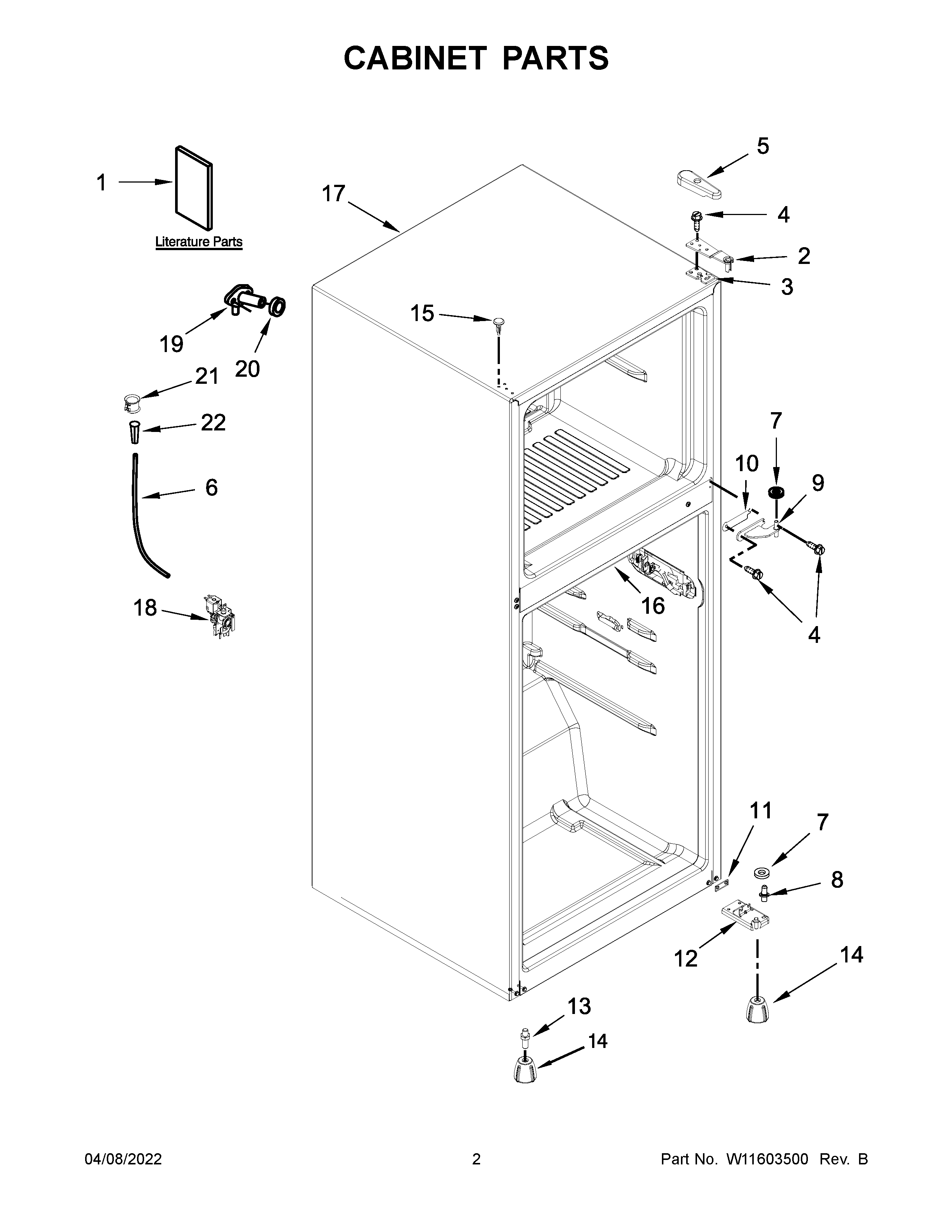

WRT313CZLB00 02 – CABINET PARTS

WRT313CZLB00 02 – CABINET PARTS

Written by

in

WRT313CZLB00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AUSE AND CARE GUIDE
1TECH SHEET
2W11191773 Whirlpool Refrigerator Door Hinge
3W10399311 Whirlpool Refrigerator Hinge Shim
4WP489497 Whirlpool Screw
5HINGE COVER (WHITE)
5BCOVER
5AHINGE COVER (BLACK)
6W10823511 Whirlpool Refrigerator Water Tube
7WP489467 Whirlpool Hinge Shim
8W11678964 Whirlpool Hinge Pin
9W11173998 Whirlpool Refrigerator Door Hinge
10W11269182 Whirlpool Refrigerator Hinge Shim
11W11269192 Whirlpool Refrigerator Hinge Shim
12W11580021 Whirlpool Refrigerator Door Hinge
13SCREW, LEVELER
14W11545335 Whirlpool Refrigerator Leveling Leg
15BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
15WPW10520304 Whirlpool Refrigerator Button Plug
15AWPW10520305 Whirlpool Refrigerator Button Plug
17CABINET (NOT A SERVICEABLE PART)
18VALVE-REFR INLET
19W11700599 Whirlpool Fitting
20WP1106508 Whirlpool Refrigerator Gasket
21W10861184 Whirlpool Refrigerator Clamp
224387491 Whirlpool Refrigerator Insert
