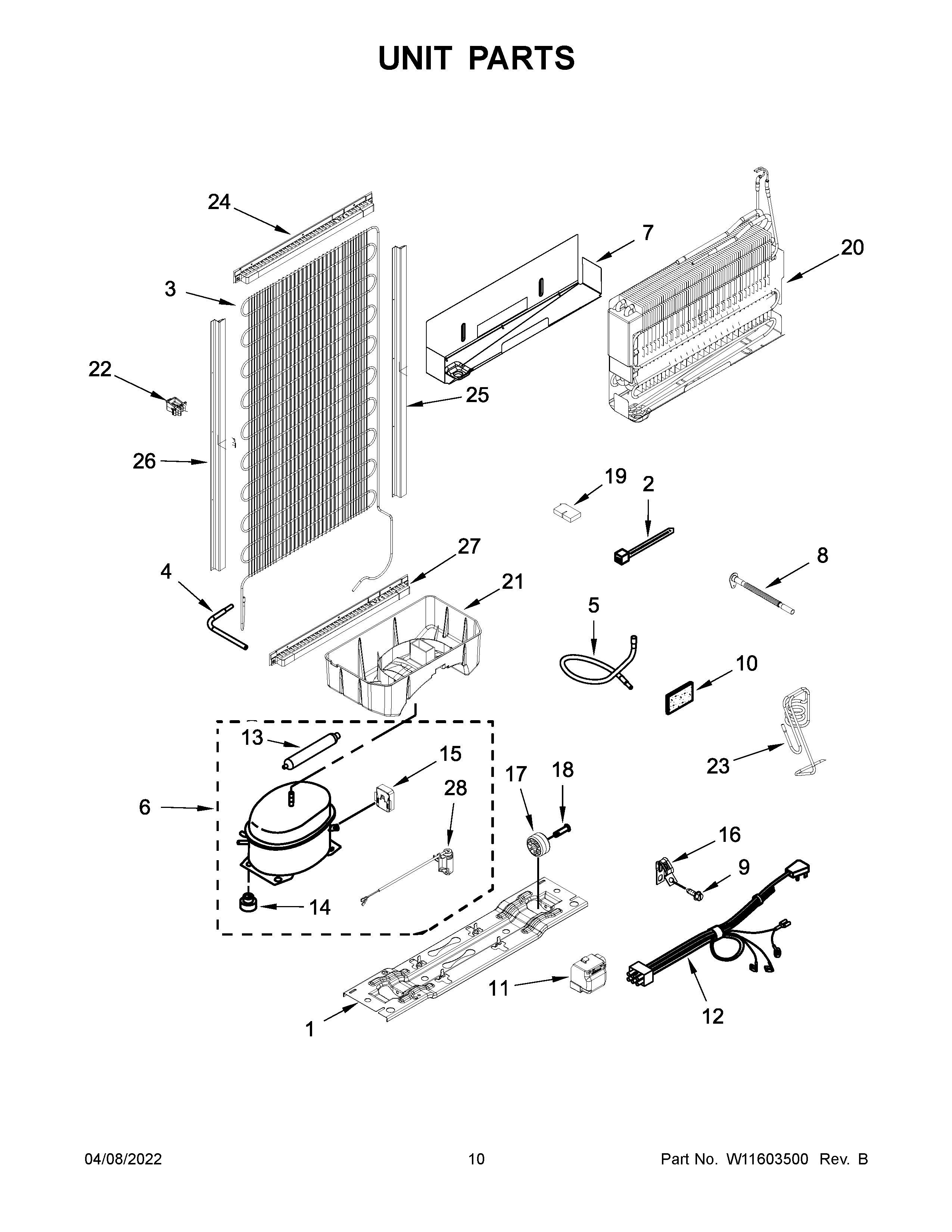

WRT313CZLW00 06 – UNIT PARTS

WRT313CZLW00 06 – UNIT PARTS

Written by

in

WRT313CZLW00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10378704 Whirlpool Refrigerator Support
2	WPW10339879 Whirlpool Wire Tie
3A	W11504445 Whirlpool Refrigerator Coupler
3	W11368894 Whirlpool Refrigerator Condenser
4	W11661102 Whirlpool Tube
5	TUBE
6D	W11506635 Whirlpool Refrigerator Valve Coupler
6B	W11504431 Whirlpool Microwave Coupler
6C	W11504416 Whirlpool Refrigerator Coupler
6A	W11504415 Whirlpool Refrigerator Coupler
6	W11370574 Whirlpool Refrigerator Compressor
7	W11179127 Whirlpool Refrigerator Shield
8	W11547140 Whirlpool Refrigerator Extension
9	WP489442 Whirlpool Refrigerator Screw
10	W11553819 Whirlpool Refrigerator Insulation
11	W11342284 Whirlpool Terminal Cover
12	W11248029 Whirlpool Refrigerator Power Cord
13	W11109499 Whirlpool Refrigerator Tube
13A	W11506623 Whirlpool Refrigerator Coupler
13B	W11504448 Whirlpool Refrigerator Coupler
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11643623 Whirlpool Device Start
16	W11234470 Whirlpool Refrigerator Clamp
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20	W11368877 Whirlpool Microwave Evaporator Assembly
20C	W11506620 Whirlpool Refrigerator Coupler
20A	W11504419 Whirlpool Microwave Coupler
20B	W11225184 Whirlpool Refrigerator Tube
20D	W11504449 Whirlpool Refrigerator Coupler
21	W11559685 Whirlpool Refrigerator Tray
22	WP326020544 Whirlpool Refrigerator Support
23	W11528684 Whirlpool Tube Assembly
24	CONDENSER, TOP PROTECTION
25	CONDENSER, SIDE PROTECTION (RIGHT)
26	CONDENSER SIDE PROTECTION (LEFT)
27	CONDENSER, BOTTOM PROTECTION
28	W11652060 Whirlpool Capacitor
