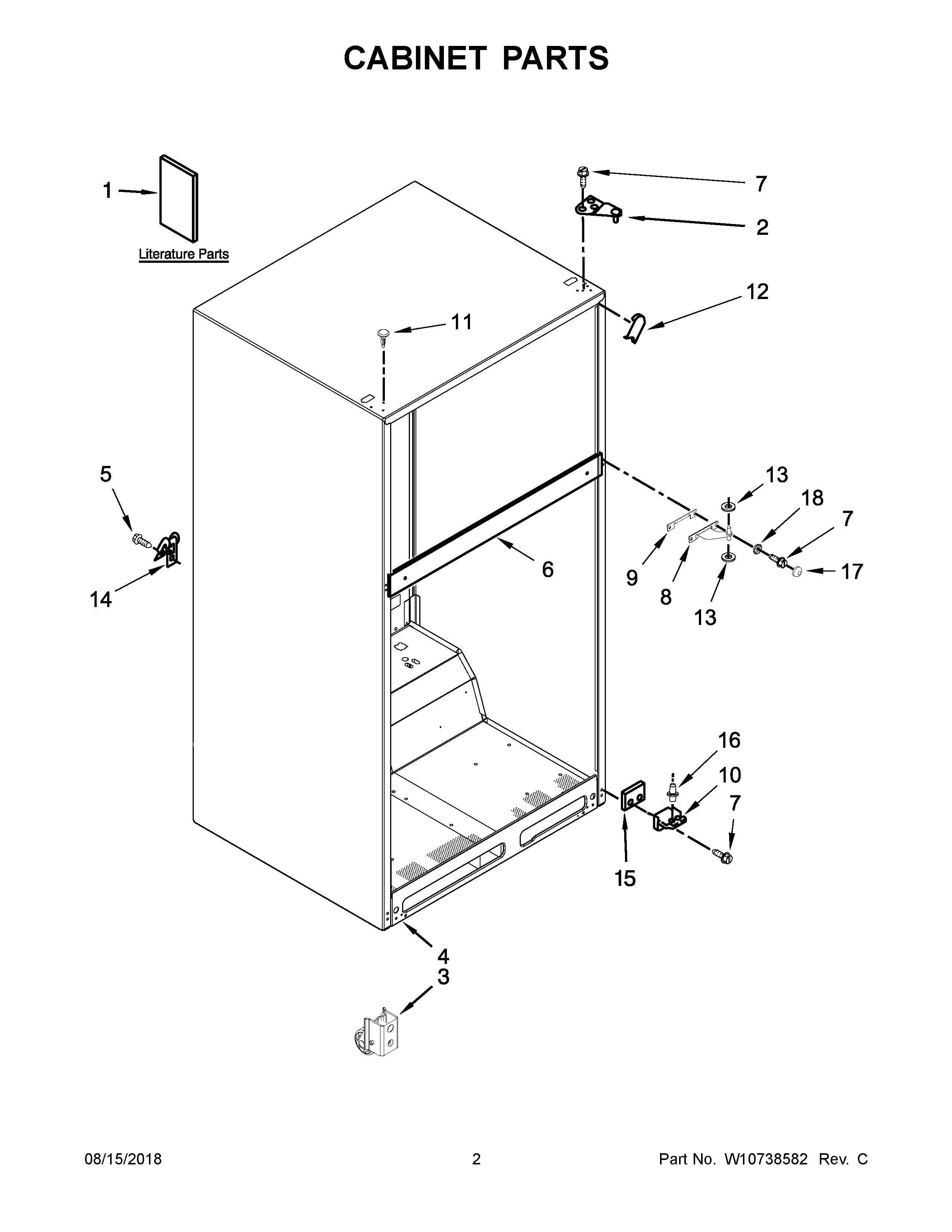

WRT314TFDB00 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE AND CARE GUIDE
1	SERVICE & WIRING SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
9A	2215385 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WPW10520304 Whirlpool Refrigerator Button Plug
11A	WPW10520305 Whirlpool Refrigerator Button Plug
12A	W11500943 Whirlpool Refrigerator Filler
12	W10859322 Whirlpool Refrigerator Filler
13	WP487802 Whirlpool Refrigerator Washer
14	549193 Whirlpool Refrigerator Power Clamp
15	WP2201567 Whirlpool Hinge Shim
16	W11026307 Whirlpool Refrigerator Hinge Pin
17A	W10853677 Whirlpool Refrigerator Screw Cap
17	W10846529 Whirlpool Refrigerator Screw Cap
18	W10847959 Whirlpool Refrigerator Washer
