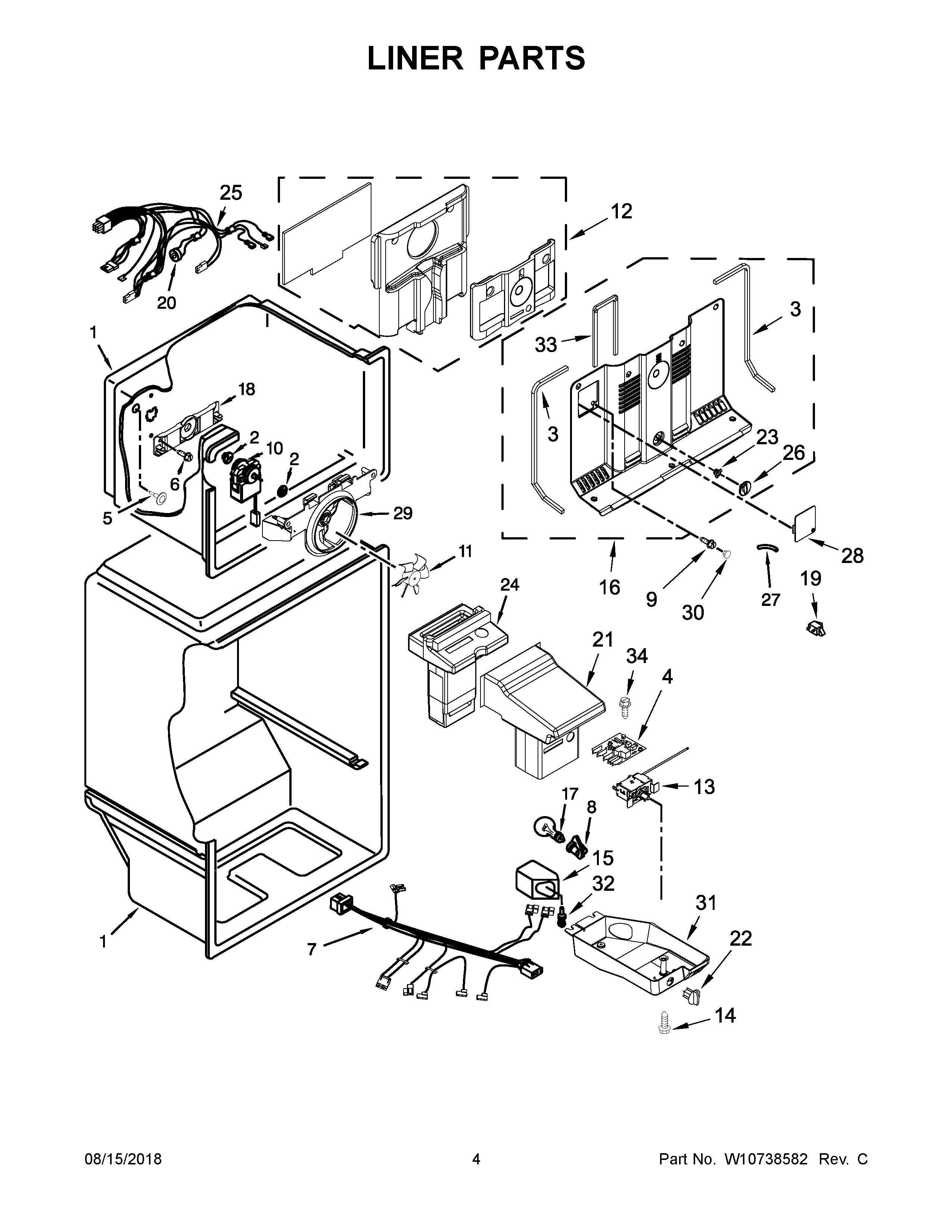

WRT314TFDB00 03 – LINER PARTS

WRT314TFDB00 03 – LINER PARTS

Written by

in

WRT314TFDB00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10579698 Whirlpool Refrigerator Gasket
44388931 Whirlpool Defrost Timer
5WP941839 Whirlpool Refrigerator Button Plug
6WP488163 Whirlpool Refrigerator Screw
7W10578836 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9W10720456 Whirlpool Refrigerator Screw
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10666603 Whirlpool Refrigerator Air Duct
13WPW10511937 Whirlpool Thermostat Control
14WP489174 Whirlpool Refrigerator Screw
15W11034434 Whirlpool Refrigerator Light Lens
16W10573325 Whirlpool Refrigerator Evaporator Cover
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
182254454 Whirlpool Refrigerator Bracket
19W11384469 Whirlpool Door Switch
20WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
21W11208347 Whirlpool Refrigerator Air Duct
22WP2202885 Whirlpool Refrigerator Thermal Knob
23W10169456 Whirlpool Refrigerator Control
24W11199204 Whirlpool Refrigerator Diffuser
25HARNS-WIRE
26W11026417 Whirlpool Refrigerator Air Damper
27WP2196003 Whirlpool Refrigerator Bar Riser
28W10636223 Whirlpool Refrigerator Cover
29W10850162 Whirlpool Refrigerator Orifice
30W10854527 Whirlpool Refrigerator Cover
31W10648656 Whirlpool Refrigerator Control Box
32939962 Whirlpool Refrigerator Rivet
33W10579707 Whirlpool Refrigerator Gasket
34WP487353 Whirlpool Refrigerator Screw
