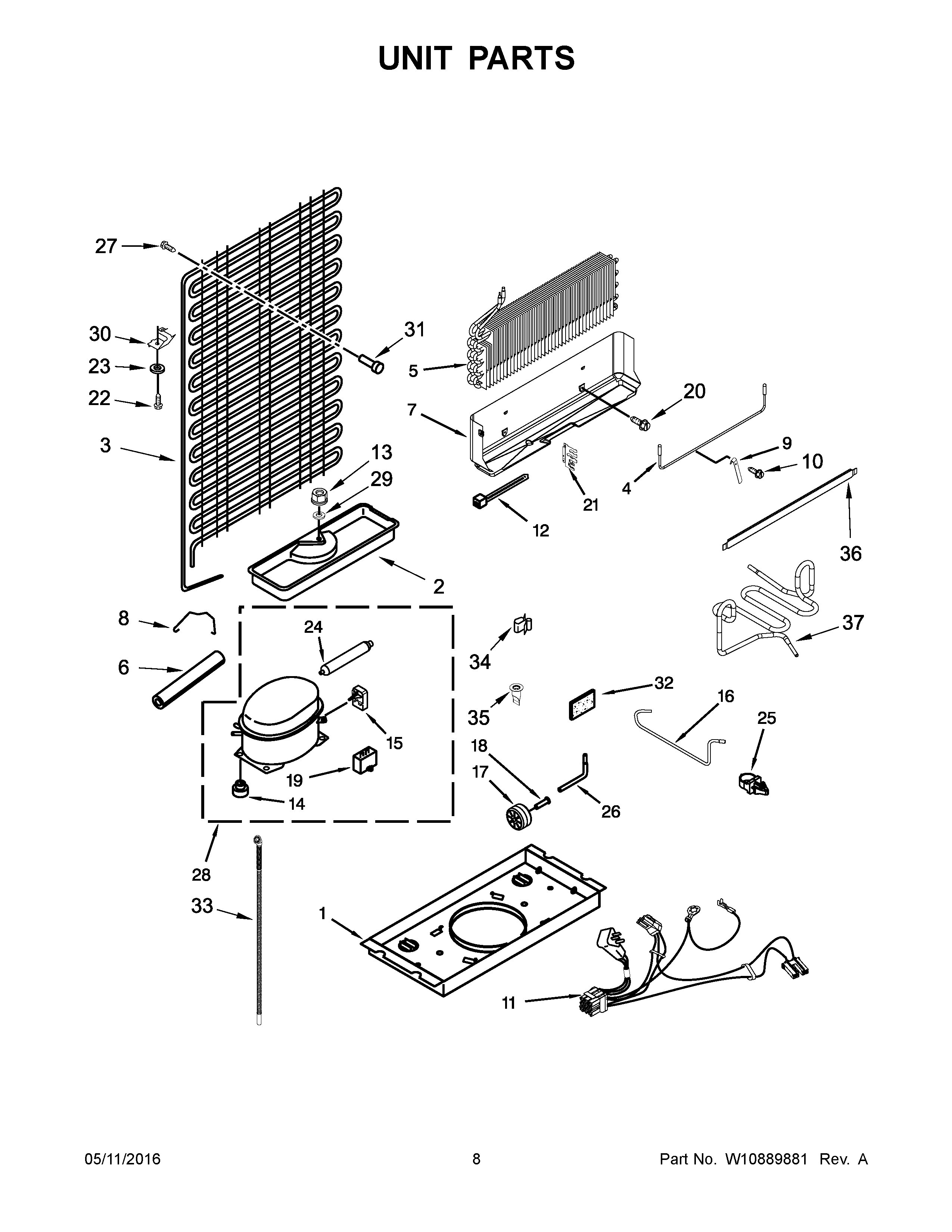

WRT314TFDW01 05 – UNIT PARTS

WRT314TFDW01 05 – UNIT PARTS

Written by

in

WRT314TFDW01 05 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
2	EVAPORATOR TRAY
3	WPW10219348 Whirlpool Refrigerator Condenser
4	W11220371 Whirlpool Refrigerator Heater
5	W10836706 Whirlpool Refrigerator Evaporator
6	SLEEVE
7	W10570572 Whirlpool Refrigerator Shield
8	W11661170 Whirlpool Clip
9	W10856574 Whirlpool Refrigerator Heat Probe
10	WP489478 Whirlpool Refrigerator Screw
11	W11238425 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	285002 Whirlpool Nut
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	W10608276 Whirlpool Refrigerator Tube
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	SCREW
21	W10314197 Whirlpool Refrigerator Bracket
22	WP489442 Whirlpool Refrigerator Screw
23	8526417 Whirlpool Washer
24	W10843121 Whirlpool Refrigerator Tube
25	2219077 Whirlpool Refrigerator Clip
26	W11676464 Whirlpool Tube
27	Screw
28	WPW10507886 Whirlpool Refrigerator Compressor
29	WP487802 Whirlpool Refrigerator Washer
30	4386951 Whirlpool Refrigerator Clip
31	2258452 Whirlpool Refrigerator Spacer
32	W11553819 Whirlpool Refrigerator Insulation
33	W10286975 Whirlpool Refrigerator Drain Tube
34	W10812038 Whirlpool Refrigerator Clip
35	W11190084 Whirlpool Refrigerator Drain Tube
36	W10300902 Whirlpool Refrigerator Cover
37	W10609247 Whirlpool Refrigerator Tube
