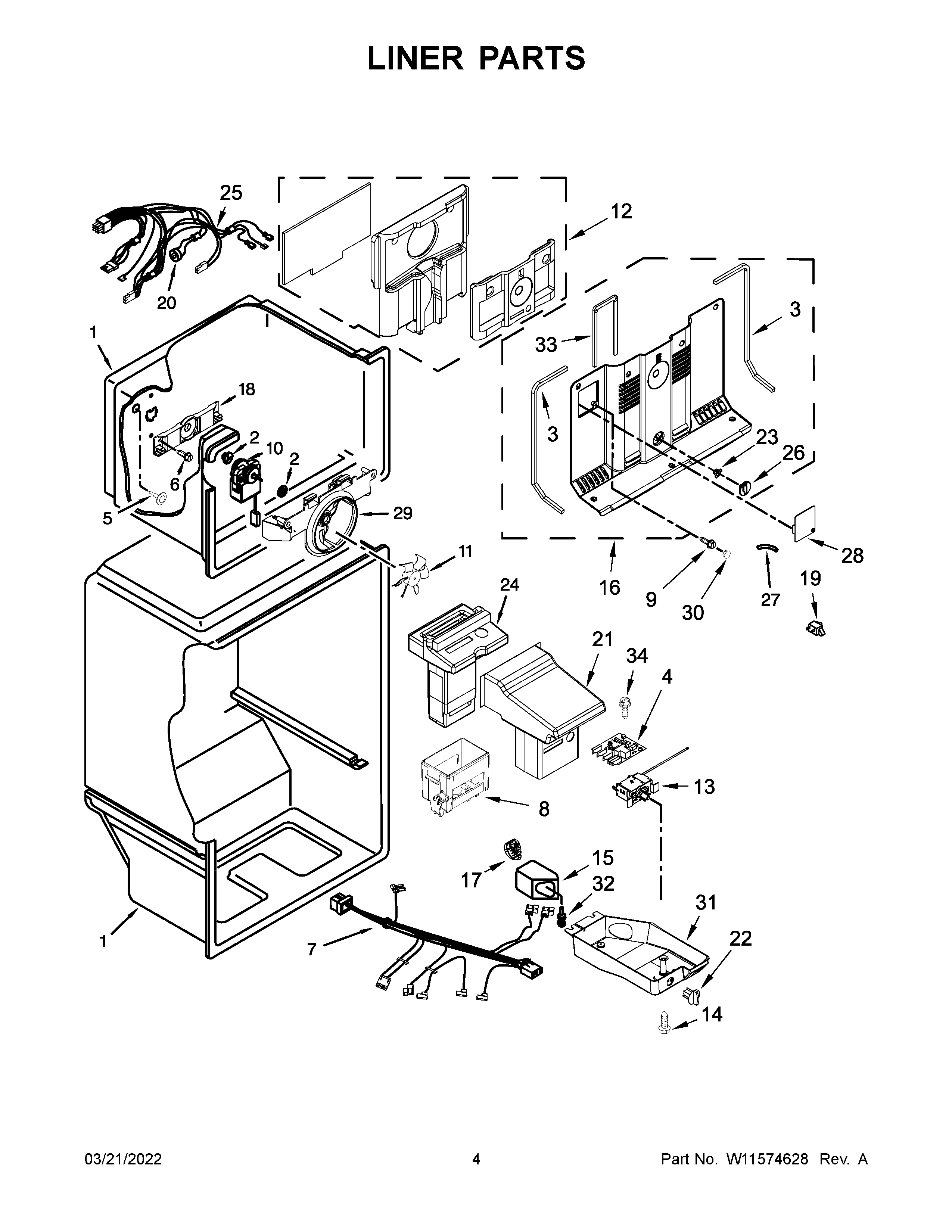

WRT314TFDW03 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10579698 Whirlpool Refrigerator Gasket
4	W11577965 Whirlpool Defrost Timer
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11404458 Whirlpool Wire Harness
8	W10570480 Whirlpool Cover
9	W10720456 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10666603 Whirlpool Refrigerator Air Duct
13	W11577966 Whirlpool Thermostat
14	WP489174 Whirlpool Refrigerator Screw
15	W11034434 Whirlpool Refrigerator Light Lens
16	W10573325 Whirlpool Refrigerator Evaporator Cover
17	W11577968 Whirlpool Refrigerator LED Module
18	2254454 Whirlpool Refrigerator Bracket
19	W11123941 Whirlpool Refrigerator Switch
20	BI-METAL DEFROST (NOT SERVICED)
21	W11208347 Whirlpool Refrigerator Air Duct
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	W10169456 Whirlpool Refrigerator Control
24	W11199204 Whirlpool Refrigerator Diffuser
25	W11577969 Whirlpool Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	WP2196003 Whirlpool Refrigerator Bar Riser
28	W11341627 Whirlpool Cover
29	W10850162 Whirlpool Refrigerator Orifice
30	W10854527 Whirlpool Refrigerator Cover
31	W10648656 Whirlpool Refrigerator Control Box
32	939962 Whirlpool Refrigerator Rivet
33	W10579707 Whirlpool Refrigerator Gasket
34	WP487353 Whirlpool Refrigerator Screw
