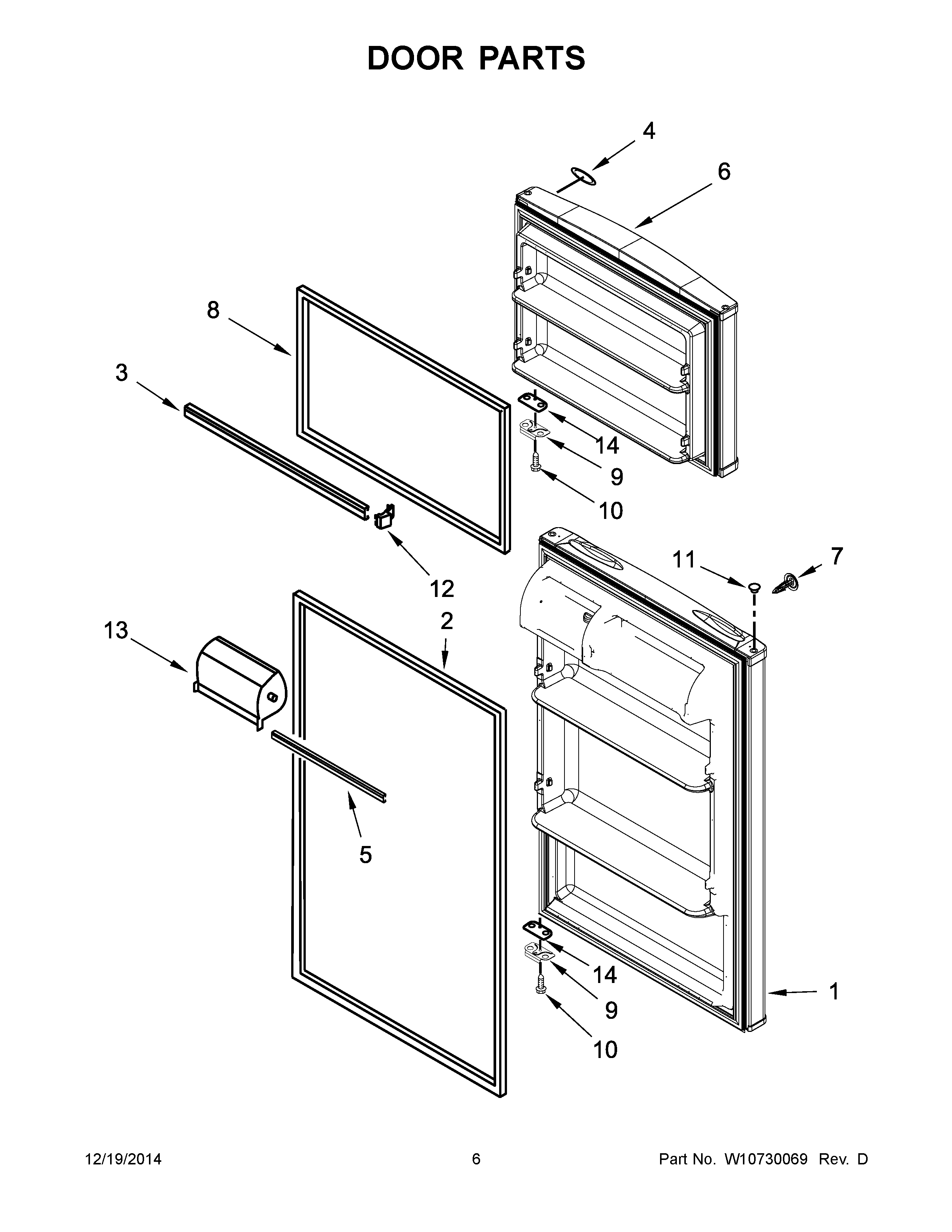

WRT316SFDM00 04 – DOOR PARTS
Written by
in
WRT316SFDM00 04 – DOOR PARTS
Products
Position
Product
1B
LW10681318 Whirlpool Refrigerator External Door
1A
LW10657316 Whirlpool Refrigerator DOR-FIP
1
LW10657163 Whirlpool Refrigerator Door Assembly, White
2
2319266W Whirlpool Refrigerator FIP Gasket
2A
2319266B Whirlpool Refrigerator Gasket FIP
2B
W10244874 Whirlpool Refrigerator FIP Gasket
3
WP2266727 Whirlpool Refrigerator Door Trim
4A
W11178521 Whirlpool Dishwasher Nameplate
5
W11129820 Whirlpool Refrigerator Door Trim
6
LW10657164 Whirlpool Refrigerator Door FIP
6A
LW10657315 Whirlpool Refrigerator DOR-FIP
6B
LW10681389 Whirlpool Refrigerator Door FIP
7A
WPW10520305 Whirlpool Refrigerator Button Plug
7
WPW10520304 Whirlpool Refrigerator Button Plug
7B
WPW10520307 Whirlpool Refrigerator Replacement Plug Button
8
GASKET-FIP
8A
WP2319263B Whirlpool Refrigerator Black Door Gasket
8B
W11661186 Whirlpool Door Gasket
9
W11745278 Whirlpool Bracket
10
SCREW
11
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
11A
WP2212651 Whirlpool Refrigerator Button Plug
11B
PLUG, HINGE SLEEVE (GREY)
12
WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13
DOOR-COMP
14A
2258681B Whirlpool Refrigerator Shim
14
WP2258681W Whirlpool Refrigerator Shim
←
