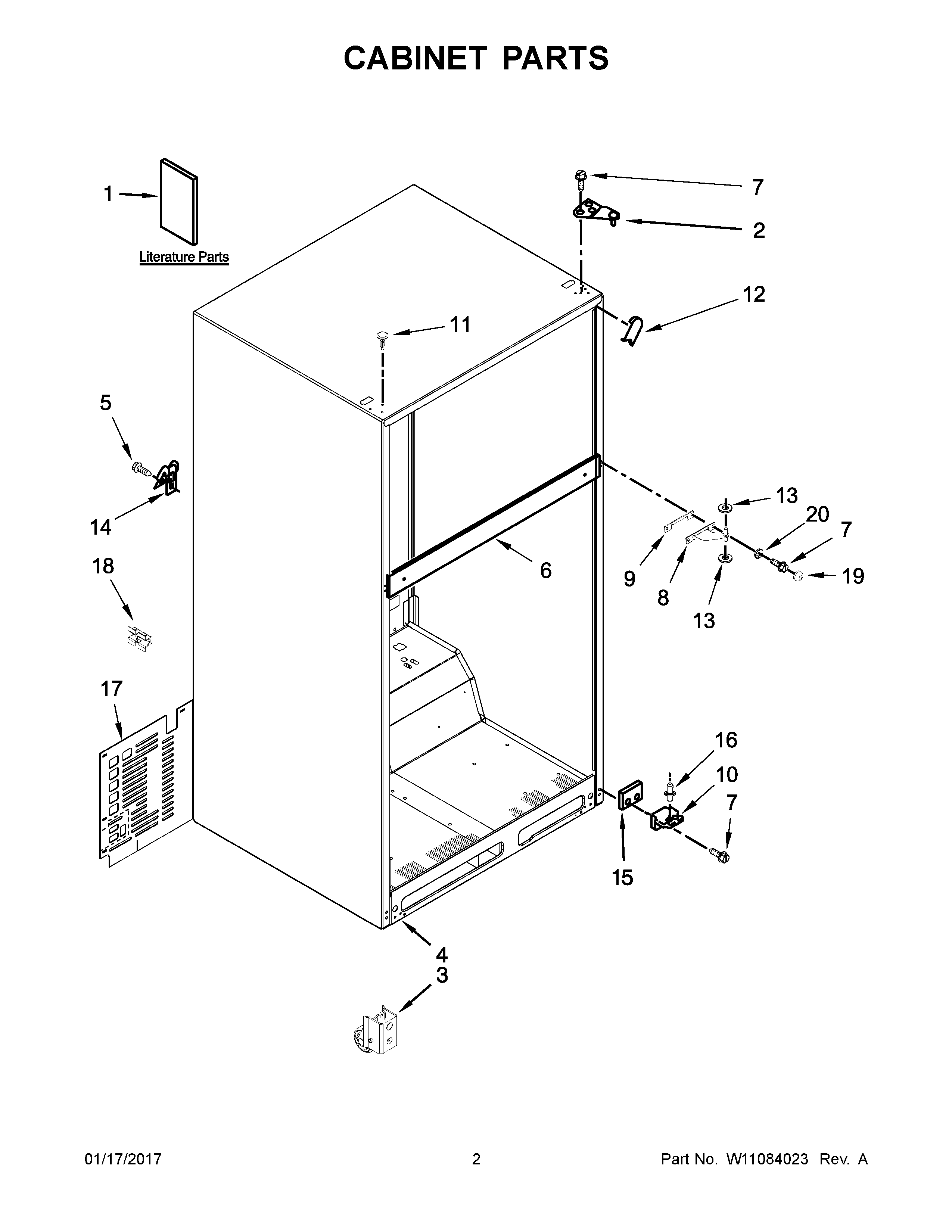

WRT316SFDM01 02 – CABINET PARTS
Written by
in
WRT316SFDM01 02 – CABINET PARTS
Products
Position
Product
1A
ENERGY GUIDE
1
USE AND CARE GUIDE
1B
SERVICE & WIRING SHEET
2
WP2261963 Whirlpool Refrigerator Door Hinge
3
WPW10142530 Whirlpool Refrigerator Cabinet Roller
5
WP489442 Whirlpool Refrigerator Screw
6
CABINET (NOT A SERVICEABLE PART)
7
WP489497 Whirlpool Screw
8
WP2166037 Whirlpool Refrigerator Door Hinge
9A
2215385 Whirlpool Refrigerator Shim
9
2166043 Whirlpool Refrigerator Shim
10
WP2325482 Whirlpool Bottom Hinge
11A
WPW10520305 Whirlpool Refrigerator Button Plug
11
WPW10520304 Whirlpool Refrigerator Button Plug
12A
W11500943 Whirlpool Refrigerator Filler
12
W10859322 Whirlpool Refrigerator Filler
13
WP487802 Whirlpool Refrigerator Washer
14
549193 Whirlpool Refrigerator Power Clamp
15
WP2201567 Whirlpool Hinge Shim
16
WP2325483 Whirlpool Hinge Pin
17
W10570558 Whirlpool Refrigerator Cover Assembly
18
2266506 Whirlpool Refrigerator Spacer
19
W10846529 Whirlpool Refrigerator Screw Cap
19B
W10849198 Whirlpool Refrigerator Cap Screw
19A
W10853677 Whirlpool Refrigerator Screw Cap
20
W10847959 Whirlpool Refrigerator Washer
←
