WRT316SFDM01 04 – DOOR PARTS

WRT316SFDM01 04 – DOOR PARTS

Written by

in

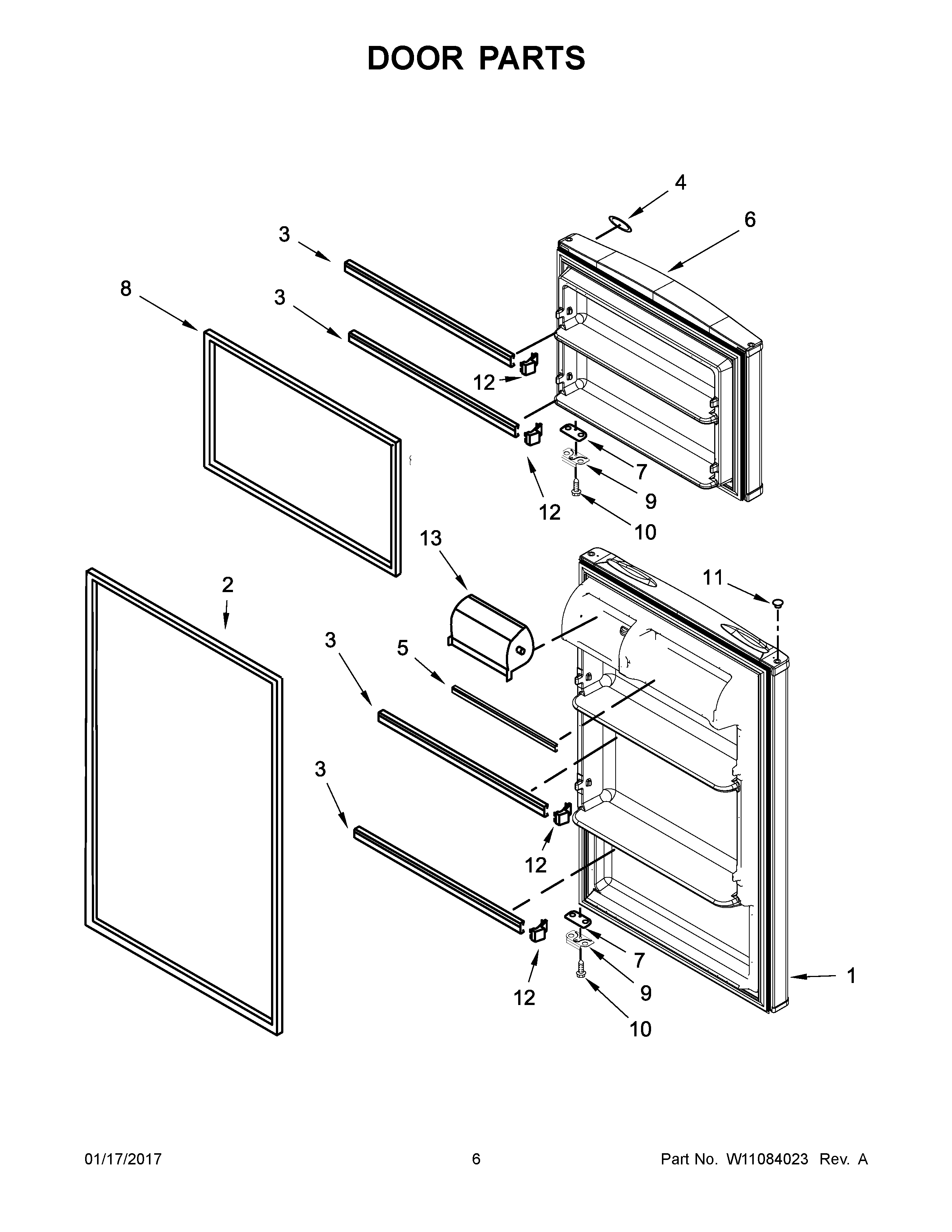

WRT316SFDM01 04 – DOOR PARTS

Products

PositionProduct
1LW10657163 Whirlpool Refrigerator Door Assembly, White
1BLW10681318 Whirlpool Refrigerator External Door
1ALW10657316 Whirlpool Refrigerator DOR-FIP
22319266W Whirlpool Refrigerator FIP Gasket
2BW10244874 Whirlpool Refrigerator FIP Gasket
2A2319266B Whirlpool Refrigerator Gasket FIP
3WP2266727 Whirlpool Refrigerator Door Trim
4AW11178521 Whirlpool Dishwasher Nameplate
5W11129820 Whirlpool Refrigerator Door Trim
6LW10657164 Whirlpool Refrigerator Door FIP
6BLW10681389 Whirlpool Refrigerator Door FIP
6ALW10657315 Whirlpool Refrigerator DOR-FIP
7WP2258681W Whirlpool Refrigerator Shim
7A2258681B Whirlpool Refrigerator Shim
8GASKET-FIP
8AWP2319263B Whirlpool Refrigerator Black Door Gasket
8BW11661186 Whirlpool Door Gasket
9W10492012 Whirlpool Refrigerator Bracket
10SCREW
11AWP2212651 Whirlpool Refrigerator Button Plug
11BPLUG, HINGE SLEEVE (GREY)
11WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13DOOR-COMP
