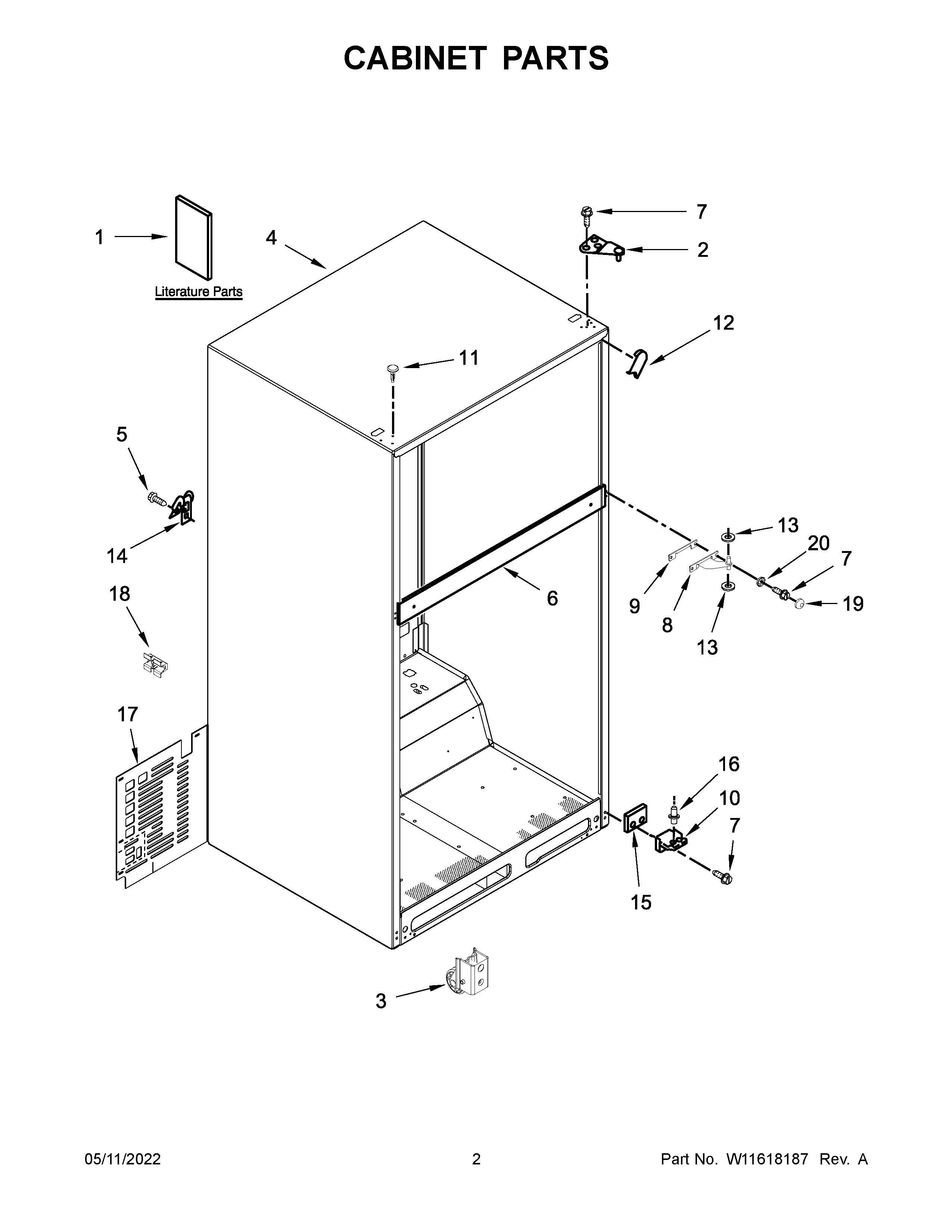

WRT316SFDM02 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	TECH SHEET
1	USE AND CARE GUIDE
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2215385 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12	W11573591 Whirlpool Refrigerator Filler
13	WP487802 Whirlpool Refrigerator Washer
14	W11234470 Whirlpool Refrigerator Clamp
15	WP2201567 Whirlpool Hinge Shim
16	W11026307 Whirlpool Refrigerator Hinge Pin
17	W11307292 Whirlpool Refrigerator Unit Cover
18	SPACER, BACK
19	W10849198 Whirlpool Refrigerator Cap Screw
20	W10847959 Whirlpool Refrigerator Washer
