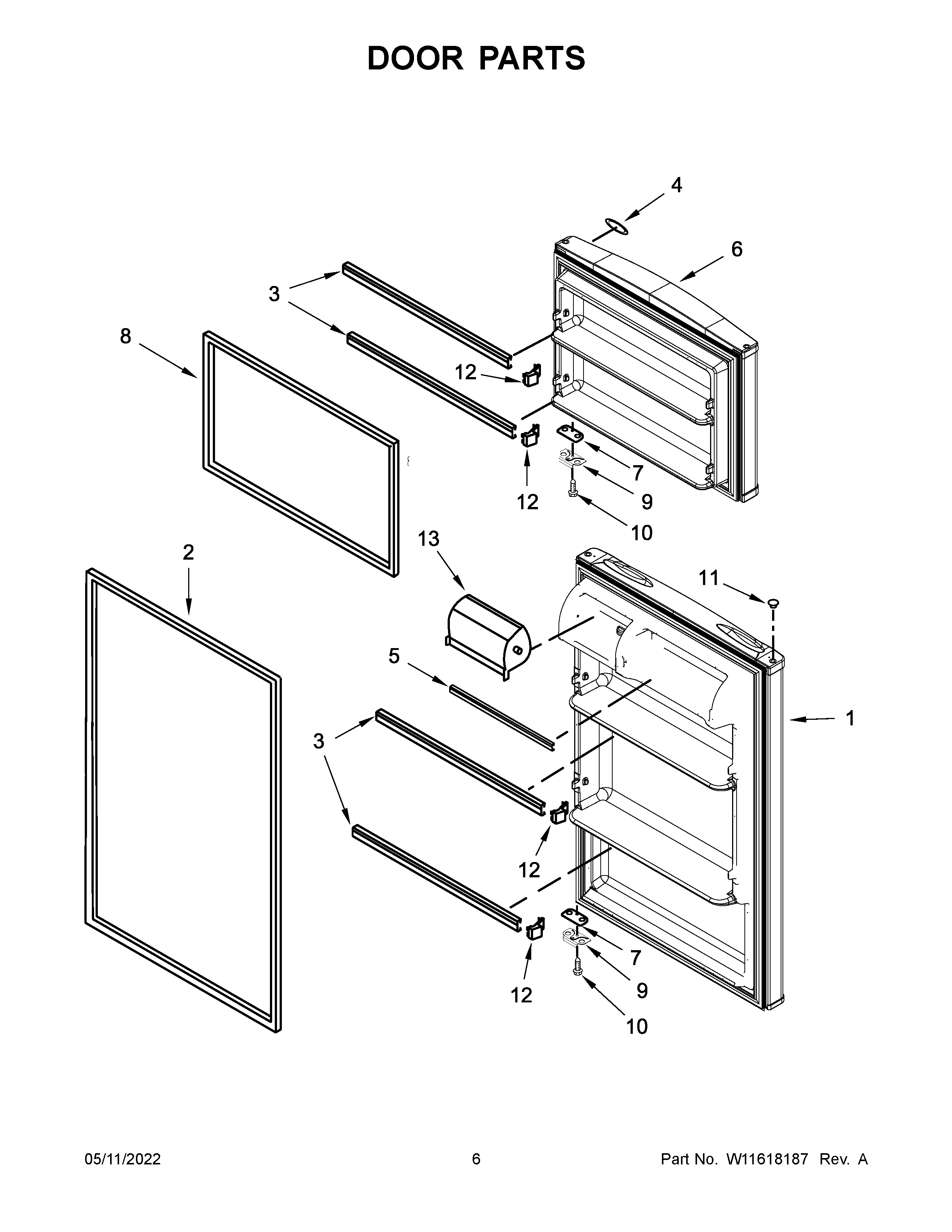

WRT316SFDM02 04 – DOOR PARTS

WRT316SFDM02 04 – DOOR PARTS

Written by

in

WRT316SFDM02 04 – DOOR PARTS

Products

PositionProduct
1LW10681318 Whirlpool Refrigerator External Door
2W10244874 Whirlpool Refrigerator FIP Gasket
3WP2266727 Whirlpool Refrigerator Door Trim
4W11178521 Whirlpool Dishwasher Nameplate
5W11129820 Whirlpool Refrigerator Door Trim
6LW10681389 Whirlpool Refrigerator Door FIP
7WP2258681W Whirlpool Refrigerator Shim
8W11661186 Whirlpool Door Gasket
9W10492012 Whirlpool Refrigerator Bracket
10SCREW
11PLUG, HINGE SLEEVE (GREY)
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13DOOR-COMP
