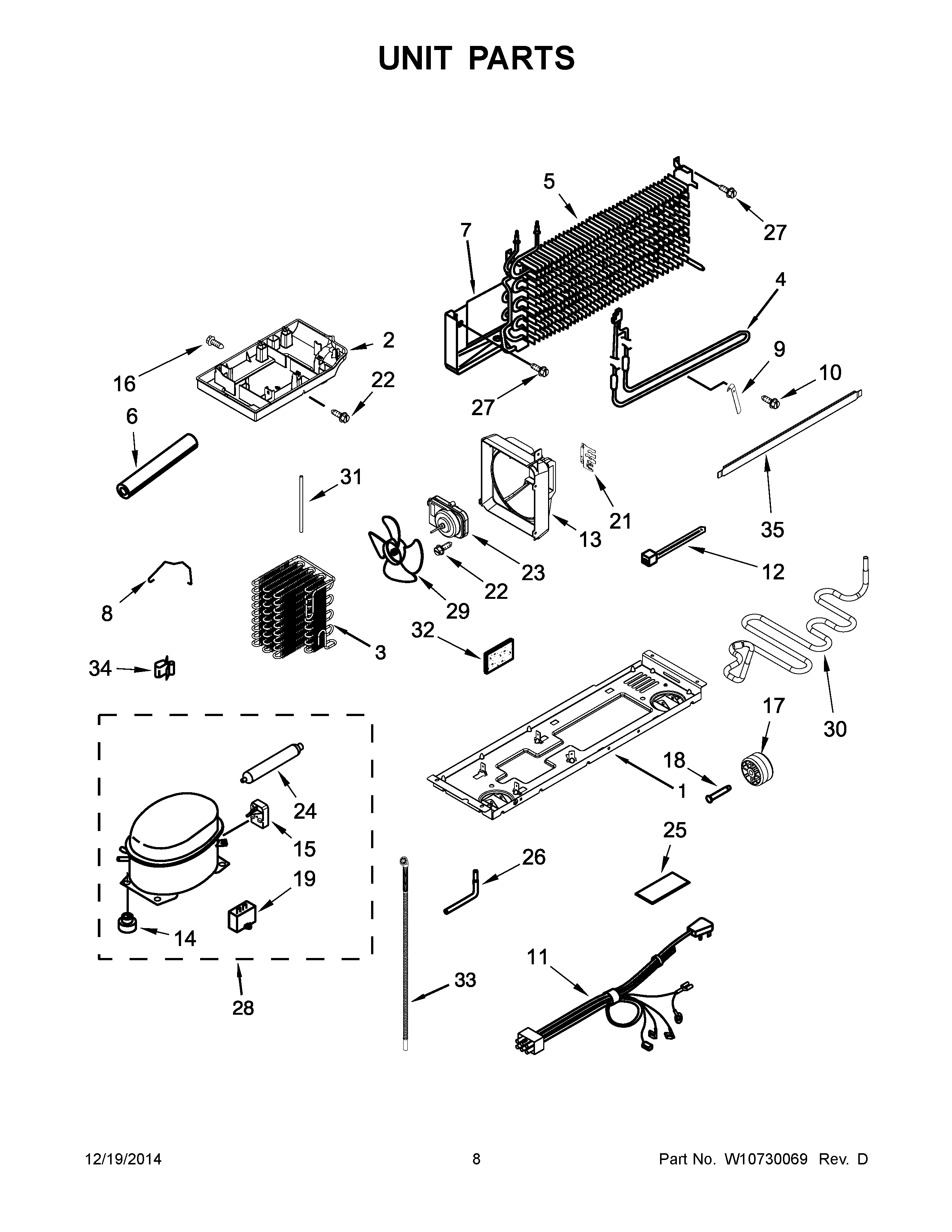

WRT316SFDW00 05 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10573847 Whirlpool Refrigerator Support
2	W10565417 Whirlpool Refrigerator Evaporator Tray
3	CONDENSER
4	W11220371 Whirlpool Refrigerator Heater
5	W10836706 Whirlpool Refrigerator Evaporator
6	SLEEVE
7	W10570572 Whirlpool Refrigerator Shield
8	W11661170 Whirlpool Clip
9	W10856574 Whirlpool Refrigerator Heat Probe
10	WP489478 Whirlpool Refrigerator Screw
11	W11241362 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	WPW10570380 Whirlpool Refrigerator Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	WP489489 Whirlpool Screw
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
21	W10314197 Whirlpool Refrigerator Bracket
22	WPW10171469 Whirlpool Refrigerator Screw
23	W11578915 Whirlpool Condenser Motor
24	W10843121 Whirlpool Refrigerator Tube
25	2266360 Whirlpool Shield Assembly
26	W11676464 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	WPW10507886 Whirlpool Refrigerator Compressor
29	W11204896 Whirlpool Refrigerator Fan Blade
31	W10582029 Whirlpool Refrigerator Extension
32	W11553819 Whirlpool Refrigerator Insulation
33	W10286976 Whirlpool Refrigerator Drain Tube
34	W10812038 Whirlpool Refrigerator Clip
35	W10300902 Whirlpool Refrigerator Cover
