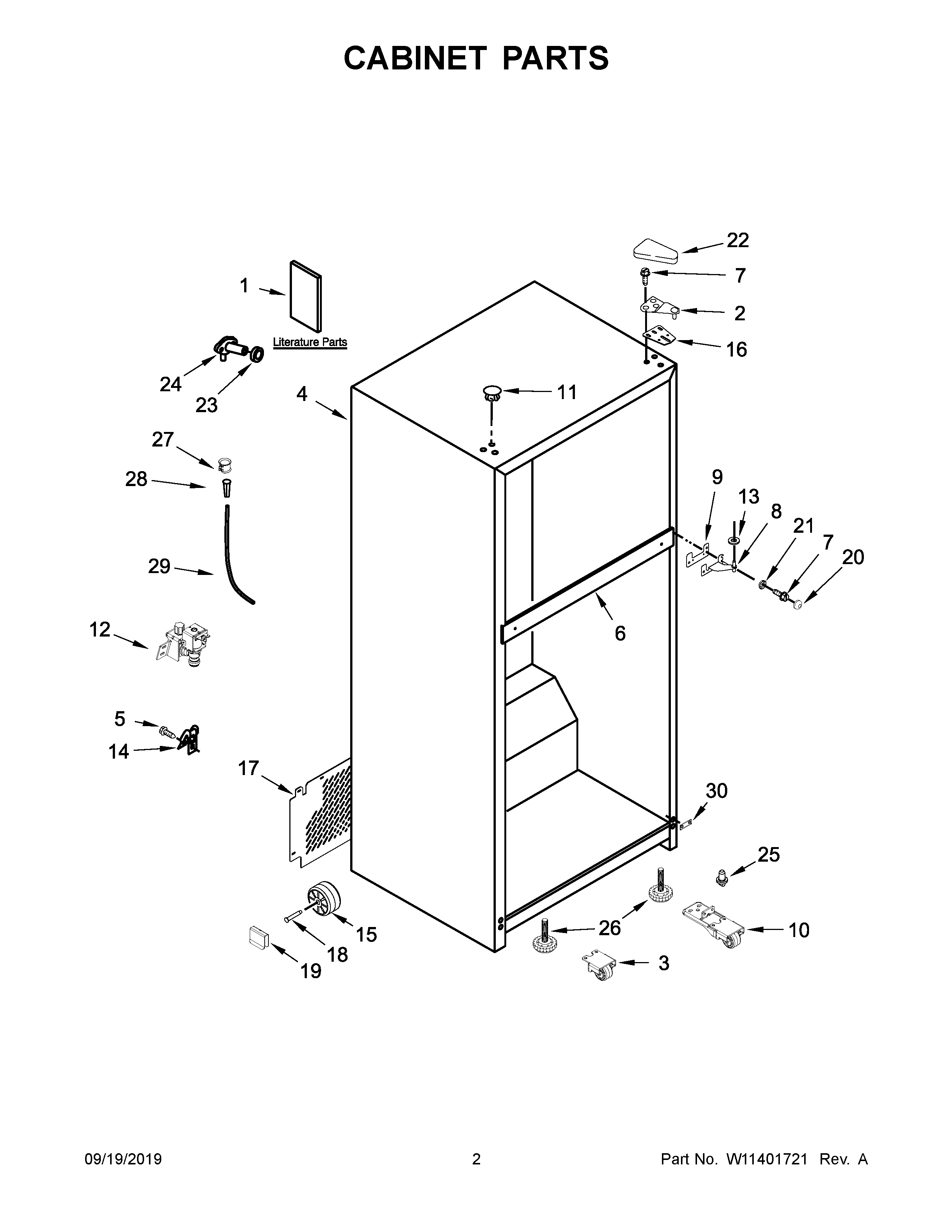

WRT318FMDB05 02 – CABINET PARTS

WRT318FMDB05 02 – CABINET PARTS

Written by

in

WRT318FMDB05 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1BENERGY GUIDE
1TECH SHEET
2WP2261963 Whirlpool Refrigerator Door Hinge
3W11256723 Whirlpool Refrigerator CAB Roller
5WP489442 Whirlpool Refrigerator Screw
6CABINET (NOT A SERVICEABLE PART)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10W11096015 Whirlpool Refrigerator Cab Roller
11AWPW10520305 Whirlpool Refrigerator Button Plug
11BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11WPW10520304 Whirlpool Refrigerator Button Plug
12WPW10279909 Whirlpool Refrigerator Inlet Valve
13WP489467 Whirlpool Hinge Shim
14549193 Whirlpool Refrigerator Power Clamp
15WPW10475495 Whirlpool Roller Assembly
16W11169703 Whirlpool Refrigerator Shim
17W11476772 Whirlpool Refrigerator Cover Assembly
18W11594405 Whirlpool Axle
19WP2174706 Whirlpool Refrigerator Pin Hitch
20BW10849198 Whirlpool Refrigerator Cap Screw
20AW10853677 Whirlpool Refrigerator Screw Cap
20W10846529 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22AWP2213363 Whirlpool Refrigerator Cover
22WP2213360 Whirlpool Refrigerator Cover
22BW10853622 Whirlpool Refrigerator Cover
23WP1106508 Whirlpool Refrigerator Gasket
24W11292468 Whirlpool Refrigerator Fitting
25W11026307 Whirlpool Refrigerator Hinge Pin
26W10854419 Whirlpool Refrigerator Leveling Leg
27W10861184 Whirlpool Refrigerator Clamp
284387491 Whirlpool Refrigerator Insert
29W10823511 Whirlpool Refrigerator Water Tube
30W11269192 Whirlpool Refrigerator Hinge Shim
