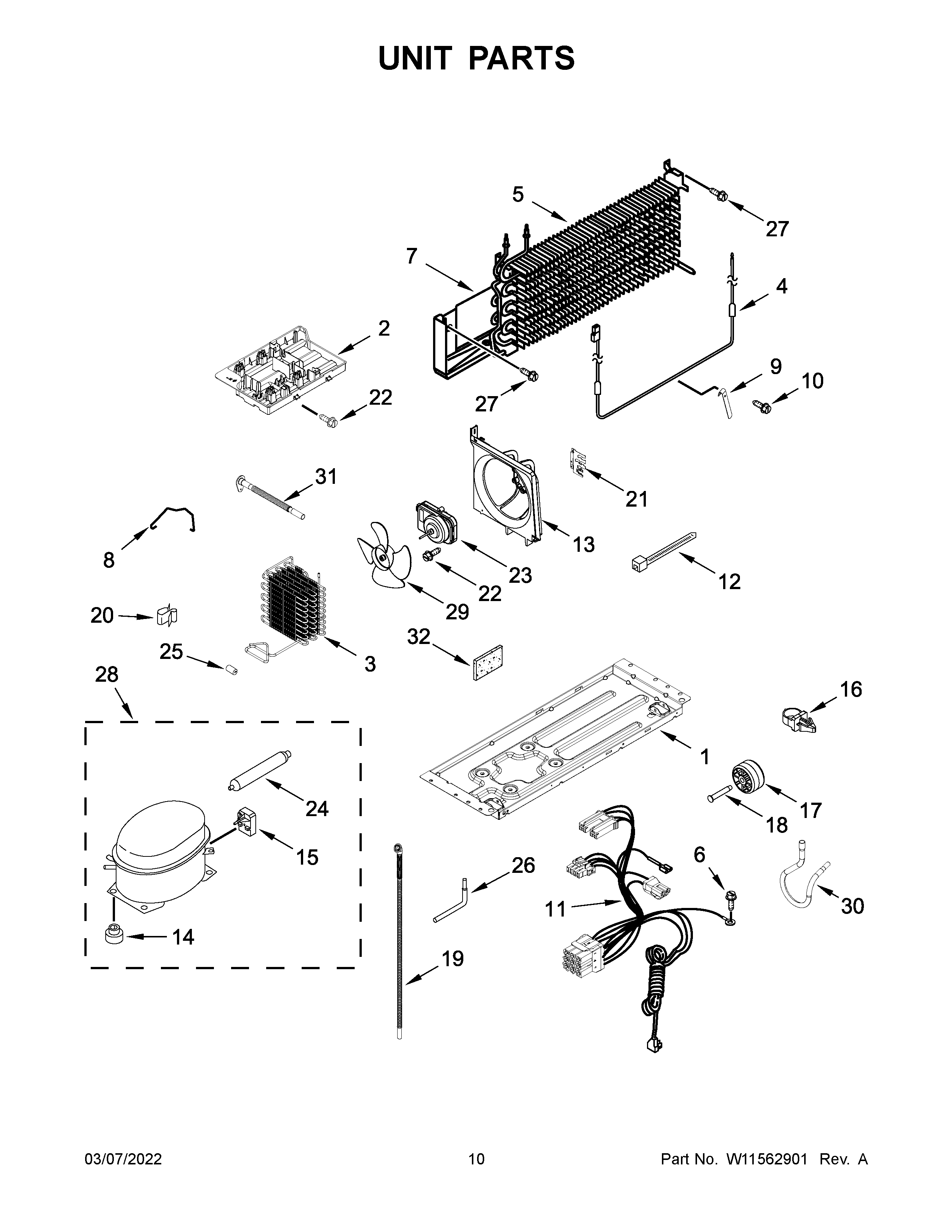

WRT318FZDW07 06 – UNIT PARTS

Products

PositionProduct
NIWPL ARI08B20594E14F645289EE9390CC1289DE
1W10624648 Whirlpool Base Unit
2W10633582 Whirlpool Refrigerator Evaporator Tray
3BW11506623 Whirlpool Refrigerator Coupler
3W11512423 Whirlpool Refrigerator Condenser
4W11562215 Whirlpool Refrigerator Heater
5W11562258 Whirlpool Refrigerator Evaporator
5AW11504419 Whirlpool Microwave Coupler
5BW11504449 Whirlpool Refrigerator Coupler
6WP489128 Whirlpool Refrigerator Screw
7W11562216 Whirlpool Shield
8W11577799 Whirlpool Refrigerator Clip
9HEAT PROBE
10WP489478 Whirlpool Refrigerator Screw
11W11611445 Whirlpool Refrigerator Wire Harness
12WPW10339879 Whirlpool Wire Tie
13W11736795 Whirlpool Air Baffle
14W11678963 Whirlpool Grommet
15W11547180 Whirlpool Refrigerator Start Device
162219077 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19W10633573 Whirlpool Refrigerator Drain Tube
20W10812039 Whirlpool Clip
21BRACKET, EVAPORATOR
22W10829281 Whirlpool Refrigerator Screw
23W11127829 Whirlpool Refrigerator Condenser Motor
24AW11504445 Whirlpool Refrigerator Coupler
24W11109499 Whirlpool Refrigerator Tube
24BW11504448 Whirlpool Refrigerator Coupler
25W10852725 Whirlpool Refrigerator Grommet
26W11661102 Whirlpool Tube
27WP489442 Whirlpool Refrigerator Screw
28COMPRESSOR
28AW11504415 Whirlpool Refrigerator Coupler
28BW11504431 Whirlpool Microwave Coupler
28CCOUPLER
29W11193484 Whirlpool Fan Blade
30W11562211 Whirlpool Tube
31W11383479 Whirlpool Extension Assembly
32W11553819 Whirlpool Refrigerator Insulation
