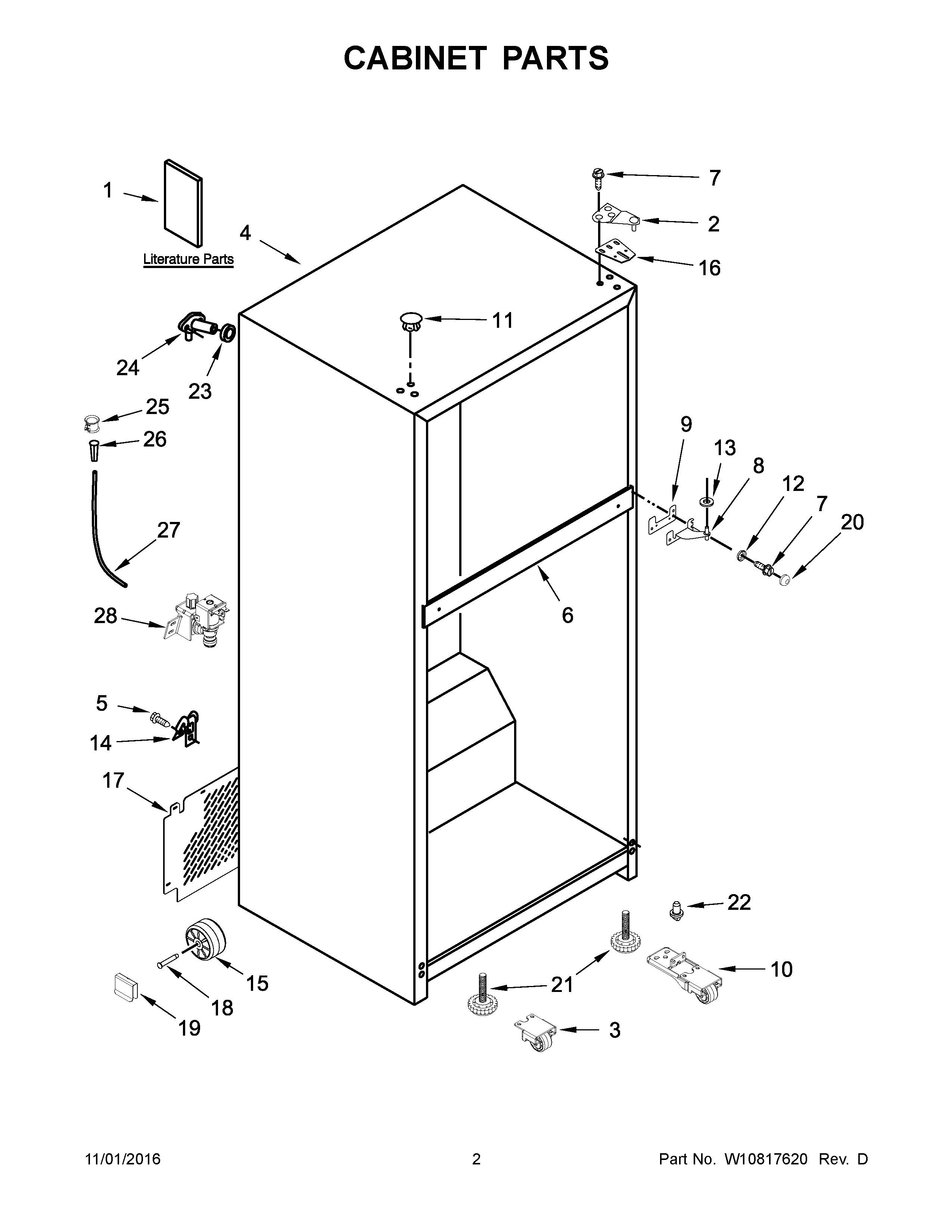

WRT348FMEB00 02 – CABINET PARTS

WRT348FMEB00 02 – CABINET PARTS

Written by

in

WRT348FMEB00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY LABEL
1TECH SHEET
1AUSE AND CARE GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3W11256723 Whirlpool Refrigerator CAB Roller
5WP489442 Whirlpool Refrigerator Screw
6CABINET (NOT A SERVICEABLE PART)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10W11096015 Whirlpool Refrigerator Cab Roller
11WPW10520304 Whirlpool Refrigerator Button Plug
11AWPW10520305 Whirlpool Refrigerator Button Plug
12W10847959 Whirlpool Refrigerator Washer
13WP489467 Whirlpool Hinge Shim
14549193 Whirlpool Refrigerator Power Clamp
15WPW10475495 Whirlpool Roller Assembly
16W11169703 Whirlpool Refrigerator Shim
17W11476772 Whirlpool Refrigerator Cover Assembly
18W11594405 Whirlpool Axle
19WP2174706 Whirlpool Refrigerator Pin Hitch
20AW10853677 Whirlpool Refrigerator Screw Cap
20W10846529 Whirlpool Refrigerator Screw Cap
21W10854419 Whirlpool Refrigerator Leveling Leg
22W11026307 Whirlpool Refrigerator Hinge Pin
23WP1106508 Whirlpool Refrigerator Gasket
24WPW10601149 Whirlpool Refrigerator Fitting
25W10861184 Whirlpool Refrigerator Clamp
264387491 Whirlpool Refrigerator Insert
27W10823511 Whirlpool Refrigerator Water Tube
28WPW10279909 Whirlpool Refrigerator Inlet Valve
