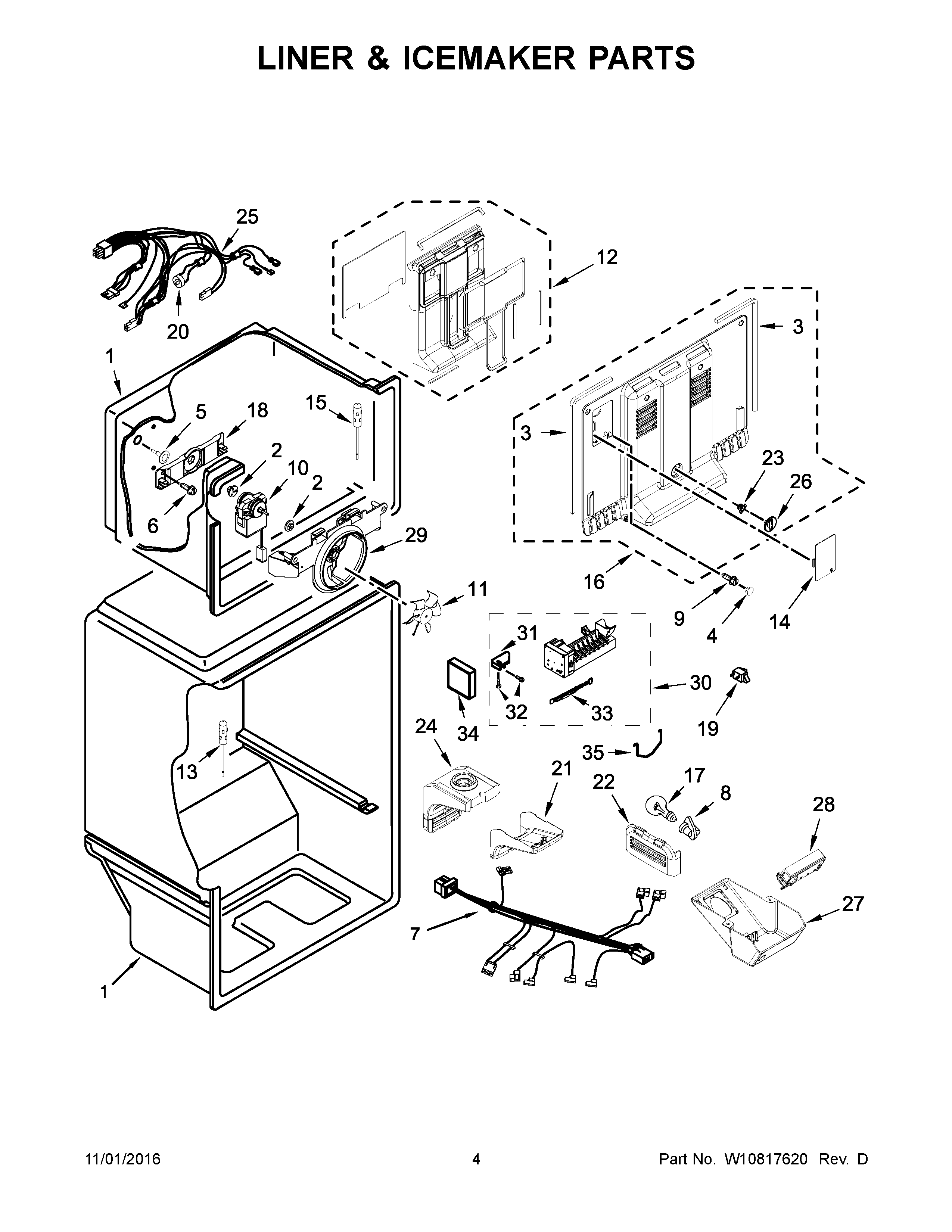

WRT348FMES00 03 – LINER & ICEMAKER PARTS

Products

Position	Product
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W10854527 Whirlpool Refrigerator Cover
5	WPW10520304 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11436564 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	W11544659 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10919804 Whirlpool Refrigerator Air Duct
13	THERMISTOR
14	W10763751 Whirlpool Refrigerator Cover
15	WPW10384183 Whirlpool Thermistor
16	W11024683 Whirlpool Refrigerator Evaporator Cover
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	CABINET (NOT A SERVICEABLE PART)
21	W11256504 Whirlpool Refrigerator Cover
22	W10638176 Whirlpool Refrigerator Grille
23	W11244470 Whirlpool Refrigerator Control
24	W10861170 Whirlpool Refrigerator Diffuser
25	W11551368 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	W11318267 Whirlpool Refrigerator Control Box
28	CONTROL, ELECTRONIC
29	W10850162 Whirlpool Refrigerator Orifice
30	4317943 Whirlpool Refrigerator Ice Maker Assembly
31	W11500948 Whirlpool Refrigerator Bracket
32	WP489478 Whirlpool Refrigerator Screw
33	W11643622 Whirlpool Wire Harness
34	WPW10289690 Whirlpool Ice Maker Cover
35	W10646481 Whirlpool Refrigerator Arm Shut
