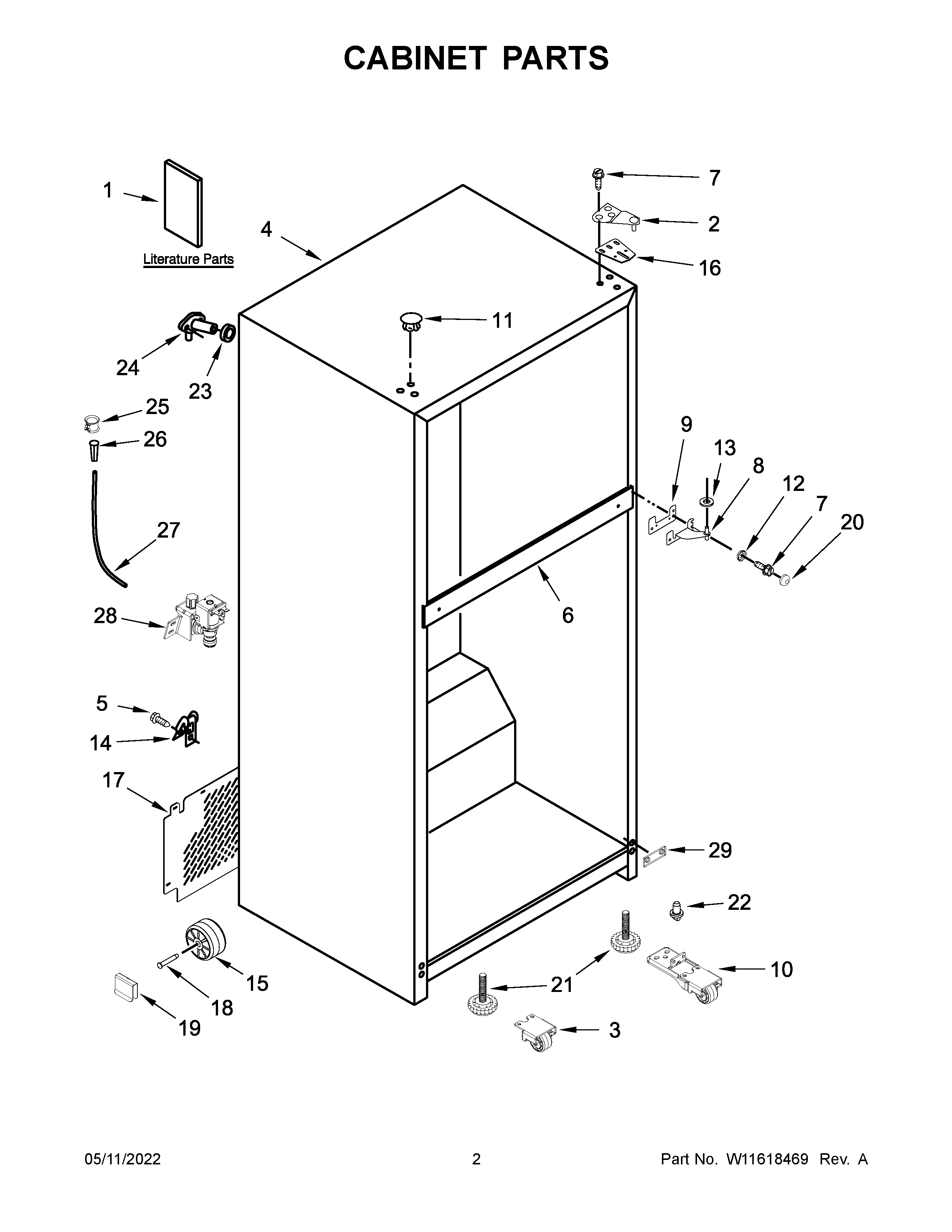

WRT348FMES03 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	USE & CARE GUIDE
1A	TECH SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	W11256723 Whirlpool Refrigerator CAB Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	W11096015 Whirlpool Refrigerator Cab Roller
11	WPW10520305 Whirlpool Refrigerator Button Plug
12	W10847959 Whirlpool Refrigerator Washer
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WPW10475495 Whirlpool Roller Assembly
16	W11169703 Whirlpool Refrigerator Shim
17	W11476772 Whirlpool Refrigerator Cover Assembly
18	W11594405 Whirlpool Axle
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10853677 Whirlpool Refrigerator Screw Cap
21	W10854419 Whirlpool Refrigerator Leveling Leg
22	W11026307 Whirlpool Refrigerator Hinge Pin
23	WP1106508 Whirlpool Refrigerator Gasket
24	W11292468 Whirlpool Refrigerator Fitting
25	W10861184 Whirlpool Refrigerator Clamp
26	4387491 Whirlpool Refrigerator Insert
27	W10823511 Whirlpool Refrigerator Water Tube
28	WPW10279909 Whirlpool Refrigerator Inlet Valve
29	W11528669 Whirlpool Hinge Shim
