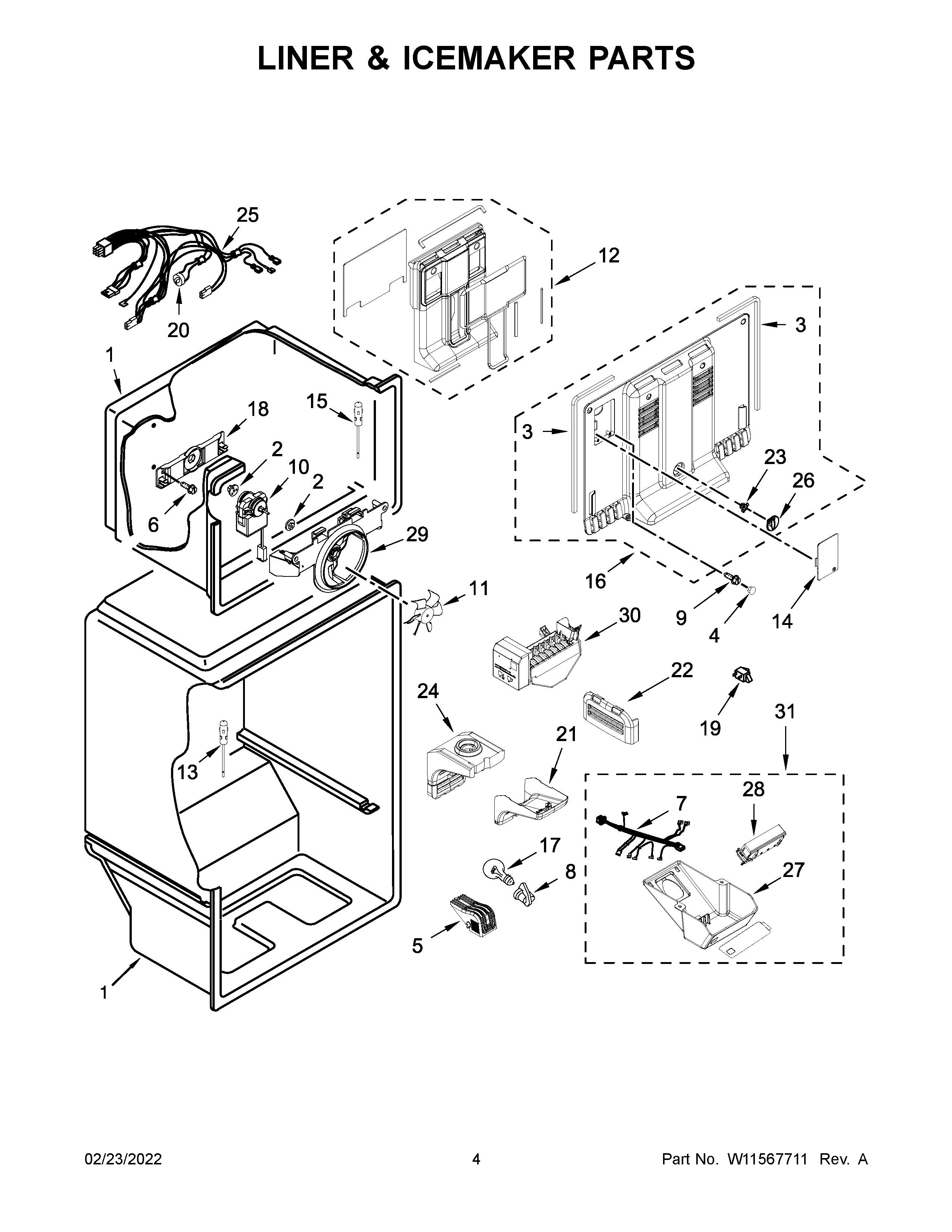

WRT348FMES04 03 – LINER & ICEMAKER PARTS

Products

Position	Product
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W10854527 Whirlpool Refrigerator Cover
5	W11512421 Whirlpool Refrigerator Light Lens
6	WP488163 Whirlpool Refrigerator Screw
7	W11436564 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	W11544659 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10919804 Whirlpool Refrigerator Air Duct
13	THERMISTOR
14	W10763751 Whirlpool Refrigerator Cover
15	WPW10384183 Whirlpool Thermistor
16	W11562262 Whirlpool Evaporator Cover
17	W11216993 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11123941 Whirlpool Refrigerator Switch
20	CABINET (NOT A SERVICEABLE PART)
21	W11256504 Whirlpool Refrigerator Cover
22	W10638176 Whirlpool Refrigerator Grille
23	W11244470 Whirlpool Refrigerator Control
24	W10861170 Whirlpool Refrigerator Diffuser
25	W11562214 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	W11318267 Whirlpool Refrigerator Control Box
28	W11562260-includeCORE Whirlpool W11562260 Refrigerator Electronic Control Board + Core
29	W10850162 Whirlpool Refrigerator Orifice
30	W11565638 Whirlpool Refrigerator Icemaker
31	W11666427-includeCORE Whirlpool W11666427 Refrigerator UI Panel with Core
