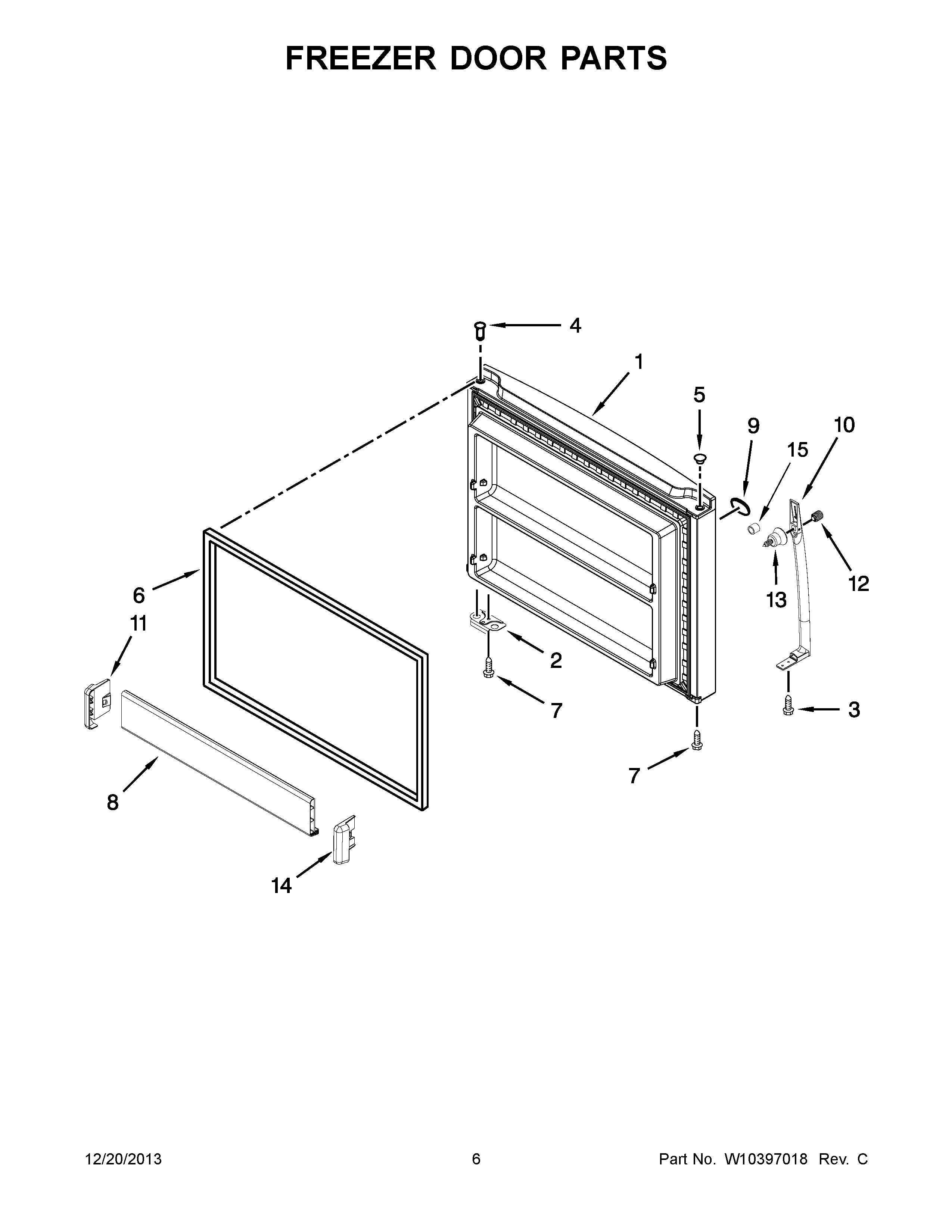

WRT351SFTF00 04 – FREEZER DOOR PARTS

WRT351SFTF00 04 – FREEZER DOOR PARTS

Written by

in

WRT351SFTF00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEMS 4 AND 6) (STAINLESS)
1DOOR, FREEZER (INCLUDES ITEMS 4 AND 6) (SPARKLE STEEL)
1DOOR, FREEZER (INCLUDES ITEMS 4 AND 6) (BLACK)
1DOOR, FREEZER (INCLUDES ITEMS 4 AND 6) (WHITE)
2W11745278 Whirlpool Bracket
3WP489357 Whirlpool Recessed Screw
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62177310 Whirlpool Refrigerator Door Gasket
6W10249196 Whirlpool Refrigerator Gasket FIP
6WHITE DOOR GASKET-FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10498429 Whirlpool Refrigerator Handle
10WPW10498430 Whirlpool Refrigerator Handle
10WPW10646617 Whirlpool Refrigerator Handle
11WPW10338485 Whirlpool Refrigerator End Cap
12SCREW, SET
13WPW10170540 Whirlpool Screw
14CAP, TRIM END (RIGHT HAND)
15WPW10511911 Whirlpool Refrigerator Bushing
