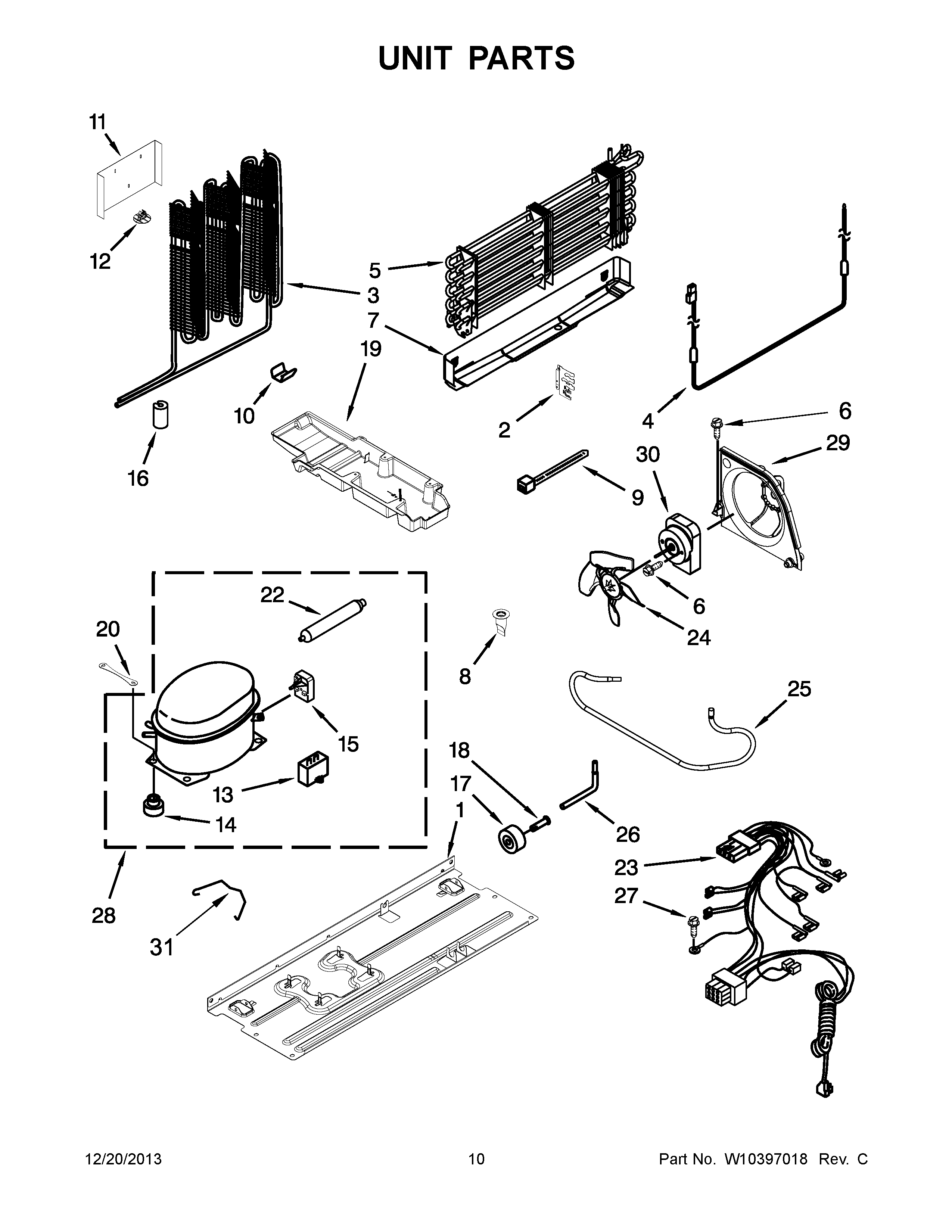

WRT351SFTF00 06 – UNIT PARTS

WRT351SFTF00 06 – UNIT PARTS

Written by

in

WRT351SFTF00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W11396825 Whirlpool Plate
2	W10314197 Whirlpool Refrigerator Bracket
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W11190084 Whirlpool Refrigerator Drain Tube
9	WPW10339879 Whirlpool Wire Tie
10	W10683556 Whirlpool Refrigerator Clip
11	W10349515 Whirlpool Refrigerator Air Baffle
12	W10296661 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10194431 Whirlpool Start Device
16	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10890667 Whirlpool Refrigerator Drip Pan
20	W10236396 Whirlpool Refrigerator Strap
22	W10843121 Whirlpool Refrigerator Tube
23	W11625681 Whirlpool Refrigerator Wire Harness
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	W10510988 Whirlpool Refrigerator Tube
26	W11676464 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	WP2315541 Whirlpool Refrigerator Air Baffle
30	WP2188874 Whirlpool Refrigerator Condenser Motor
31	W11661170 Whirlpool Clip
