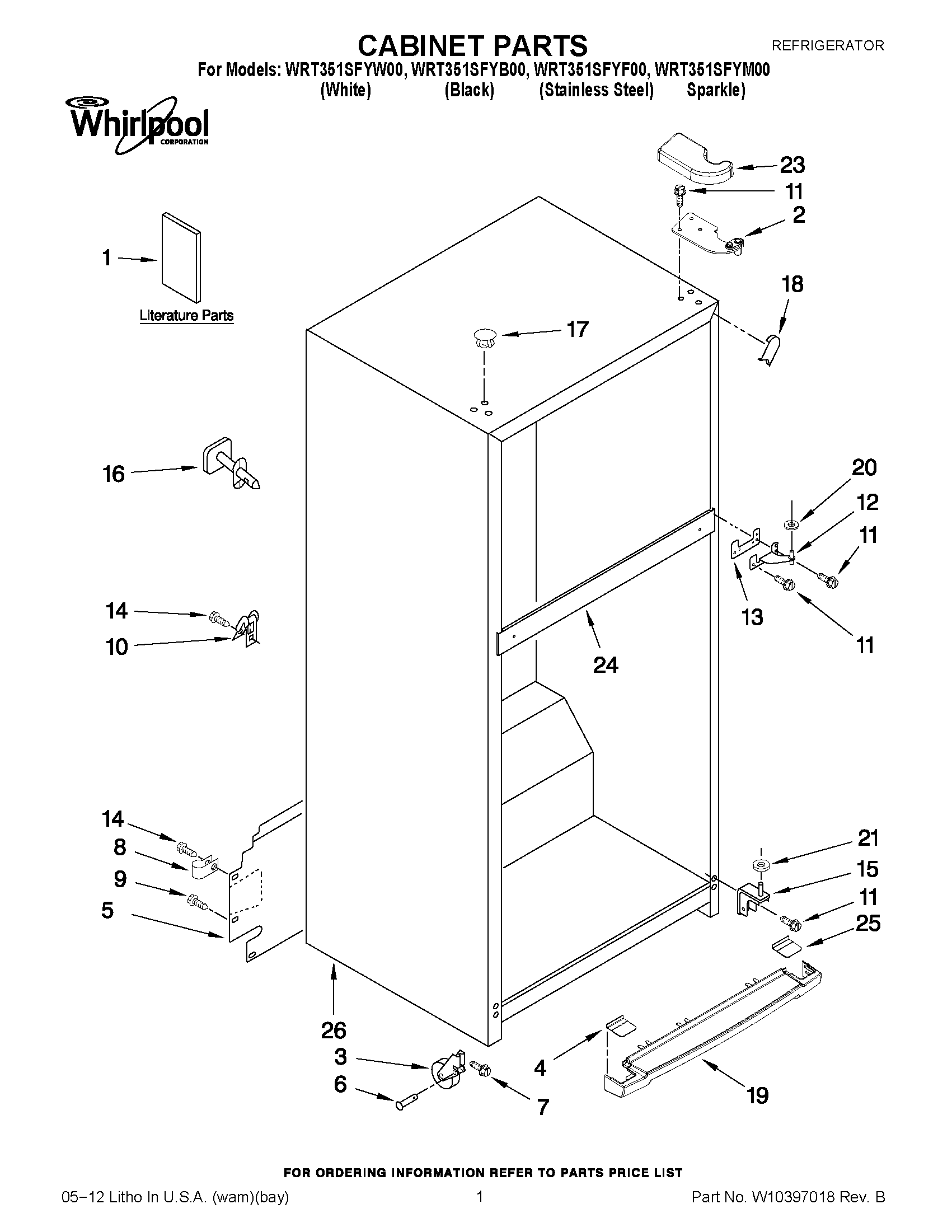

WRT351SFYF00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE AND WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WPW10353932 Whirlpool Refrigerator Grille Endcap
4	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
4	W10353930 Whirlpool Refrigerator Grill End Cap
5	WPW10384414 Whirlpool Refrigerator Unit Cover
6	W11594405 Whirlpool Axle
7	W10850698 Whirlpool Refrigerator Screw
8	WP488366 Whirlpool Refrigerator Clamp
9	WP489427 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489497 Whirlpool Screw
12	WP2254618 Whirlpool Center Door Hinge
13	WP2183852 Whirlpool Refrigerator Shim
14	WP489464 Whirlpool Refrigerator Screw
15	WP2254473 Whirlpool Refrigerator Door Hinge
17	WP2183998 Whirlpool Refrigerator Button Plug
17	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17	WP2151652 Whirlpool Refrigerator Button Plug
18	W10851579 Whirlpool Refrigerator Filler
18	W11252732 Whirlpool Refrigerator Filler
18	WPW10283959 Whirlpool Refrigerator Filler
19	WPW10300129 Whirlpool Refrigerator Grille
19	WPW10353939 Whirlpool Refrigerator Grille
19	WPW10353941 Whirlpool Refrigerator Grille
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
23	COVER, HINGE (WHITE LS)
23	W10353950A Whirlpool Refrigerator Cover
23	W10353947A Whirlpool Refrigerator Cover
23	W10353948A Whirlpool Refrigerator Cover
23	W10331560A Whirlpool Refrigerator Cover
23	W10353945A Whirlpool Refrigerator Cover
25	WPL W10381060
25	W10381059 Whirlpool Refrigerator End Cap – GRL
25	WPL W10381064
26	CABINET (NOT A SERVICEABLE PART)
