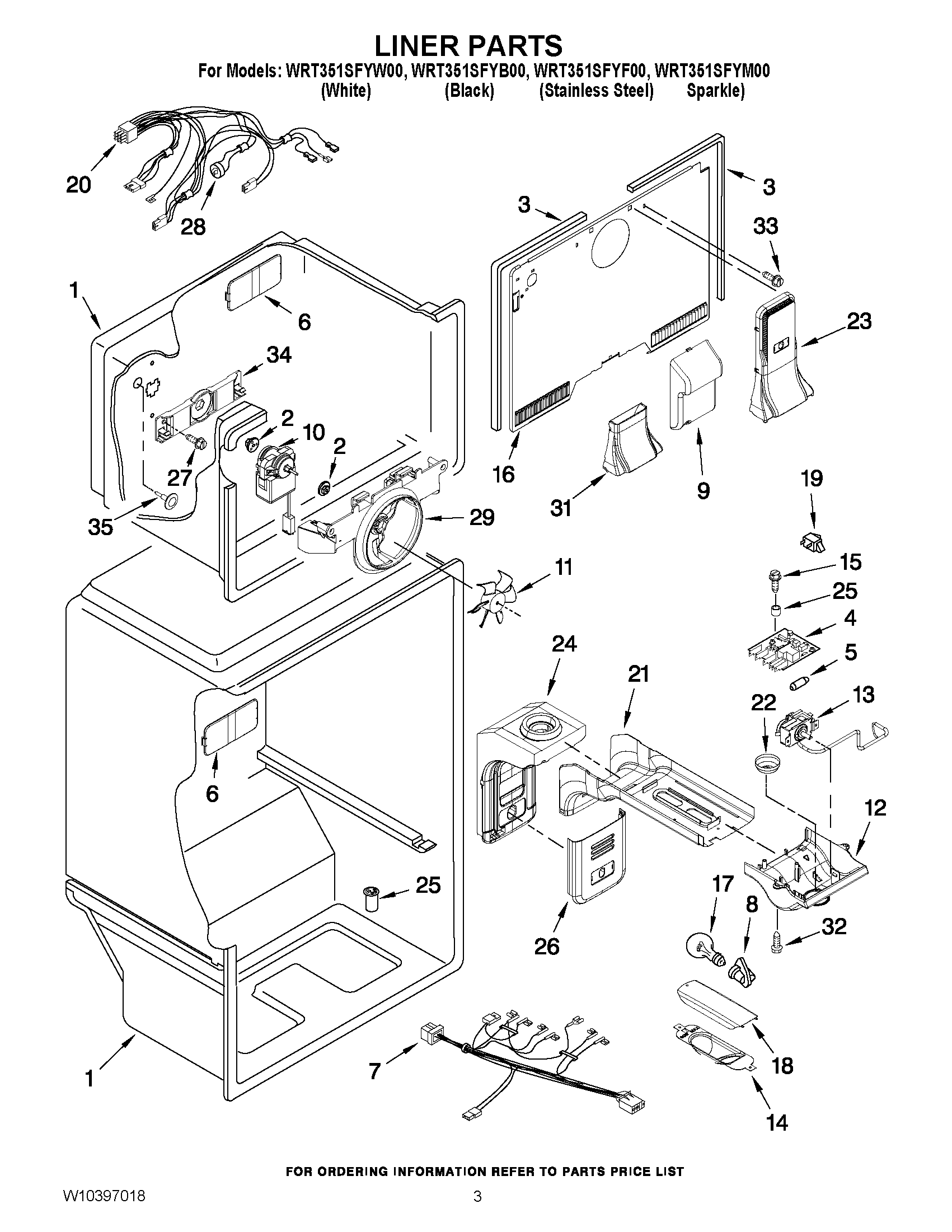

WRT351SFYF00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10336009 Whirlpool Refrigerator Cover
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10339203 Whirlpool Refrigerator Tube Cover
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	W10300161 Whirlpool Refrigerator Shield
16	COVER, EVAPORATOR
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WPW10348614 Whirlpool Refrigerator Cover
19	W11384469 Whirlpool Door Switch
20	W10339627 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	WP2210509 Whirlpool Refrigerator Tub Valve
26	CUP, AIR DIFFUSER
27	WP488163 Whirlpool Refrigerator Screw
28	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
29	W10850162 Whirlpool Refrigerator Orifice
31	ASSEMBLY, TOWER CONNECTION
32	WP489442 Whirlpool Refrigerator Screw
33	WP489478 Whirlpool Refrigerator Screw
34	2254454 Whirlpool Refrigerator Bracket
35	WP941839 Whirlpool Refrigerator Button Plug
