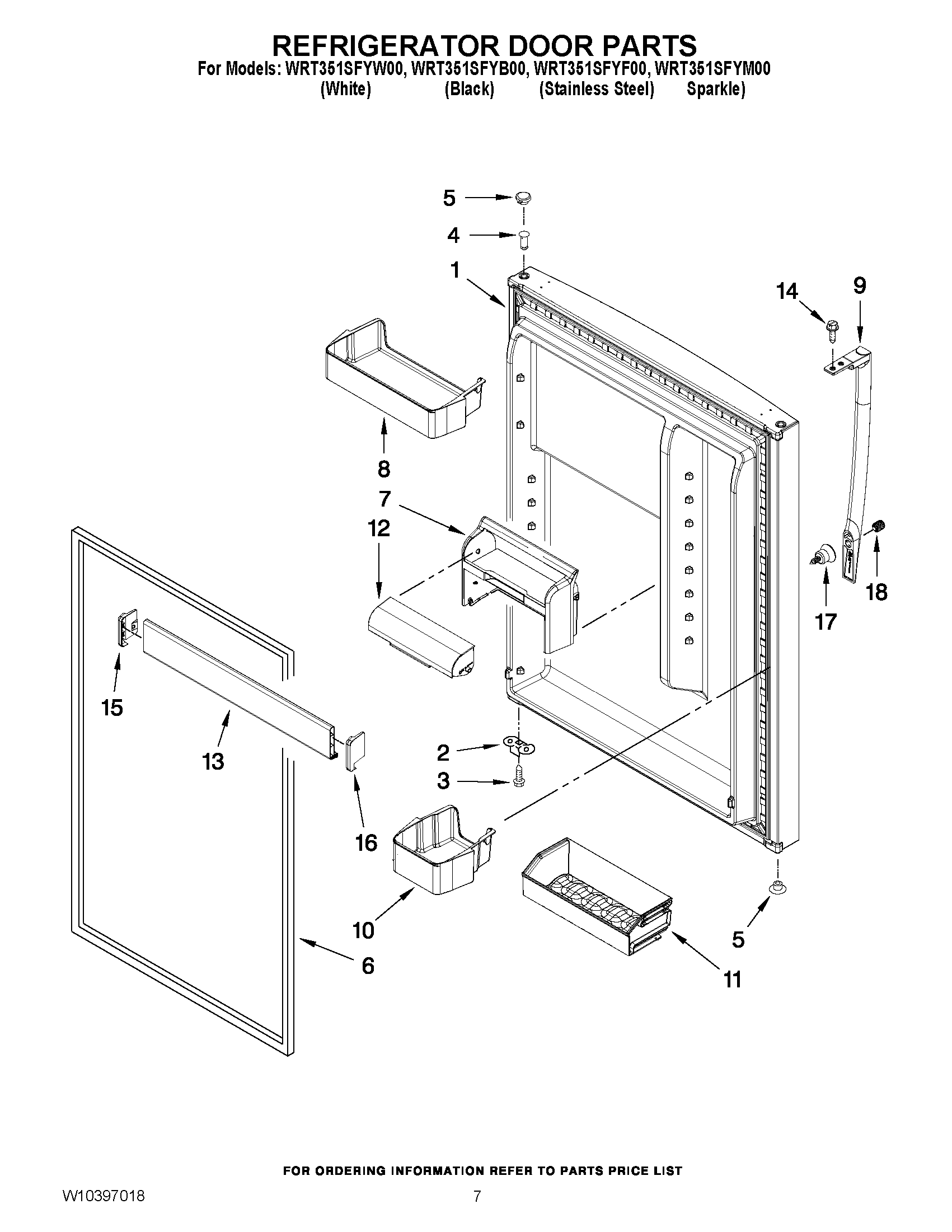

WRT351SFYF00 05 – REFRIGERATOR DOOR PARTS

WRT351SFYF00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRT351SFYF00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (STAINLESS)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (SPARKLE STEEL)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (BLACK)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62177311 Whirlpool Refrigerator Magnetic Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
6W10249195 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9WPW10646617 Whirlpool Refrigerator Handle
9WPW10498430 Whirlpool Refrigerator Handle
9WPW10498429 Whirlpool Refrigerator Handle
10WPW10308869 Whirlpool Door Bin
11CADDY, CAN
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WP489357 Whirlpool Recessed Screw
15WPW10338485 Whirlpool Refrigerator End Cap
16CAP, TRIM END (RIGHT HAND)
17WPW10170540 Whirlpool Screw
18SCREW, SET
