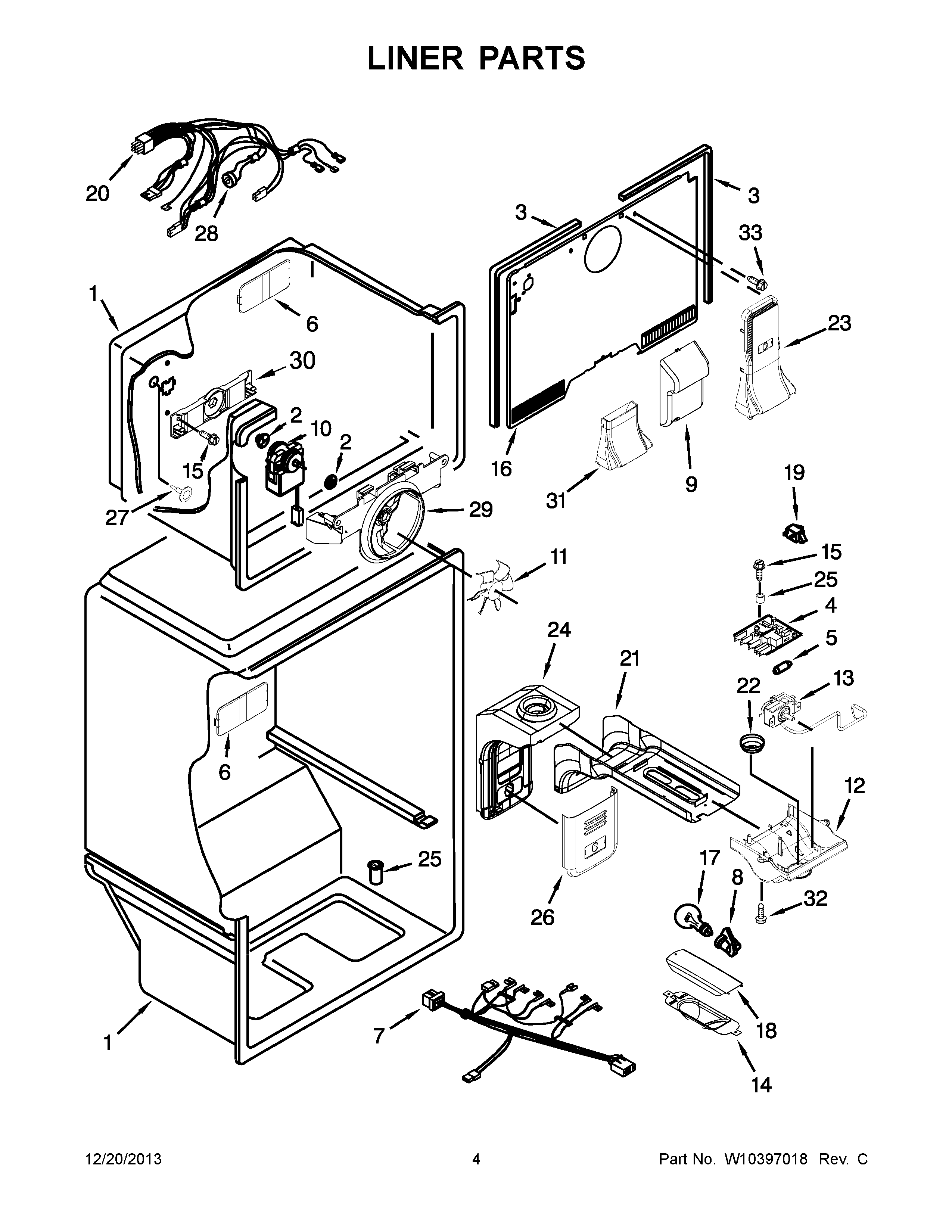

WRT351SFYM00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10336009 Whirlpool Refrigerator Cover
7W10318068 Whirlpool Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10339203 Whirlpool Refrigerator Tube Cover
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316941 Whirlpool Refrigerator Control Box
13WPW10584888 Whirlpool Refrigerator Thermostat
14W10300161 Whirlpool Refrigerator Shield
15WP488163 Whirlpool Refrigerator Screw
16COVER, EVAPORATOR
17W10887190 Whirlpool Refrigerator Light Bulb
18WPW10348614 Whirlpool Refrigerator Cover
19W11384469 Whirlpool Door Switch
20W10339627 Whirlpool Refrigerator Wire Harness
21WPW10305175 Whirlpool Refrigerator Cover
22KNOB
23TOWER, AIR
24ASSEMBLY, AIR DIFFUSER
25WP2210509 Whirlpool Refrigerator Tub Valve
26CUP, AIR DIFFUSER
27WP941839 Whirlpool Refrigerator Button Plug
28WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
29W10850162 Whirlpool Refrigerator Orifice
302254454 Whirlpool Refrigerator Bracket
31ASSEMBLY, TOWER CONNECTION
32WP489442 Whirlpool Refrigerator Screw
33WP489478 Whirlpool Refrigerator Screw
