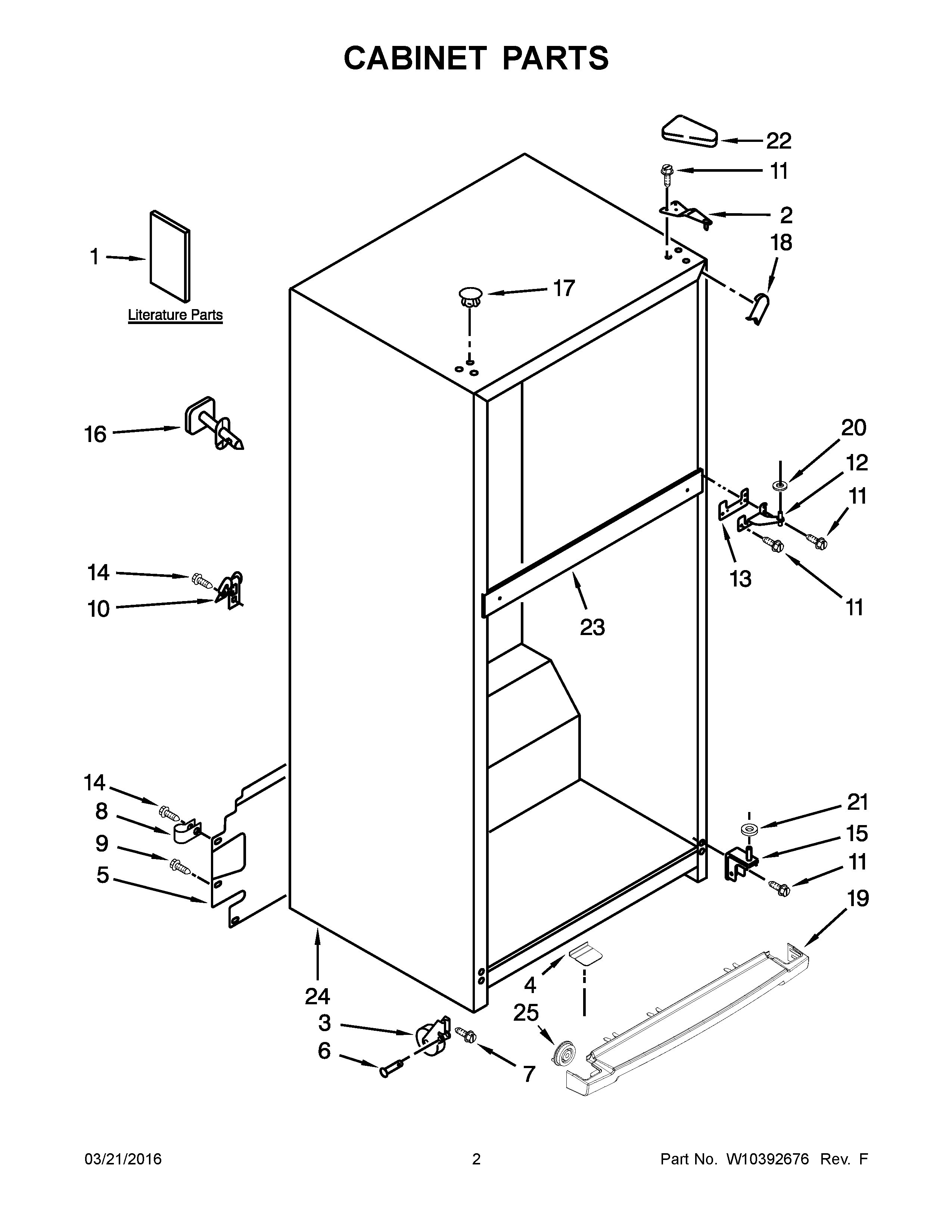

WRT359SFYB00 02 – CABINET PARTS

WRT359SFYB00 02 – CABINET PARTS

Written by

in

WRT359SFYB00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY LABEL
1AUSE AND CARE GUIDE
1SERVICE AND WIRING SHEET
2WPW10300065 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
4BWPL W10381064
4W10381059 Whirlpool Refrigerator End Cap – GRL
4AWPL W10381060
5W10636716 Whirlpool Refrigerator Cover Unit
6W11594405 Whirlpool Axle
7W10850698 Whirlpool Refrigerator Screw
8W10861184 Whirlpool Refrigerator Clamp
9WP489427 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183852 Whirlpool Refrigerator Shim
14WP488729 Whirlpool Refrigerator Door Screw
15WP2254473 Whirlpool Refrigerator Door Hinge
17WP2151652 Whirlpool Refrigerator Button Plug
17BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
17AWP2183998 Whirlpool Refrigerator Button Plug
18WPW10283959 Whirlpool Refrigerator Filler
18AW11252732 Whirlpool Refrigerator Filler
18BW10851579 Whirlpool Refrigerator Filler
19AWPW10353933 Whirlpool Refrigerator Grille
19WPW10300127 Whirlpool Refrigerator Grille
19BWPW10353935 Whirlpool Refrigerator Grille
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
22BW10353948A Whirlpool Refrigerator Cover
22COVER, HINGE (WHITE LS)
22DW10353950A Whirlpool Refrigerator Cover
22EW10353947A Whirlpool Refrigerator Cover
22AW10331560A Whirlpool Refrigerator Cover
22CW10353945A Whirlpool Refrigerator Cover
24CABINET (NOT A SERVICEABLE PART)
25W10331226 Whirlpool Refrigerator Clip
