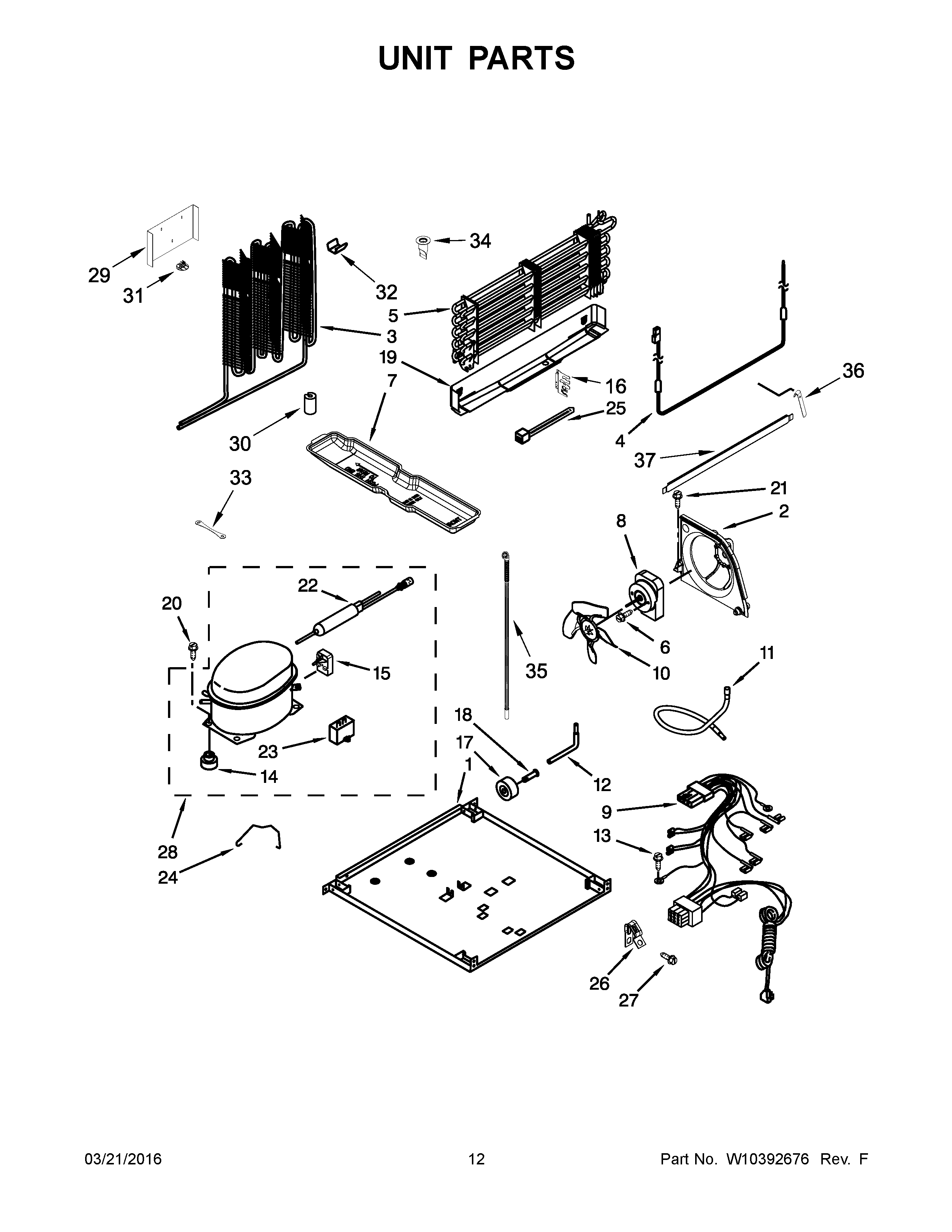

WRT359SFYB00 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	W10300116 Whirlpool Refrigerator Base Plate
2	WP2315541 Whirlpool Refrigerator Air Baffle
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	W10890667 Whirlpool Refrigerator Drip Pan
8	W11563806 Whirlpool Refrigerator Condenser Motor
9	W11625681 Whirlpool Refrigerator Wire Harness
10	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
11	W10510988 Whirlpool Refrigerator Tube
12	W11676464 Whirlpool Tube
13	WP489128 Whirlpool Refrigerator Screw
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10194431 Whirlpool Start Device
16	W10314197 Whirlpool Refrigerator Bracket
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10314195 Whirlpool Refrigerator Shield
20	876811 Whirlpool Grommet
21	3400518 Whirlpool Oven Foot Mount Screw
22	W10843121 Whirlpool Refrigerator Tube
23	WPW10662129 Whirlpool Refrigerator Run Capacitor
24	W11661170 Whirlpool Clip
25	WPW10339879 Whirlpool Wire Tie
26	549193 Whirlpool Refrigerator Power Clamp
27	WP488729 Whirlpool Refrigerator Door Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	W10349514 Whirlpool Refrigerator Air Baffle
30	W10852725 Whirlpool Refrigerator Grommet
31	W10296661 Whirlpool Refrigerator Clip
32	W10683556 Whirlpool Refrigerator Clip
33	W10236396 Whirlpool Refrigerator Strap
34	W11190084 Whirlpool Refrigerator Drain Tube
35	W10475011 Whirlpool Refrigerator Drain Tube
36	W10856574 Whirlpool Refrigerator Heat Probe
37	W10300902 Whirlpool Refrigerator Cover
