WRT359SFYF00 06 – REFRIGERATOR DOOR PARTS

WRT359SFYF00 06 – REFRIGERATOR DOOR PARTS

Written by

in

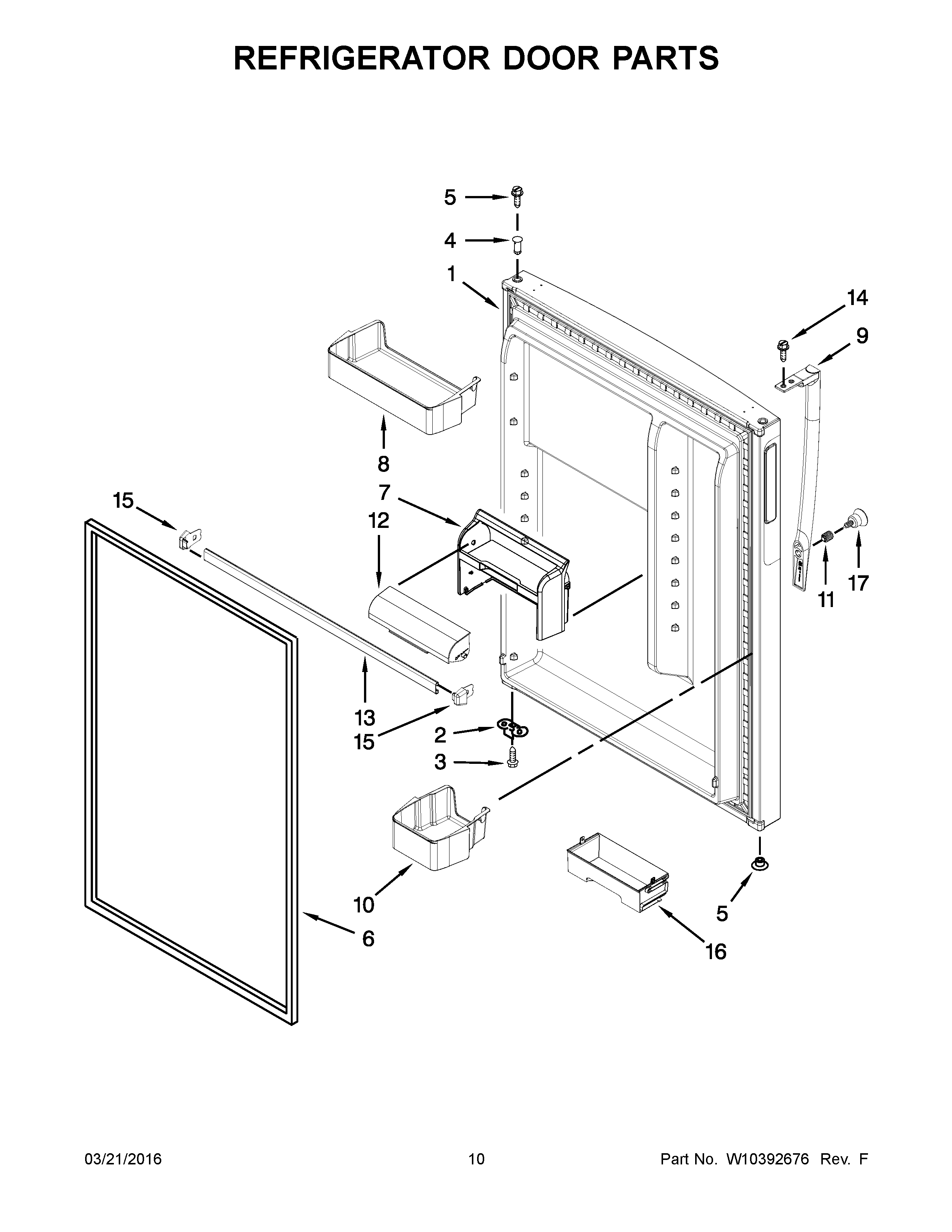

WRT359SFYF00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW10406238 Whirlpool Refrigerator Door FIP SP
1BREFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (STAINLESS)
1AREFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5AWP2212651 Whirlpool Refrigerator Button Plug
5BPLUG, HINGE SLEEVE (GREY)
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6BW11624977 Whirlpool Refrigerator FIP Gasket
6A2177305 Whirlpool Refrigerator Door FIP Gasket
62159057 Whirlpool Refrigerator Fresh Food Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9BWPW10646617 Whirlpool Refrigerator Handle
9AWPW10498430 Whirlpool Refrigerator Handle
9WPW10498429 Whirlpool Refrigerator Handle
10WPW10308867 Whirlpool Refrigerator Cantilever Bin
11SCREW, SET
12WPW10308843 Whirlpool Refrigerator Door Compressor
13TRIM, DOOR SHELF
14WP489357 Whirlpool Recessed Screw
15CAP, TRIM END (RIGHT HAND)
15AWPW10338485 Whirlpool Refrigerator End Cap
16CADDY, CAN
17WPW10170540 Whirlpool Screw
