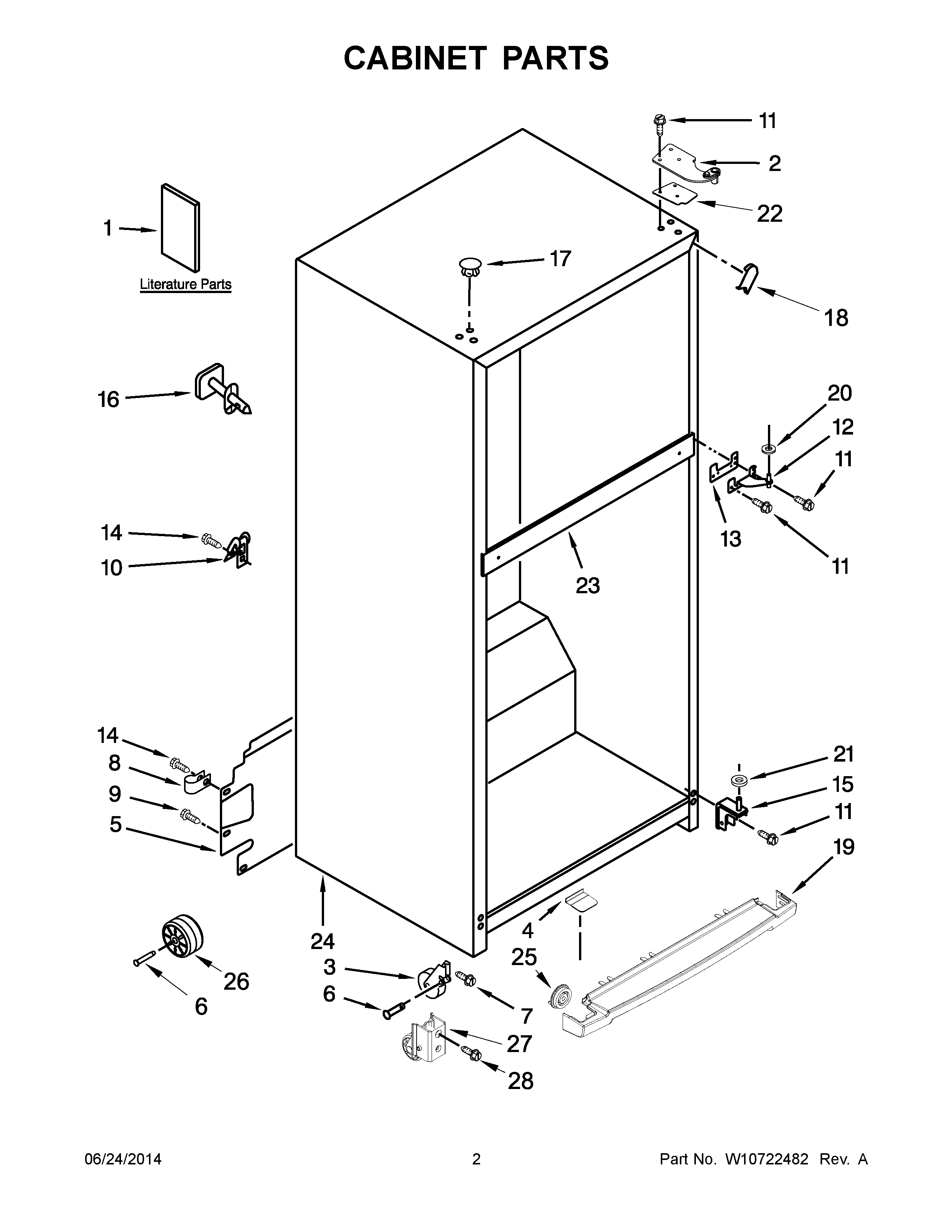

WRT359SFYF01 02 – CABINET PARTS

WRT359SFYF01 02 – CABINET PARTS

Written by

in

WRT359SFYF01 02 – CABINET PARTS

Products

PositionProduct
1SERVICE AND WIRING SHEET
1ENERGY LABEL
1USE AND CARE GUIDE
2WPW10300065 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WPL W10381064
4W10381059 Whirlpool Refrigerator End Cap – GRL
4WPL W10381060
5W10636716 Whirlpool Refrigerator Cover Unit
6W11594405 Whirlpool Axle
7W10850698 Whirlpool Refrigerator Screw
8W10861184 Whirlpool Refrigerator Clamp
9WP489427 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183852 Whirlpool Refrigerator Shim
14WP488729 Whirlpool Refrigerator Door Screw
15WP2254473 Whirlpool Refrigerator Door Hinge
17WPW10520304 Whirlpool Refrigerator Button Plug
17WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17WPW10520305 Whirlpool Refrigerator Button Plug
18WPW10283959 Whirlpool Refrigerator Filler
18W11252732 Whirlpool Refrigerator Filler
18W10851579 Whirlpool Refrigerator Filler
19WPW10353933 Whirlpool Refrigerator Grille
19WPW10353935 Whirlpool Refrigerator Grille
19WPW10300127 Whirlpool Refrigerator Grille
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
22W10883637 Whirlpool Refrigerator Hinge Shim
24CABINET (NOT A SERVICEABLE PART)
25W10331226 Whirlpool Refrigerator Clip
26WPW10475495 Whirlpool Roller Assembly
27W10849386 Whirlpool Refrigerator CAB Roller
28BOLT
