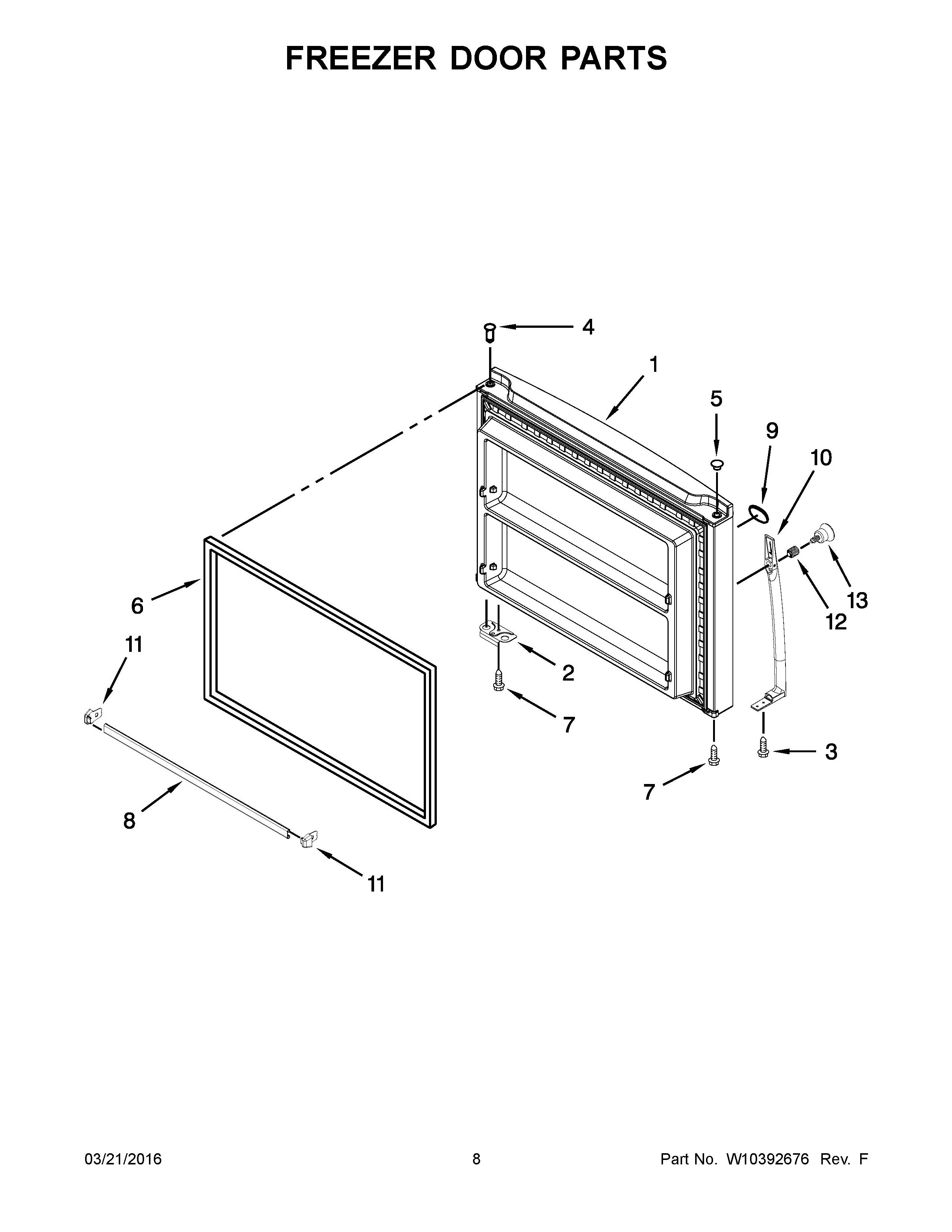

WRT359SFYM00 05 – FREEZER DOOR PARTS

Products

Position	Product
1C	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (SPARKLE)
1	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
1A	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1B	FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (STAINLESS)
2	W11745278 Whirlpool Bracket
3	WP489357 Whirlpool Recessed Screw
4	W11189115 Whirlpool Refrigerator Thimble
5A	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5B	PLUG, HINGE SLEEVE (GREY)
6A	2177304 Whirlpool Refrigerator FIP Gasket
6	2159327 Whirlpool Refrigerator Door Gasket
6B	W11624958 Whirlpool Refrigerator FIP Gasket
7	WP681249 Whirlpool Screw Assembly
8	W10469910 Whirlpool Refrigerator Door Trim
9A	W11178521 Whirlpool Dishwasher Nameplate
10B	WPW10646617 Whirlpool Refrigerator Handle
10	WPW10498429 Whirlpool Refrigerator Handle
10A	WPW10498430 Whirlpool Refrigerator Handle
11A	WPW10338485 Whirlpool Refrigerator End Cap
11	CAP, TRIM END (RIGHT HAND)
12	SCREW, SET
13	WPW10170540 Whirlpool Screw
