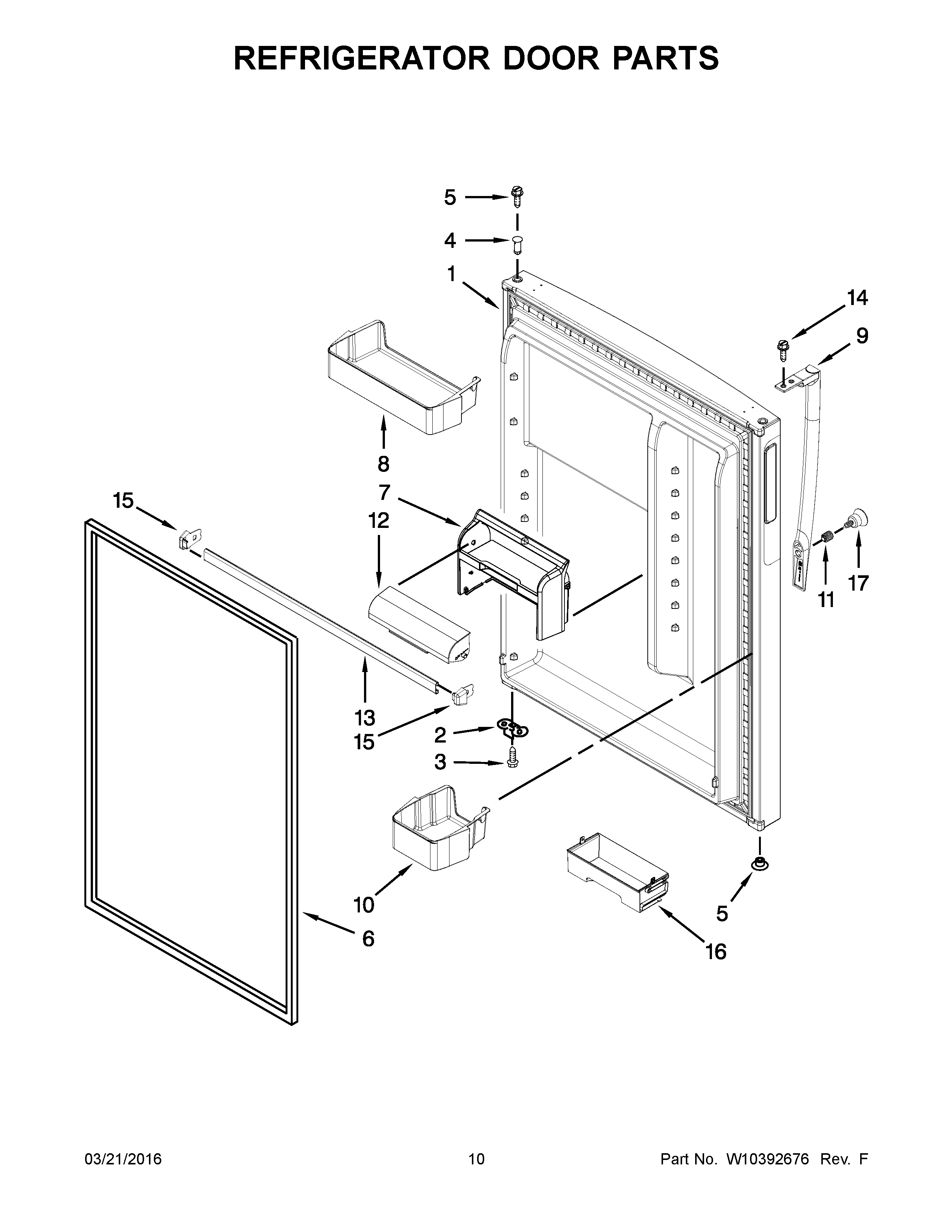

WRT359SFYM00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1C	LW10406238 Whirlpool Refrigerator Door FIP SP
1B	REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (STAINLESS)
1A	REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11189115 Whirlpool Refrigerator Thimble
5A	WP2212651 Whirlpool Refrigerator Button Plug
5B	PLUG, HINGE SLEEVE (GREY)
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6B	W11624977 Whirlpool Refrigerator FIP Gasket
6A	2177305 Whirlpool Refrigerator Door FIP Gasket
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	HOUSING, COMPARTMENT
8	WPW10308868 Whirlpool Refrigerator Door Bin
9B	WPW10646617 Whirlpool Refrigerator Handle
9A	WPW10498430 Whirlpool Refrigerator Handle
9	WPW10498429 Whirlpool Refrigerator Handle
10	WPW10308867 Whirlpool Refrigerator Cantilever Bin
11	SCREW, SET
12	WPW10308843 Whirlpool Refrigerator Door Compressor
13	TRIM, DOOR SHELF
14	WP489357 Whirlpool Recessed Screw
15	CAP, TRIM END (RIGHT HAND)
15A	WPW10338485 Whirlpool Refrigerator End Cap
16	CADDY, CAN
17	WPW10170540 Whirlpool Screw
