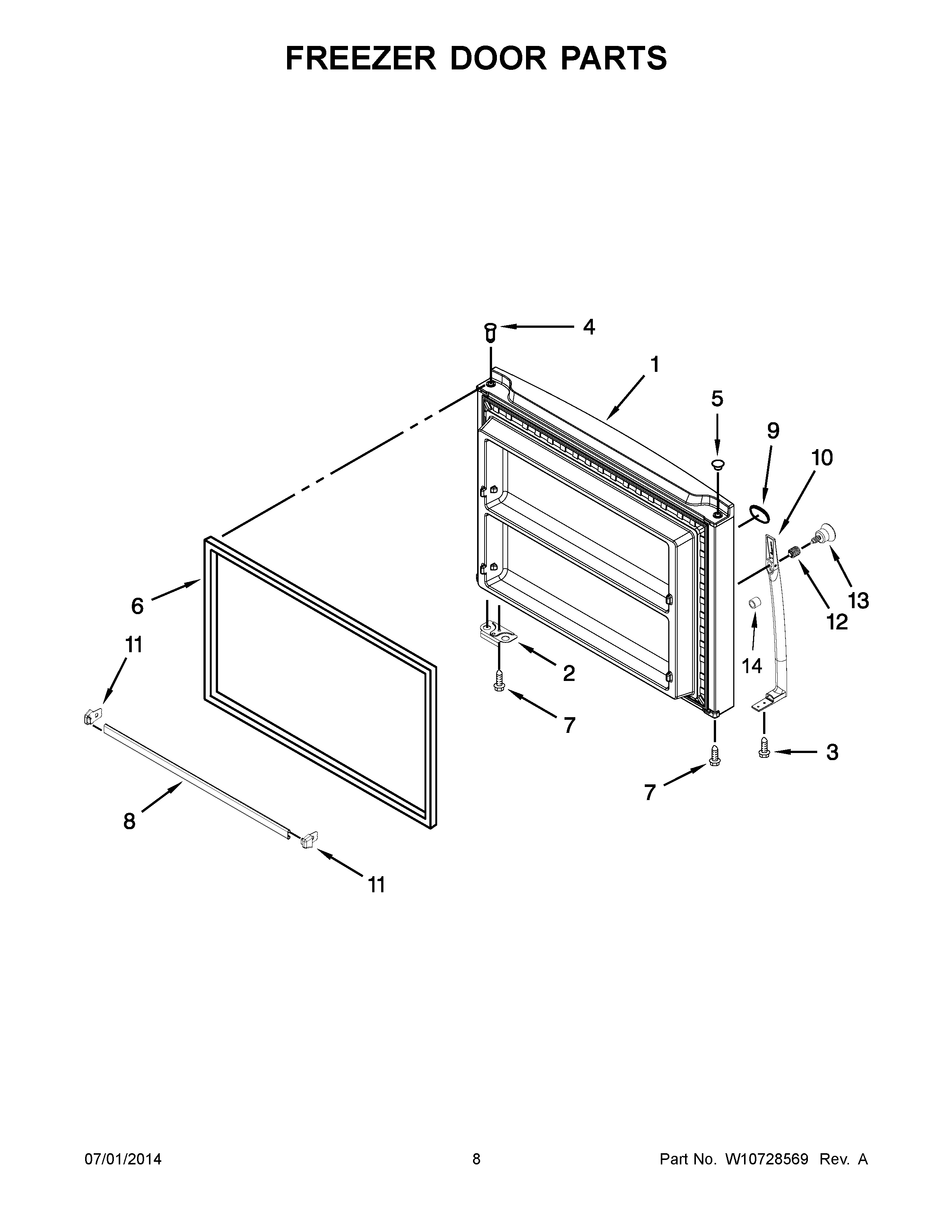

WRT359SFYM02 05 – FREEZER DOOR PARTS

WRT359SFYM02 05 – FREEZER DOOR PARTS

Written by

in

WRT359SFYM02 05 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (STAINLESS)
2W11745278 Whirlpool Bracket
3WP489357 Whirlpool Recessed Screw
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
6W11624958 Whirlpool Refrigerator FIP Gasket
7WP681249 Whirlpool Screw Assembly
8W10469910 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10646617 Whirlpool Refrigerator Handle
11CAP, TRIM END (RIGHT HAND)
11WPW10338485 Whirlpool Refrigerator End Cap
12SCREW, SET
13WPW10170540 Whirlpool Screw
14WPW10511911 Whirlpool Refrigerator Bushing
