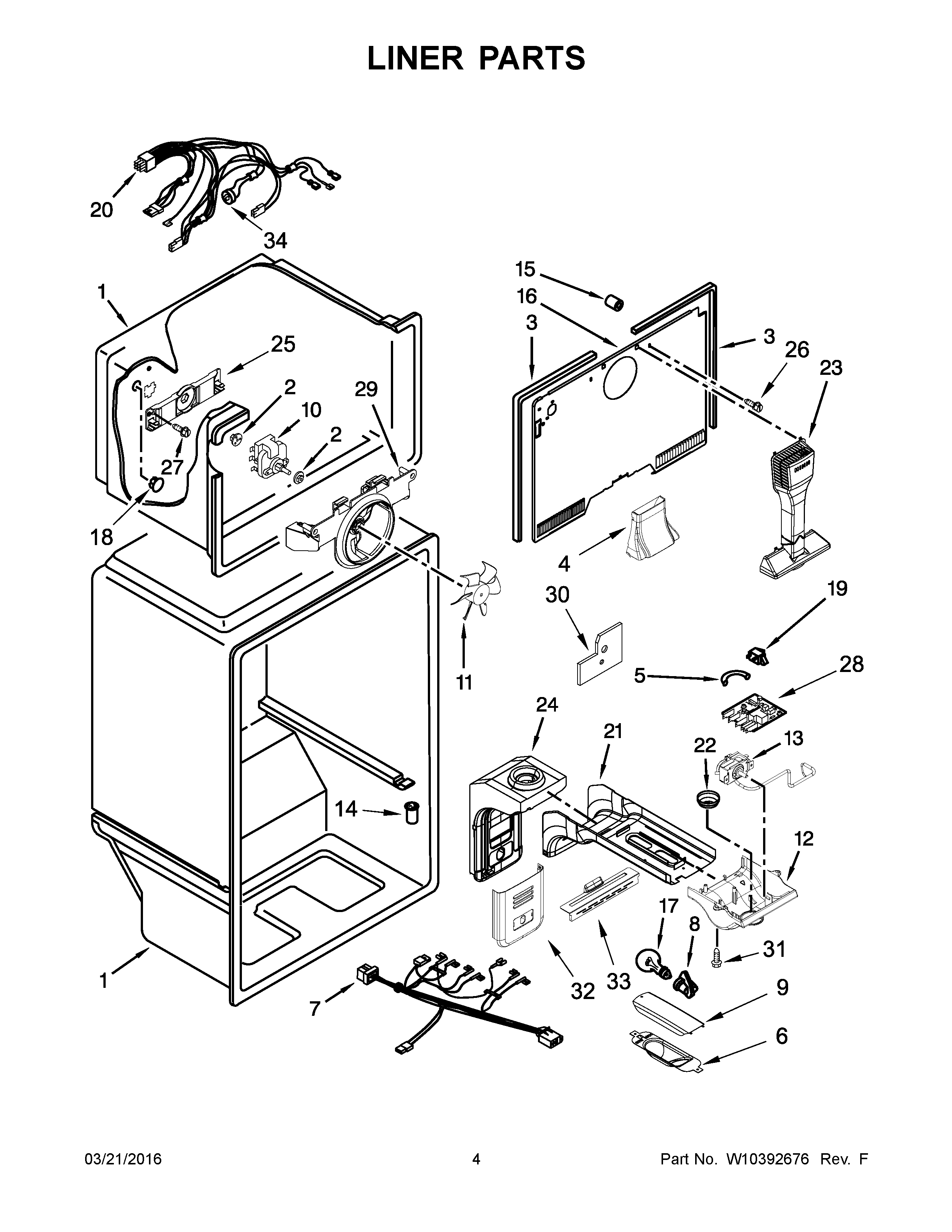

WRT359SFYW00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	ASSEMBLY, TOWER CONNECTION
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10300161 Whirlpool Refrigerator Shield
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10348614 Whirlpool Refrigerator Cover
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP2210509 Whirlpool Refrigerator Tub Valve
15	WP487996 Whirlpool Refrigerator Cap Tube
16	COVER, EVAPORATOR
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	WP941839 Whirlpool Refrigerator Button Plug
19	W11384469 Whirlpool Door Switch
20	W10339627 Whirlpool Refrigerator Wire Harness
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	2254454 Whirlpool Refrigerator Bracket
26	WP489478 Whirlpool Refrigerator Screw
27	WP488163 Whirlpool Refrigerator Screw
28	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
29	W10850162 Whirlpool Refrigerator Orifice
30	WPW10314195 Whirlpool Refrigerator Shield
31	WP489442 Whirlpool Refrigerator Screw
32	CUP, AIR DIFFUSER
33	W10326336 Whirlpool Cover
34	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
