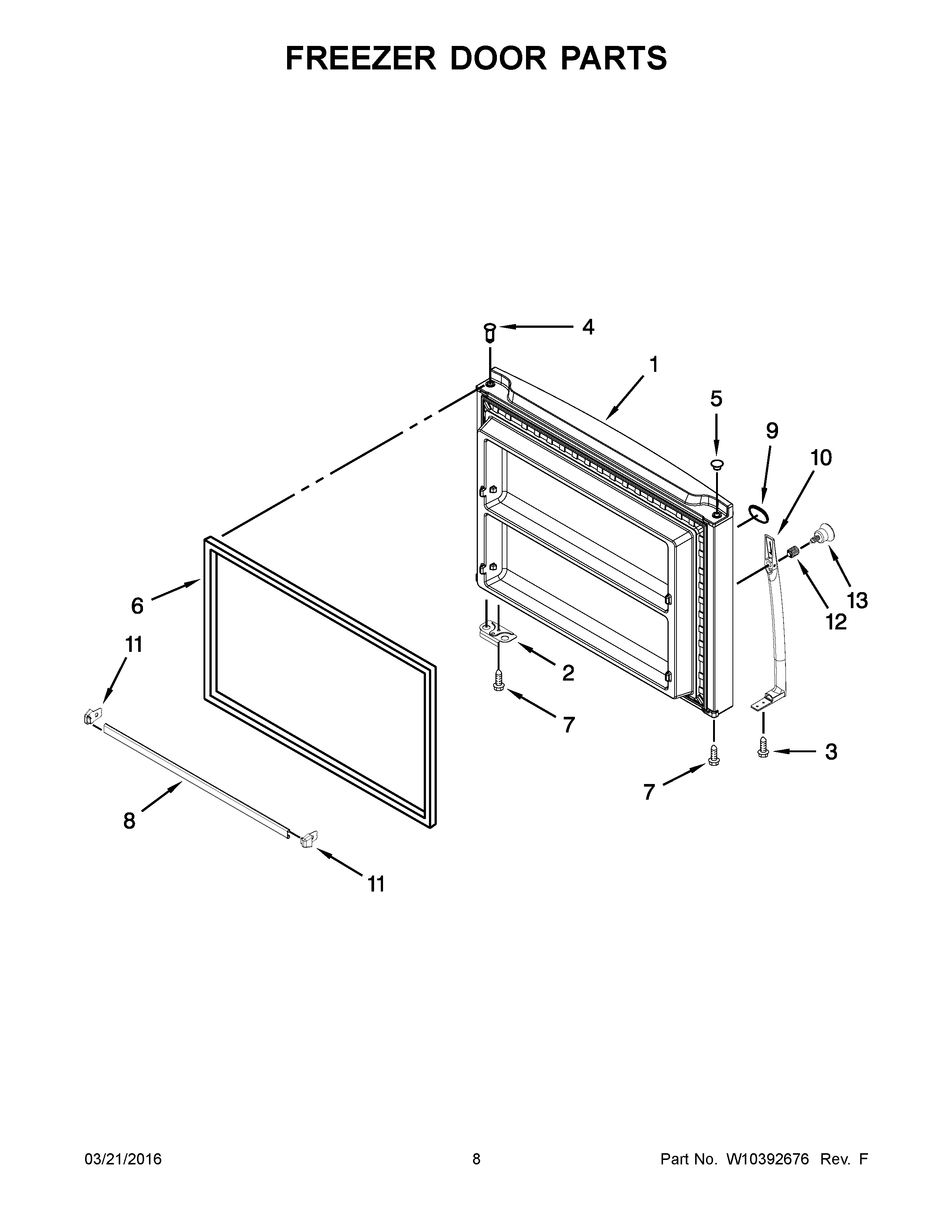

WRT359SFYW00 05 – FREEZER DOOR PARTS

WRT359SFYW00 05 – FREEZER DOOR PARTS

Written by

in

WRT359SFYW00 05 – FREEZER DOOR PARTS

Products

PositionProduct
1CFREEZER DOOR (INCLUDES ILLUS. 4 & 6) (SPARKLE)
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
1AFREEZER DOOR (INCLUDES ILLUS. 4 & 6) (BLACK)
1BFREEZER DOOR (INCLUDES ILLUS. 4 & 6) (STAINLESS)
2W11745278 Whirlpool Bracket
3WP489357 Whirlpool Recessed Screw
4W11189115 Whirlpool Refrigerator Thimble
5AWP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5BPLUG, HINGE SLEEVE (GREY)
6A2177304 Whirlpool Refrigerator FIP Gasket
62159327 Whirlpool Refrigerator Door Gasket
6BW11624958 Whirlpool Refrigerator FIP Gasket
7WP681249 Whirlpool Screw Assembly
8W10469910 Whirlpool Refrigerator Door Trim
9AW11178521 Whirlpool Dishwasher Nameplate
10BWPW10646617 Whirlpool Refrigerator Handle
10WPW10498429 Whirlpool Refrigerator Handle
10AWPW10498430 Whirlpool Refrigerator Handle
11AWPW10338485 Whirlpool Refrigerator End Cap
11CAP, TRIM END (RIGHT HAND)
12SCREW, SET
13WPW10170540 Whirlpool Screw
