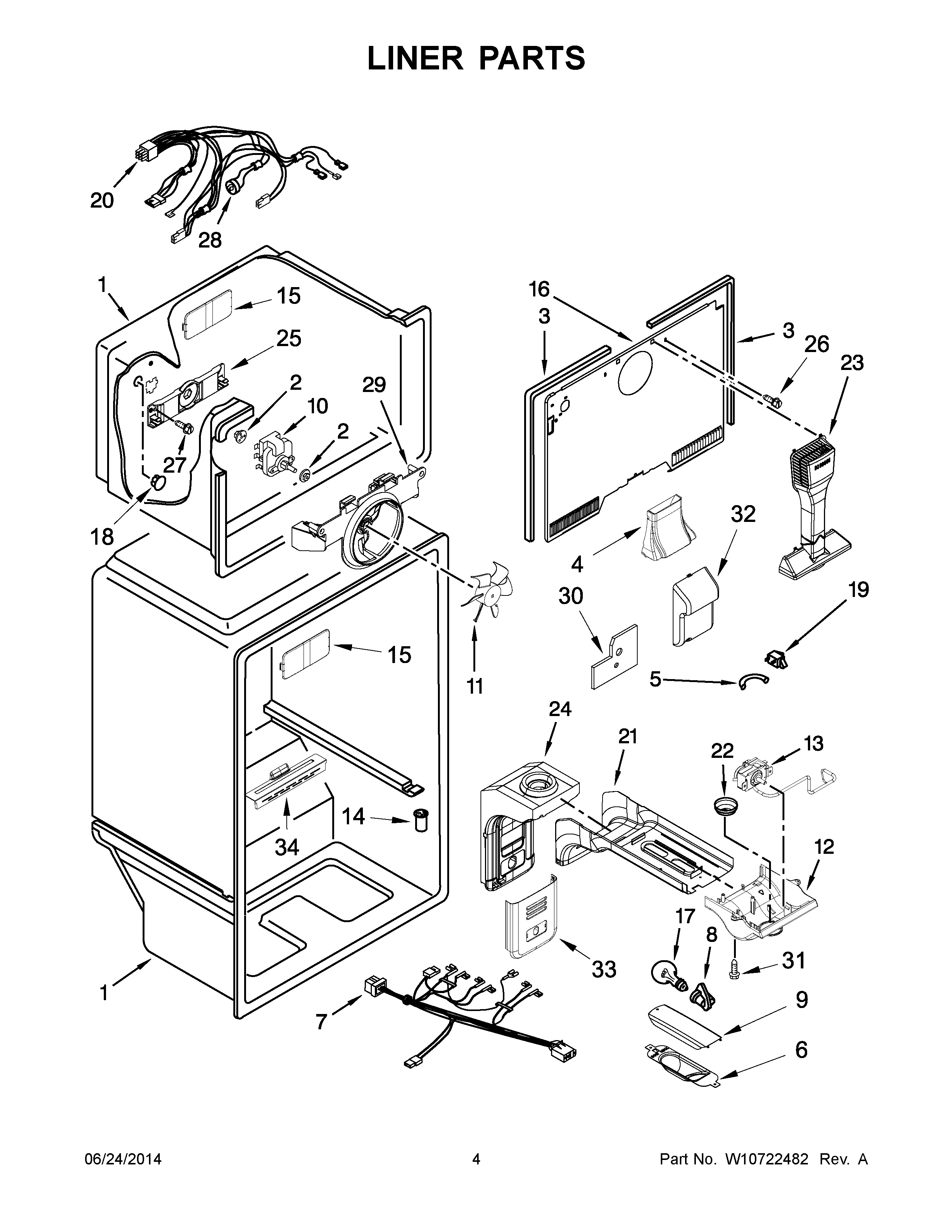

WRT359SFYW01 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4ASSEMBLY, TOWER CONNECTION
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10300161 Whirlpool Refrigerator Shield
7W10318068 Whirlpool Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10348614 Whirlpool Refrigerator Cover
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316941 Whirlpool Refrigerator Control Box
13WPW10584888 Whirlpool Refrigerator Thermostat
14WP2210509 Whirlpool Refrigerator Tub Valve
15W10336009 Whirlpool Refrigerator Cover
16COVER, EVAPORATOR
17W10887190 Whirlpool Refrigerator Light Bulb
18WP941839 Whirlpool Refrigerator Button Plug
19W11384469 Whirlpool Door Switch
20W10339627 Whirlpool Refrigerator Wire Harness
21WPW10305175 Whirlpool Refrigerator Cover
22KNOB
23TOWER, AIR
24ASSEMBLY, AIR DIFFUSER
252254454 Whirlpool Refrigerator Bracket
26WP489478 Whirlpool Refrigerator Screw
27WP488163 Whirlpool Refrigerator Screw
28WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
29W10850162 Whirlpool Refrigerator Orifice
30WPW10314195 Whirlpool Refrigerator Shield
31WP489442 Whirlpool Refrigerator Screw
32WPW10339203 Whirlpool Refrigerator Tube Cover
33CUP, AIR DIFFUSER
34W10326336 Whirlpool Cover
