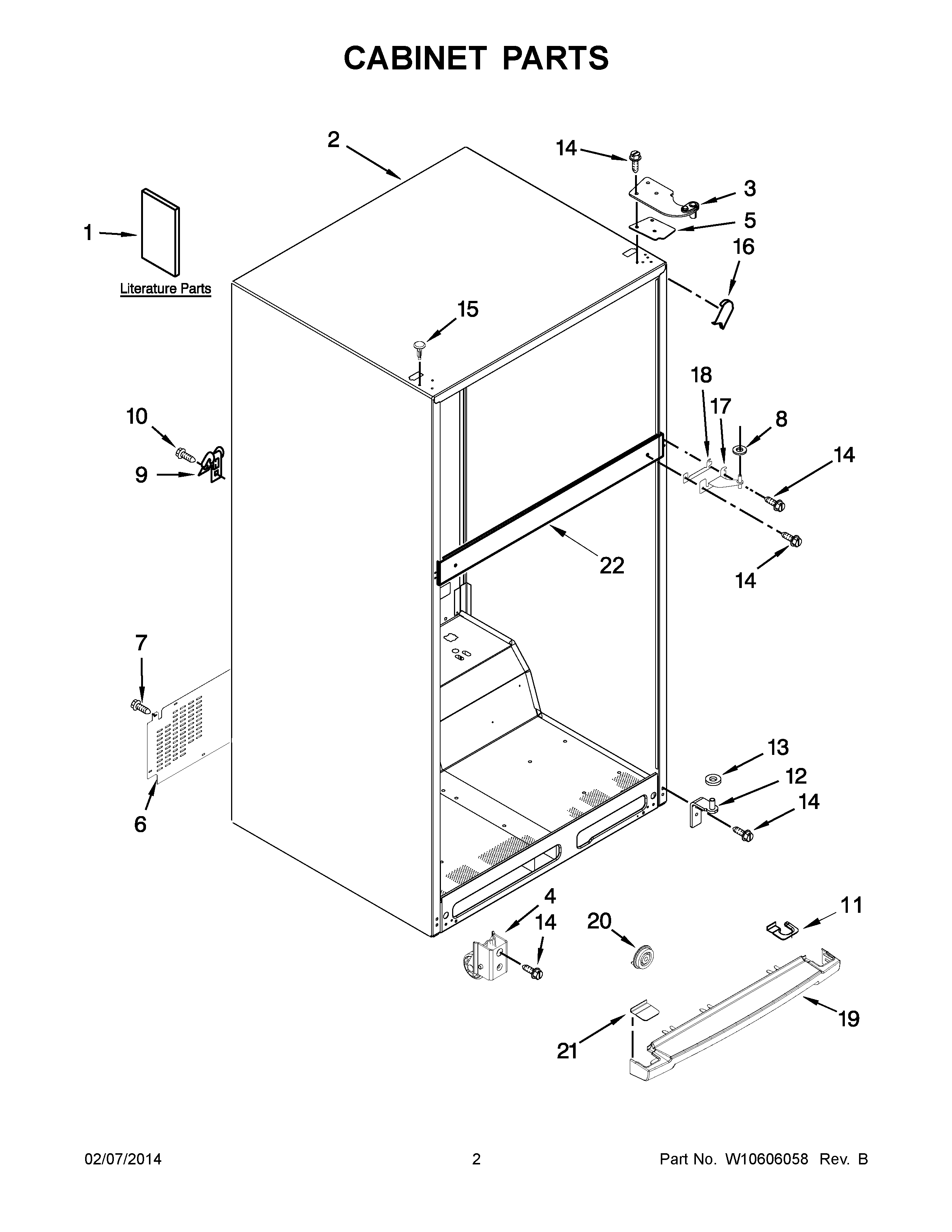

WRT371SZBB00 02 – CABINET PARTS

WRT371SZBB00 02 – CABINET PARTS

Written by

in

WRT371SZBB00 02 – CABINET PARTS

Products

PositionProduct
1SERVICE AND WIRING SHEET
1USE AND CARE GUIDE
1ENERGY LABEL
3WPW10300065 Whirlpool Refrigerator Door Hinge
4W10849386 Whirlpool Refrigerator CAB Roller
5W10883637 Whirlpool Refrigerator Hinge Shim
6WPW10384414 Whirlpool Refrigerator Unit Cover
7WP488729 Whirlpool Refrigerator Door Screw
8WP489467 Whirlpool Hinge Shim
9549193 Whirlpool Refrigerator Power Clamp
10WP489442 Whirlpool Refrigerator Screw
11W10381059 Whirlpool Refrigerator End Cap – GRL
11WPL W10381060
11WPL W10381064
12WP2254473 Whirlpool Refrigerator Door Hinge
13WP487576 Whirlpool Washer
14WP489497 Whirlpool Screw
15WPW10520307 Whirlpool Refrigerator Replacement Plug Button
15WPW10520304 Whirlpool Refrigerator Button Plug
15WPW10520305 Whirlpool Refrigerator Button Plug
16W11252732 Whirlpool Refrigerator Filler
16W10851579 Whirlpool Refrigerator Filler
16WPW10283959 Whirlpool Refrigerator Filler
17WP2254618 Whirlpool Center Door Hinge
18WP2183852 Whirlpool Refrigerator Shim
19WPW10353939 Whirlpool Refrigerator Grille
19WPW10353941 Whirlpool Refrigerator Grille
19WPW10300129 Whirlpool Refrigerator Grille
20W10331226 Whirlpool Refrigerator Clip
21WPW10339257 Whirlpool Refrigerator Toe Grille Cover
21W10353930 Whirlpool Refrigerator Grill End Cap
21WPW10353932 Whirlpool Refrigerator Grille Endcap
22CABINET (NOT A SERVICEABLE PART)
