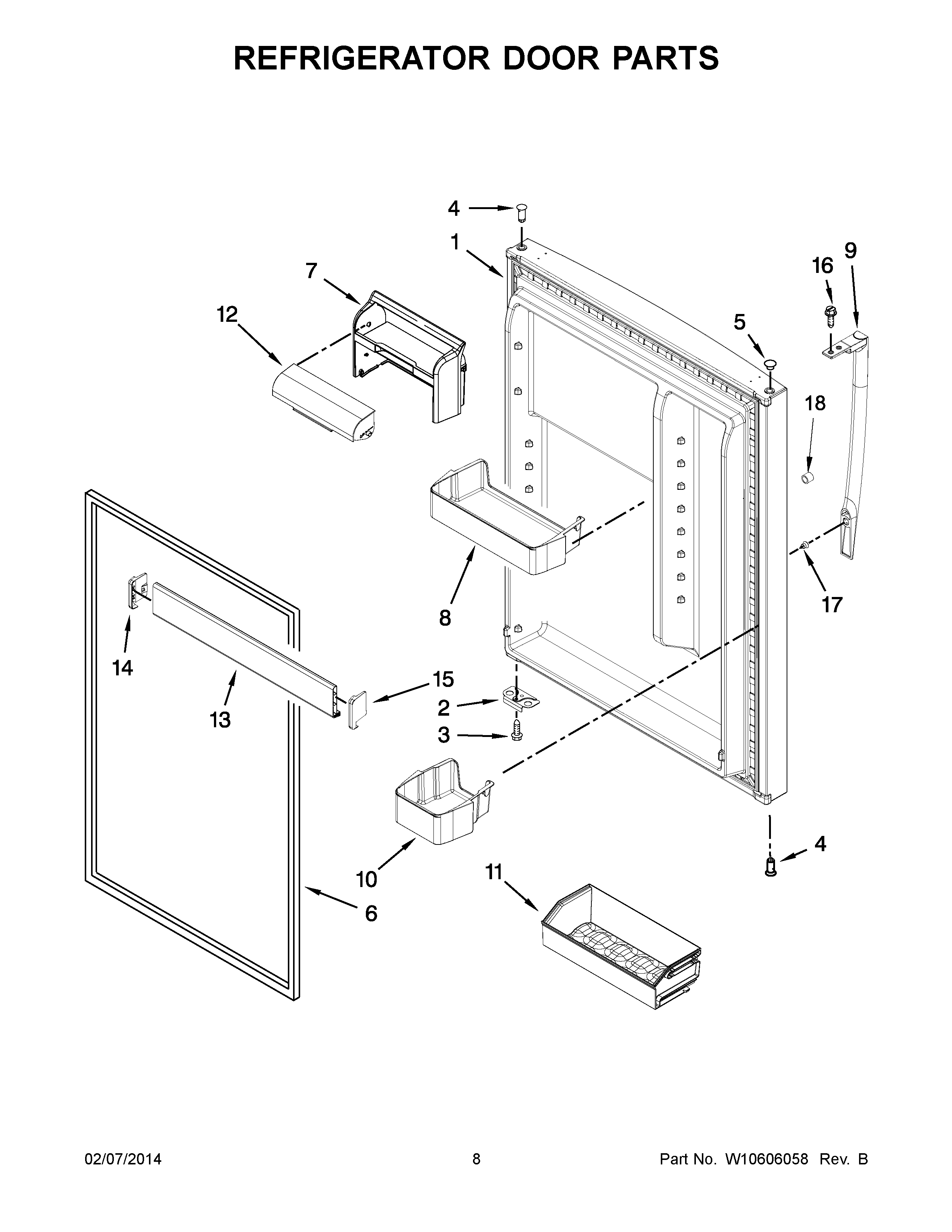

WRT371SZBB00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (SPARKLE STEEL)
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (BLACK)
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (WHITE)
1	LW10576489 Whirlpool Door FIP
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11189115 Whirlpool Refrigerator Thimble
5	PLUG, HINGE SLEEVE (GREY)
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
6	W10249195 Whirlpool Refrigerator Door Gasket
6	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	2159061 Whirlpool Refrigerator Door Gasket
7	HOUSING, COMPARTMENT
8	WPW10308868 Whirlpool Refrigerator Door Bin
9	WPW10498430 Whirlpool Refrigerator Handle
9	WPW10498429 Whirlpool Refrigerator Handle
9	WPW10646617 Whirlpool Refrigerator Handle
10	WPW10308869 Whirlpool Door Bin
11	CADDY, CAN
12	WPW10308843 Whirlpool Refrigerator Door Compressor
13	WPW10469911 Whirlpool Refrigerator Door Trim
14	WPW10338485 Whirlpool Refrigerator End Cap
15	CAP, TRIM END (RIGHT HAND)
16	WP489357 Whirlpool Recessed Screw
17	WPW10170540 Whirlpool Screw
18	WPW10511911 Whirlpool Refrigerator Bushing
