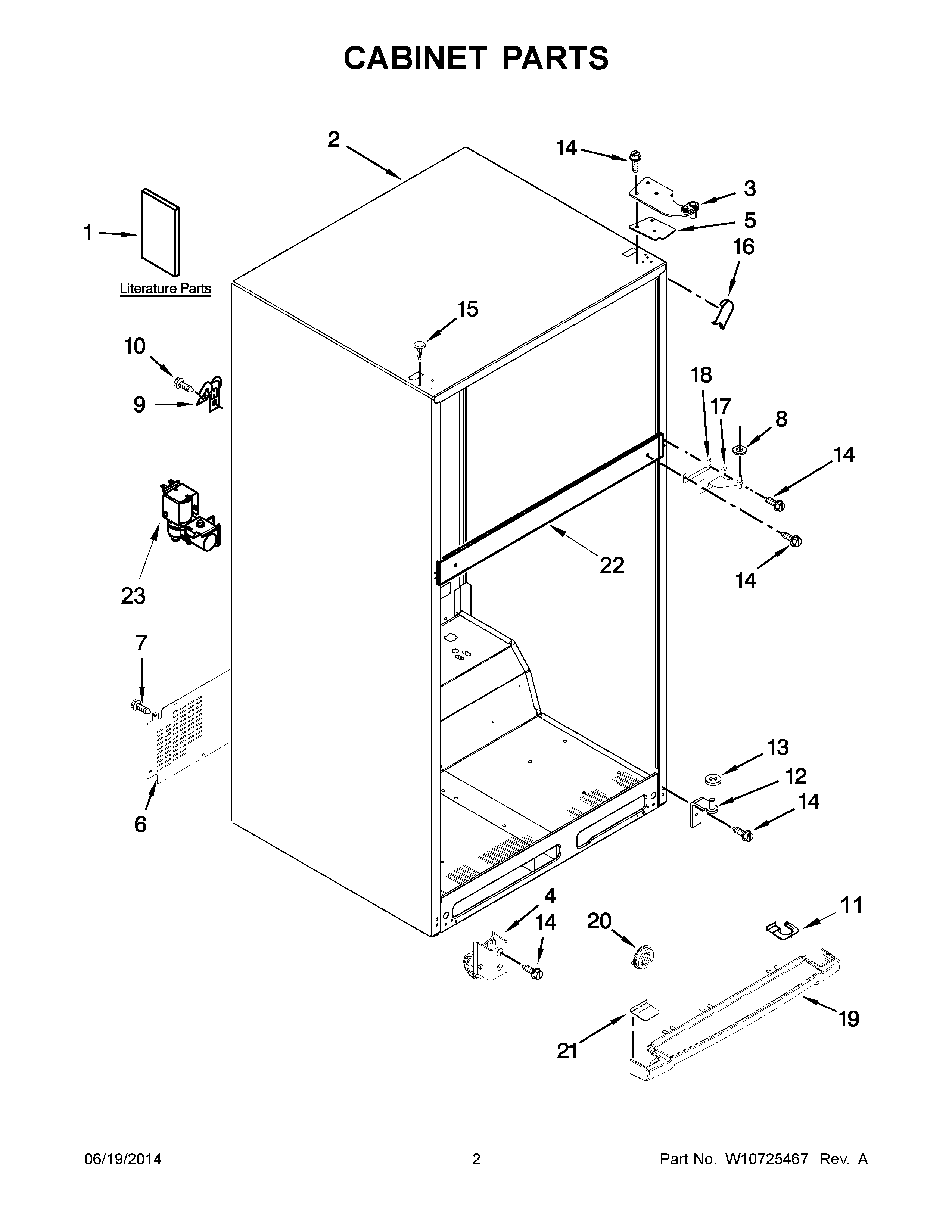

WRT371SZBW01 02 – CABINET PARTS

Products

Position	Product
1	SERVICE AND WIRING SHEET
1	USE AND CARE GUIDE
1	ENERGY LABEL
3	WPW10300065 Whirlpool Refrigerator Door Hinge
4	W10849386 Whirlpool Refrigerator CAB Roller
5	W10883637 Whirlpool Refrigerator Hinge Shim
6	WPW10384414 Whirlpool Refrigerator Unit Cover
7	WP488729 Whirlpool Refrigerator Door Screw
8	WP489467 Whirlpool Hinge Shim
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489442 Whirlpool Refrigerator Screw
11	W10381059 Whirlpool Refrigerator End Cap – GRL
11	WPL W10381060
11	WPL W10381064
12	WP2254473 Whirlpool Refrigerator Door Hinge
13	WP487576 Whirlpool Washer
14	WP489497 Whirlpool Screw
15	WPW10520304 Whirlpool Refrigerator Button Plug
15	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
15	WPW10520305 Whirlpool Refrigerator Button Plug
16	W11252732 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
16	W10851579 Whirlpool Refrigerator Filler
17	WP2254618 Whirlpool Center Door Hinge
18	WP2183852 Whirlpool Refrigerator Shim
19	WPW10300129 Whirlpool Refrigerator Grille
19	WPW10353941 Whirlpool Refrigerator Grille
19	WPW10353939 Whirlpool Refrigerator Grille
20	W10331226 Whirlpool Refrigerator Clip
21	WPW10353932 Whirlpool Refrigerator Grille Endcap
21	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
21	W10353930 Whirlpool Refrigerator Grill End Cap
22	CABINET (NOT A SERVICEABLE PART)
23	WPW10279909 Whirlpool Refrigerator Inlet Valve
