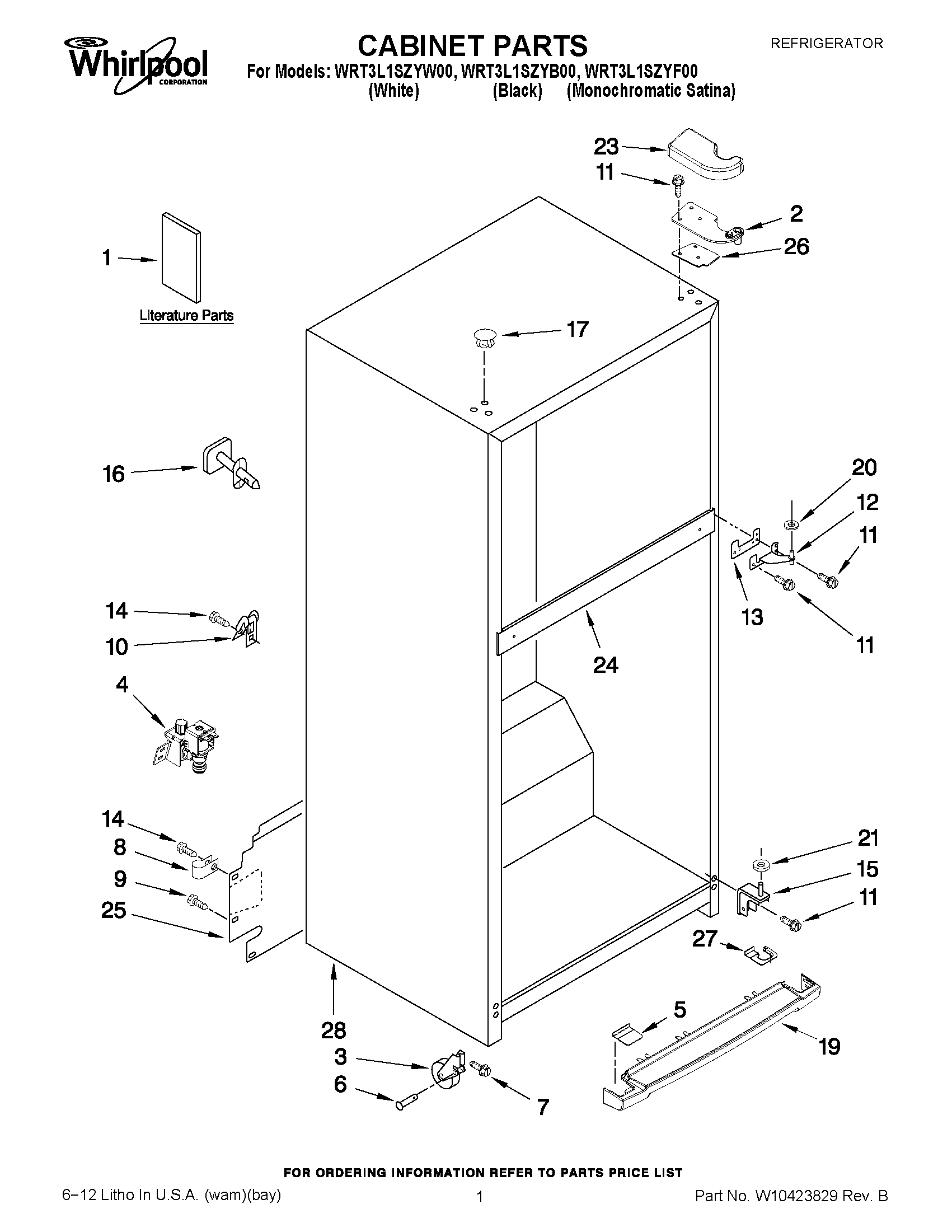

WRT3L1SZYB00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1SERVICE AND WIRING SHEET
1USE & CARE GUIDE
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WPW10300065 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WPW10279909 Whirlpool Refrigerator Inlet Valve
5WPW10353932 Whirlpool Refrigerator Grille Endcap
5W10353930 Whirlpool Refrigerator Grill End Cap
5WPW10339257 Whirlpool Refrigerator Toe Grille Cover
6W11594405 Whirlpool Axle
7W10850698 Whirlpool Refrigerator Screw
8WP488878 Whirlpool Refrigerator Tube Clamp
9WP489427 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183852 Whirlpool Refrigerator Shim
14WP489464 Whirlpool Refrigerator Screw
15WP2254473 Whirlpool Refrigerator Door Hinge
17WP2151652 Whirlpool Refrigerator Button Plug
17WPW10520307 Whirlpool Refrigerator Replacement Plug Button
17WP2183998 Whirlpool Refrigerator Button Plug
19WPW10353941 Whirlpool Refrigerator Grille
19WPW10300129 Whirlpool Refrigerator Grille
19WPW10353939 Whirlpool Refrigerator Grille
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
23W10331560A Whirlpool Refrigerator Cover
23W10353950A Whirlpool Refrigerator Cover
23COVER, HINGE (WHITE LS)
23W10353947A Whirlpool Refrigerator Cover
23W10353948A Whirlpool Refrigerator Cover
23W10353945A Whirlpool Refrigerator Cover
25WPW10384414 Whirlpool Refrigerator Unit Cover
26W10883637 Whirlpool Refrigerator Hinge Shim
27WPL W10381064
27WPL W10381060
27W10381059 Whirlpool Refrigerator End Cap – GRL
28CABINET (NOT A SERVICEABLE PART)
