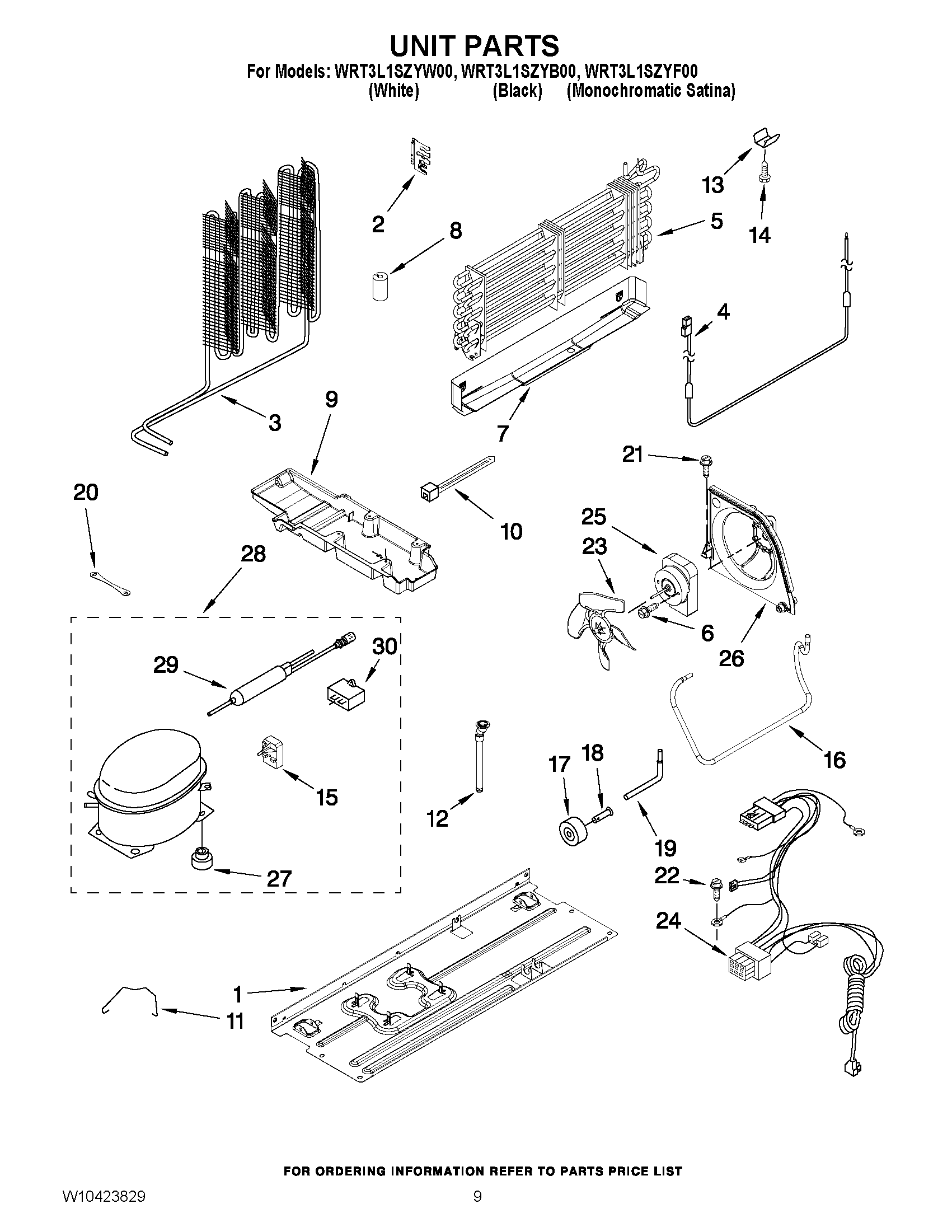

WRT3L1SZYB00 06 – UNIT PARTS

Products

Position	Product
NI	WPW10662129 Whirlpool Refrigerator Run Capacitor
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	W11396825 Whirlpool Plate
2	W10314197 Whirlpool Refrigerator Bracket
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10852725 Whirlpool Refrigerator Grommet
9	W10890667 Whirlpool Refrigerator Drip Pan
10	WPW10339879 Whirlpool Wire Tie
11	W11661170 Whirlpool Clip
12	W11190084 Whirlpool Refrigerator Drain Tube
13	W10683556 Whirlpool Refrigerator Clip
14	W11544659 Whirlpool Refrigerator Screw
15	WPW10194431 Whirlpool Start Device
16	TUBE, SUCTION
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W11676464 Whirlpool Tube
20	W10236396 Whirlpool Refrigerator Strap
21	W10850698 Whirlpool Refrigerator Screw
22	WP489128 Whirlpool Refrigerator Screw
23	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
24	W11625681 Whirlpool Refrigerator Wire Harness
25	WP2188874 Whirlpool Refrigerator Condenser Motor
26	WP2315541 Whirlpool Refrigerator Air Baffle
27	WPW10169124 Whirlpool Refrigerator Grommet
27	876811 Whirlpool Grommet
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
