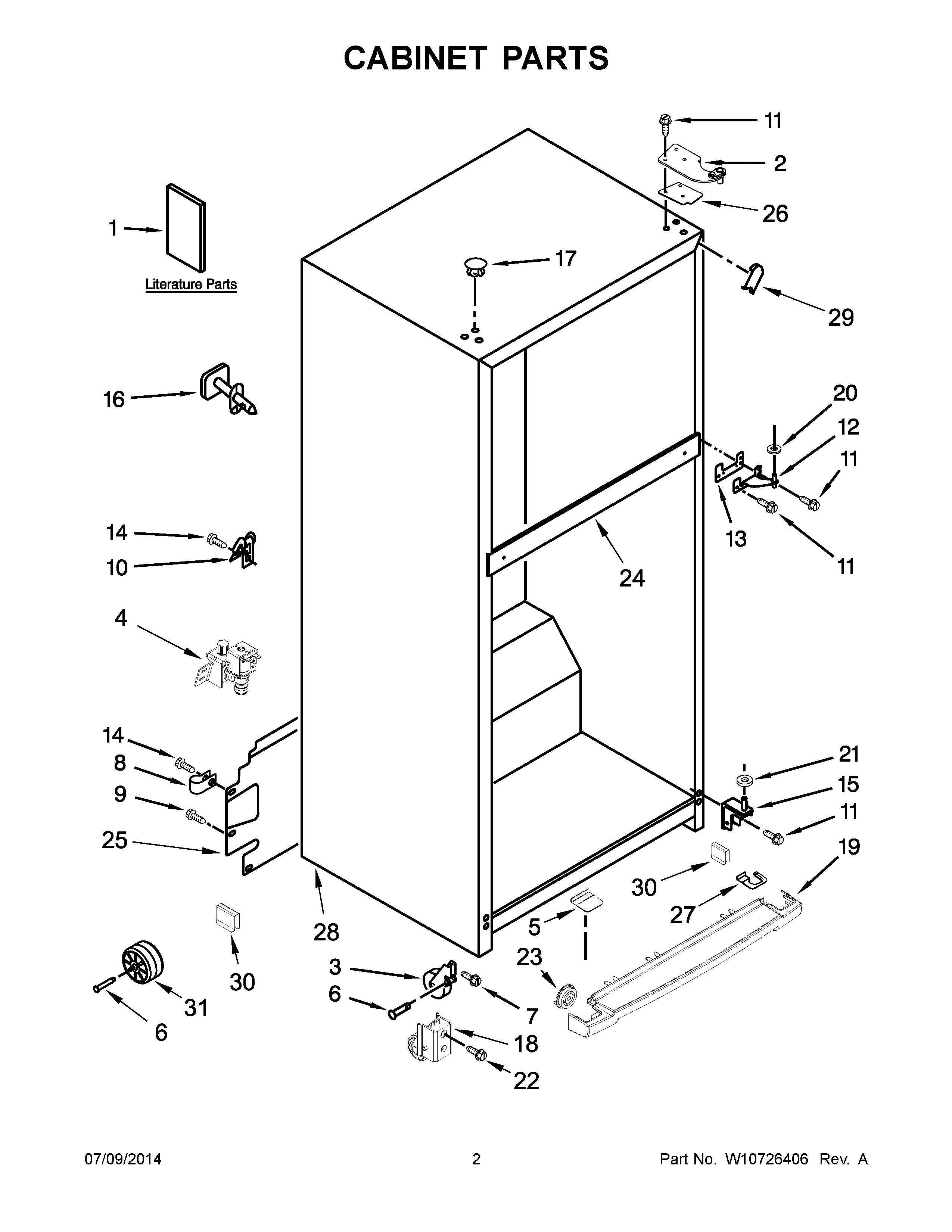

WRT3L1SZYB01 02 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	SERVICE AND WIRING SHEET
1	USE AND CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WPW10279909 Whirlpool Refrigerator Inlet Valve
5	W10353930 Whirlpool Refrigerator Grill End Cap
5	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
6	W11594405 Whirlpool Axle
7	W10850698 Whirlpool Refrigerator Screw
8	W11456069 Whirlpool Refrigerator Clamp
9	WP489427 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489497 Whirlpool Screw
12	WP2254618 Whirlpool Center Door Hinge
13	WP2183852 Whirlpool Refrigerator Shim
14	WP488729 Whirlpool Refrigerator Door Screw
15	WP2254473 Whirlpool Refrigerator Door Hinge
17	WPW10520305 Whirlpool Refrigerator Button Plug
17	WPW10520304 Whirlpool Refrigerator Button Plug
18	W10849386 Whirlpool Refrigerator CAB Roller
19	WPW10300129 Whirlpool Refrigerator Grille
19	WPW10353939 Whirlpool Refrigerator Grille
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
22	BOLT
23	W10331226 Whirlpool Refrigerator Clip
25	WPW10384414 Whirlpool Refrigerator Unit Cover
26	W10883637 Whirlpool Refrigerator Hinge Shim
27	WPL W10381060
27	W10381059 Whirlpool Refrigerator End Cap – GRL
28	CABINET (NOT A SERVICEABLE PART)
29	WPW10283959 Whirlpool Refrigerator Filler
29	W11252732 Whirlpool Refrigerator Filler
30	WP2174706 Whirlpool Refrigerator Pin Hitch
31	WPW10475495 Whirlpool Roller Assembly
