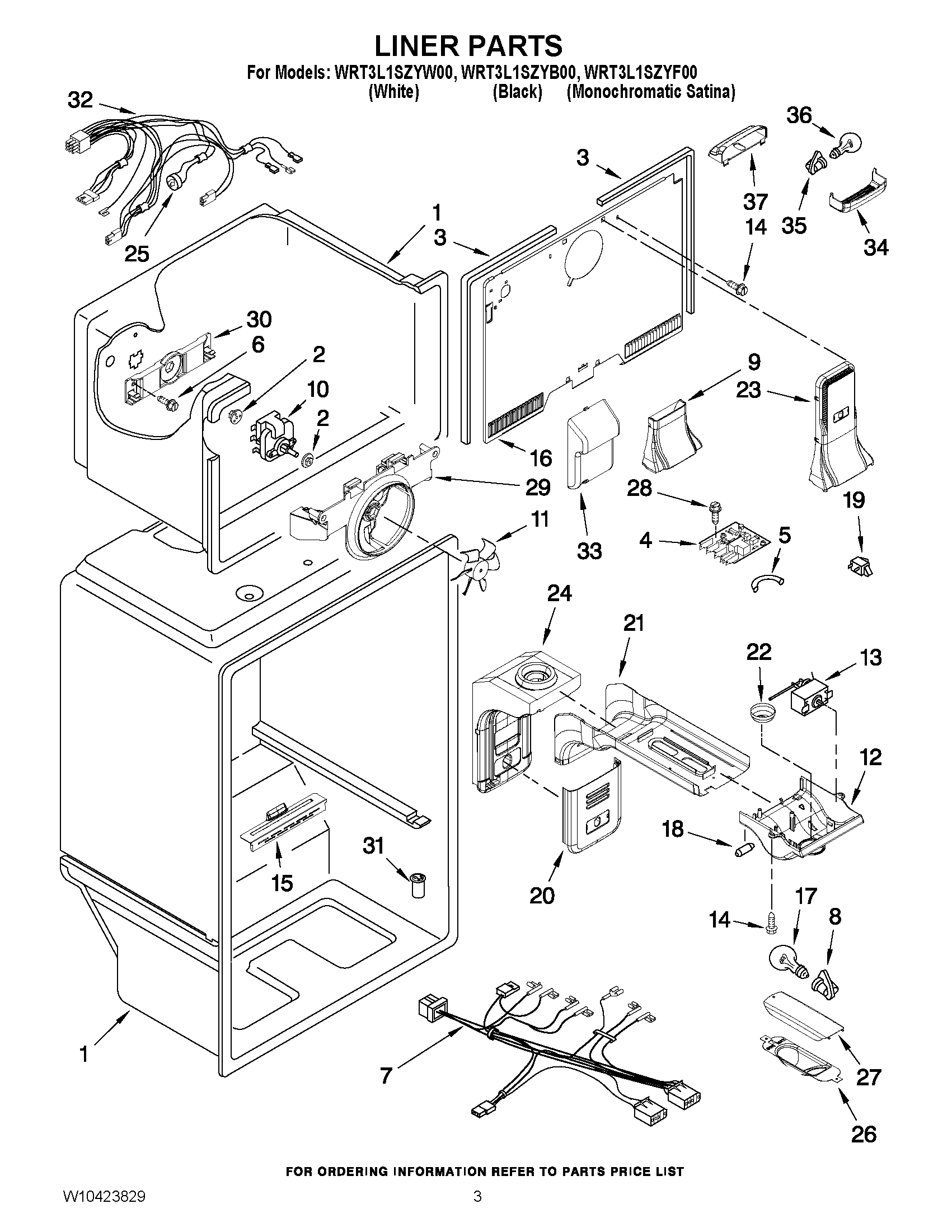

WRT3L1SZYW00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
5	WP2196003 Whirlpool Refrigerator Bar Riser
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	ASSEMBLY, TOWER CONNECTION
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
15	W10345375 Whirlpool Cover Assembly
16	W10385132 Whirlpool Refrigerator Evaporator Cover
17	W10887190 Whirlpool Refrigerator Light Bulb
19	W11384469 Whirlpool Door Switch
20	CUP, AIR DIFFUSER
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
26	W10300161 Whirlpool Refrigerator Shield
27	WPW10348614 Whirlpool Refrigerator Cover
28	WP488163 Whirlpool Refrigerator Screw
29	W10850162 Whirlpool Refrigerator Orifice
30	2254454 Whirlpool Refrigerator Bracket
31	WP2210509 Whirlpool Refrigerator Tub Valve
32	W11161901 Whirlpool Refrigerator Wire Harness
33	WPW10339203 Whirlpool Refrigerator Tube Cover
34	WPW10313918 Whirlpool Refrigerator Light Lens
35	W11661565 Whirlpool Refrigerator Socket
36	W11518235 Whirlpool LED Light
37	WPW10313917 Whirlpool Refrigerator Housing
